Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

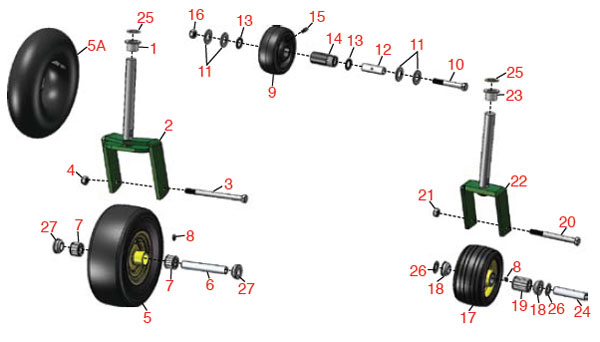

Front Wheel Assembly - Fits 60", 72" & 76" Decks
1 RM83541 M83541 Bushing - Flanged 4
2 RAM101016 AM101016 Fork - Front Caster 2
3 R19M7841 19M7841 Bolt - Hex Hd M12 x 170 2
4 R14M7401 14M7401 Locknut - 12mm x 1.75 2
5 R548545 M90985 Tire - 11-4.00x5 (2PLY) Carlisle Rib 2
5 RCT5120111 M90989 Tire - 11x4.00-5 Nhs (4 Ply) Carlisle Smooth 2
5A RM90984 M90984 Tube - 4.10 x 5 2
5 R500550 AM101589 Tire - w/Wheel Assy Pneumatic 2
6 R500551 R&R Only Bushing - Flanged 4
7 R500552 R&R Only Bearing - 3/4 x 1-3/8 x 1 4
7 RJD7945 JD7945 Bearing - Caster Wheel 4
8 R302-5 R&R Only Fitting - Grease 2
27 RM84516 M84516 Spacer - Caster Wheel 2

Rear Wheel Assembly - Fits 60" & 72" Decks
9 RAM101029 AM101029 Wheel - Rear Caster Assy 2
9 RAM104126 AM104126 Use RAM101029 2
10 R19M7819 19M7819 Bolt - Hex Hd M12 x 90 2
11 RM88385 M88385 Washer - Thrust Caster Whl 4
12 RM87636 M87636 Spacer - Caster Wheel 2
13 RM88384 M88384 Retainer - Seal Caster Whl 4
14 RAM100638 AM100638 Bearing - w/Sleeve 2
15 RM87570 M87570 Fitting - Grease 2
16 R14M7401 14M7401 Locknut - 12mm x 1.75 2

Rear Wheel Assembly - Fits 76" Decks
17 RM74566 M74566 Tire - w/Wheel Assy 2
18 R500551 R&R Only Bushing - Flanged 4
19 R500553 R&R Only Bearing 2
20 RM74567 M74567 Bolt - Hex Hd 1/2-13 x 5 GR5 2
21 R32146-13 M74568 Locknut - 1/2-13 2
22 RM74564 M74564 Caster Fork - 76 Rear Whl 2
23 RM83541 M83541 Bushing - Flanged 4
24 RM74565 M74565 Bushing - Caster Wheel 2
25 RPT8902 PT8902 Use R24H1275
25 R24H1275 24H1275 Washer - Caster Fork 4
26 RPT8900 PT8900 Washer - Rear Caster Wheel 4
