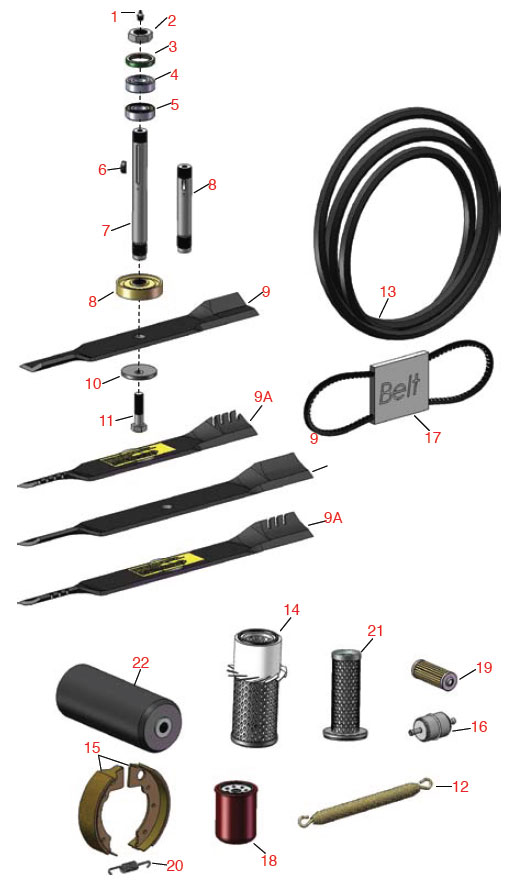

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R471219 JD7759 Zerk - Grease 3
2 RM83539 M83539 Locknut - 1-14 3
3 R253-133 M85699 Seal - Oil 3
4 RM88251 M88251 Bearing - Upper Spindle 3
5 RM88252 M88252 Bearing - Lower Spindle 3
6 R26H82 26H82 Key - Woodruff Spindle 3
7 RAM100919 AM100919 Use 1 Ea. RM88148 - RM88149
7 RM88149 M88149 Shaft - Spindle 60/72 Decks 3
7 RM70581 M70581 Shaft - Spindle 76 Deck 3
8 RM70582 M70582 Hub - Spindle Shaft 76 Deck 3
8 RM88148 M88148 Hub - Spindle Shaft 60-72 3
9 RAM100538 AM100538 Rotary Blade - 60 Cut 3
9 RAM102401 AM102401 Rotary Blade - 72 Cut 3
9 RM141785 M141785 Use RAM100538 3
9 RM141786 M141786 Use RAM102401 3
9 RM70600 M70600 Use RAM102688 3
9 RM87622 M87622 Use RAM100538 3
9A RAM100538M R&R Only Rotary Blade - Mulcher 60 Deck 3
9A RAM102401M R&R Only Blade - Mulcher 72 Deck Magnum 3
10 RM83665 M83665 Washer - Thrust 3
11 R19M7343 19M7343 Bolt - Blade 3
12 RM88294 M88294 Spring - Extension Idler Arm
Tech Note: Fits 50", 60" & 72" Decks
 3
12 RM119532 M119532 Use RM88294 3
13 RM120381 M87233 Belt - Deck 60 1
13 RM87373 M87373 Belt - Deck 72 1
13 RAM102190 AM102190 Belt - SET/2 76 Deck 1
13 RM91365 M91365 Belt - Blade to Blade 76 2
14 RAM108243 AM108243 Filter - Air Primary 1
15 RAM116982 AM116982 Shoe - Brake 4
16 R18-1520 AM876035 Filter - Fuel 1
17 RM800347 M800347 Belt - V Water Pump 1
18 RM801002 M801002 Filter - Engine Oil 1
19 RM801101 M801101 Filter - Fuel 1
20 RM84943 M84943 Spring - Brake 2
21 RM94734 M94734 Filter - Air Secondary 1
22 RAM39886 AM39886 Roller - Front Deck
