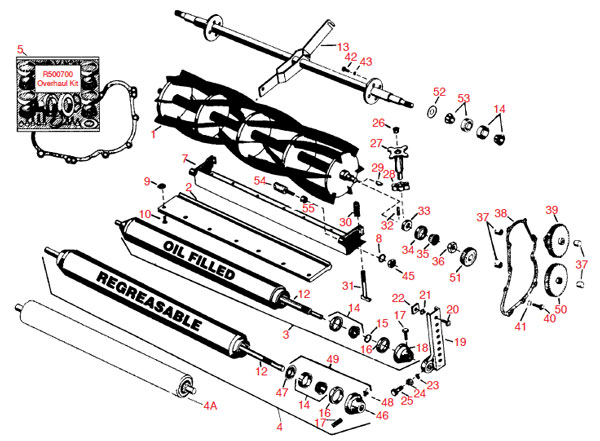

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed
1 R502671 502671 Reel - 6 Blade 1
1 R502672 R&R Only Reel - 8 Blade 1
1 R502675 502675 Reel - 10 Blade 1

R&R Bedknives Available, Lifetime Guaranteed
2 R101250 325163 Bedknife - Single Lip 1/2 1
2 R101250L 325163 Bedknife - Single Lip Low Cut 7/16 1
2 R101251 315834 Bedknife - Double Lip 1/2 1
2 R101251L R&R Only Bedknife - Double Lip Low Cut

R&R Rollers Available
3 R113897 113897 Roller - Smooth Tubular Steel Oil Filled
4 R700500 Roller - Smooth Tubular Steel Regreasable
4 R113897 132506 Roller - Smooth Tubular Steel Oil Filled
4 R132506 132506 Use R113897
5 R1013902 R&R Only Roller - Smooth UHMW Polyethylene

R&R Overhaul Kits Availble
6 R500700 R&R Only Overhaul Kit - Fits Hyd
7 R100140 R&R Only Overhaul Kit - Oil Filled Roller

Other Parts Availble
8 R130304 130304 Backing Bar - Bed Knife 2
9 R447224 447224 Washer - Lock 5/8 Int.Star Z 2
10 R101271 445684 Nut - Bedknife 7
11 R101270 402698 Screw - Bedknife 7
12 R328058 328058 Shaft - Roller 1
13 R122038 122038 Axle - Main Assy. Fits HF-15 1
14 R500534 500534 Bearing - With Cup 4
15 R459007 459007 O-Ring - Roller 2
16 R328062 328062 Seal - Roller 2
17 R412063 412063 Screw - Sq. Hd. Set 2
18 R500574 500574 Collar - Roller 2
19 R500763 500763 Bracket - Roller LH 1
20 R500764 500764 Bracket - Roller RH 1
21 R400266 400266 Bolt - Hex Hd 3/8-16 x 1-1/2 2
22 R3254-6 446142 Washer - Lock 3/8 2
23 R444510 444510 Nut - 3/8-16 Sq. 2
24 R446154 446154 Washer - Lock 1/2 /// R3253-7 2
25 R443818 443818 Nut - 1/2-13 Hex Jam Zinc 2
26 R412003 412003 Screw - 1/2-13x1-1/2 Sq Hd 2
27 R312794 312794 Plug - Adj. Handle 2
28 R500548 500548 Handle - Adjusting 2
29 R315964 315964 Spring - Friction 2
30 R315966 315966 Spring - Adjusting 2
31 R315965 315965 Screw - Adjusting Fairway 2
32 R315877 315877 Key - Pinion Gear 4
33 R461406 461406 Pin - Roll 2
34 R315872 336781 Seal - Reel 2
35&36 R500711 500711 Bearing - With Cup Reel 2
35 R302755 302755 Cup - Bearing. Reel 2
36 R315914 315914 Bearing - Tapered Cone 2
37 R444742 444742 Nut - 3/4-16 Gripco Cntrloc 2
38 R359875 359875 Bearing - Needle 4
39 R390204 390204 Gasket - Cover (Fits HF-15) 1
40 R162219 162219 Use R131170
40 R131170 131170 Gear - Int (Fits HF-15) 1
41 R400190 400190 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5 8
42 R446136 446136 Washer - Lock 5/16 Zinc 8
43 R400406 400406 Bolt - Hex Hd 1/2-13 x 1-1/4 8
44 R446154 446154 Washer - Lock 1/2 /// R3253-7 8
45 R443828 443828 Nut - 5/8 - 18 Hex 2
46 R700501 R&R Only Roller End - Regreasable 2
47 R700502 R&R Only Retainer - Grease 2
48 R302-5 R&R Only Fitting - Grease 2
49 R700505 R&R Only Conversion Kit - Roller
50 R162220 162220 Gear - Idler w/Shaft 1
51 R336825 336825 Gear - Pinion Fits HF-15 1
52 R359828 359828 Ring - Nilos 2
53 R502522 502522 Bearing - Tapered Cup And Cone 2
54 R315909 315909 Stud - Bedknife Backing 2
55 R545723 545723 Bushing - For Backing Stud 2
56 R500264 500264 Stud - With Bushing 2
57 R101399 Overhaul Kit - UHMW 2 Pc Roller
58 R1503470 Seal - Inner Wiper
59 R1503230 Washer - Thrust Outer Keyed
60 R1503471 Washer - Thrust SAE660 Bronze
61 R150333 Washer - Flat Keyed Outer SS
62 R3296-15 Locknut - 3/4-16 Nylon Jam

REPLACES JACOBSEN 132506 SOLID ROLLER PARTS
R100133 Overhaul Kit - Roller
R500534 500534 Bearing - With Cup 2
R339051 339051 Shaft - Roller - Fits 123267 1
R366168 366168 Sleeve - Wear Hardened 2
R338646 338646 Seal - Outer Roller 2
R338647 338647 Seal - Inner Roller 2
R3296-15 445748 Locknut - 3/4-16 Nylon Jam 2
R338645 338645 Deflector - Cup 2
