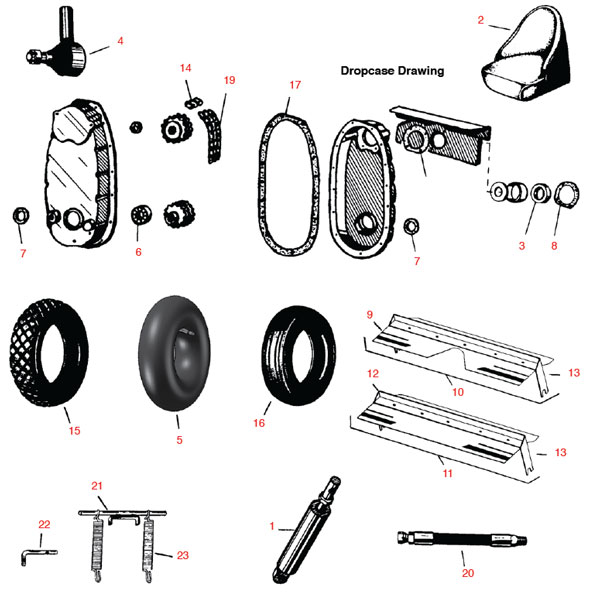

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R111235 111235 Cylinder - Hydraulic Rear Wing 2
1 R126875 126875 Use R337632
1 R126876 126876 Use R337631
1 R332253 332253 Use R130794
1 R130794 130794 Cylinder - Hydraulic Outrigger 2
1 R337631 337631 Cylinder - Hydraulic 1
1 R337632 337632 Cylinder - Hydraulic 2
2 R116405B R&R Only Cushion - Back Assy 1
2 R116405C R&R Only Cushion - Bottom 1
3 R319188 319188 Seal - Oil 1
4 R153196 153196 End - Tie Rod RH 3
4 R153197 153197 End - Tie Rod LH 3
5 R314644 314644 Tube - 6.70-15 2
5 R353172 353172 Tube - 7.50 x 16 Traction 2
6 R319180 319180 Bearing 2
7 R319181 319181 Seal - Grease 2
7 R336090 336090 Seal 2
8 R319183 319183 Gasket - 2
8 R336101 336101 Gasket - 2
9 R126110 R&R Only Shield - Front Cover
10 R126113 126113 Shield - Front Deflect Assy
11 R126114 126114 Shield - Center/Rear Deflector
12 R126115 R&R Only Shield - Center / Rear
13 R126115B R&R Only Bracket - w/ Hardware
14 R319297 319297 Link - Connecting NO.60-3 1
15 R319487 319487 Tire - Trac. 9.50 x 16 4 Ply 2
15 R353173 353173 Tube - 9.50 x 16 2
16 R323965 323965 Tire - 6.70x15 6PLY Goddyear Rib 2
16 R314644 314644 Tube - 6.70-15 2
16 R342479 342479 Tire - 9.50L x 14 6 Ply Goodyear Rib 2
16 R342480 342480 Tube - 9.50 x 14 Steering 2
17 R331403 331403 Gasket - 1
19 R352954 352954 Drive - Chain
Tech Note: F-20 SN:1601-18000
 1
19 R357735 357735 Drive - Chain
Tech Note: HF-15 All Models
 1
19 R500576 500576 Drive - Chain
Tech Note: Replaces F-10 Hoses
20 R153313 153313 Hose - Rear Wing Lift LH
20 R153314 153314 Hose - Rear Center R Side
20 R155756 155756 Hose - Frt RH Rear Center LH
20 R155757 155757 Hose - Front Ram LH
21 R154210 154210 Bar - Spring Assy 1
22 R344364 344364 Pin - Chain to Frame 1
23 R344094 344094 Spring - F Tractors 2
