Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

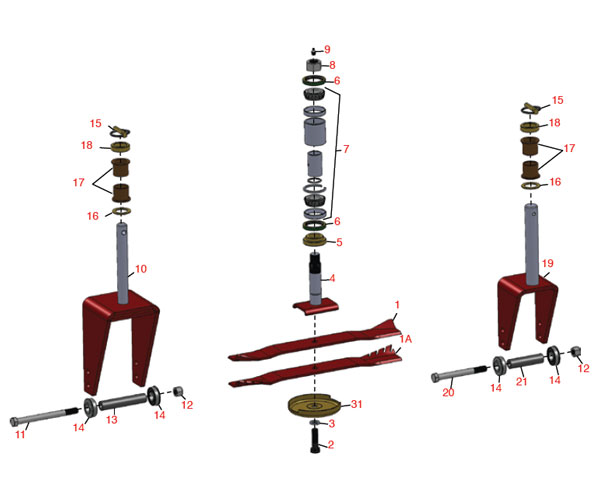

1 R69-6920 69-6920 Rotary Blade 11
1A R69-6920M 107-0217-03 Blade - Gator Mulcher 11
1A R108-1453 108-1453 Blade Kit - Gator Mulching SET/11 11
2 R51-4060 51-4060 Bolt - Blade 11
3 RF104 3253-8 Washer - Lock 5/8 11
4 R69-6760 69-6760 Spindle 11
5 R69-6950 69-6950 Use R92-9800 1
5 R92-9800 92-9800 Spacer - Spindle 11
6 R253-154 253-154 Seal - Spindle 11
7 R104-3549 104-3549 Spacer - Set Spindle Bearing 5
7 R71-2530 71-2530 Bearing - Spindle 11
8 R3296-49 3296-49 Locknut - Spindle 11
9 R471219 302-2 Zerk - Grease 11
10 R69-6270 69-6270 Caster Fork - Center Deck 2
11 R327-25 327-25 Axle - Caster 5/8-11 x 7-1/2 2
12 R3296-53 3296-53 Locknut - 5/8-11 ESNA Yellow 12
13 R251-333 251-333 Spacer - Center Caster Wheel 2
14 R251-321 251-321 Bearing 24
15 R3290-384 3290-384 Pin - Lynch Heavy Duty 11
16 R69-6860 69-6860 Washer - 1/8 Caster Wheel 40
17 R69-6470 69-6470 Bushing - Flanged 24
18 R69-1510 69-1510 Spacer - 1/2 Caster Fork 60
19 R75-9670 75-9670 Caster Fork - Wing Decks 8
19 R69-6310 69-6310 Use R75-9670
20 R327-17 327-17 Axle - Caster Fork 5/8-11 x 6 10
21 R251-332 251-332 Spacer - Caster Wheels 10
22 R69-6220 69-6220 Belt - Main Drive 1
22 R93-8457 93-8457 Belt - Main Drive 1
22 R69-6210 69-6210 Use R76-2060
22 R76-2060 76-2060 Belt - Wing Unit 6
31 R67-7561 67-7561 Cup - Anti-Scalp 1
R232-27 232-27 Stem - Valve w/ Cap 1
R256-254 256-254 Bushing 1-1/8 x 1.375 x 1.5 1
R327-24 327-24 Bolt - Hex Hd 5/8-11 x 6 4
R48251 93-4244 Tube - 410/350-4 1
R63-1540-03 63-1540-03 Pulley - Idler 3
R69-5430-03 69-5430-03 Pulley - Idler 2
R93-4237 93-4237 Bearing 2
R93-4239 93-4239 Rim - Wheel Half w/Valve Hole 1
R93-4240 93-4240 Wheel - Pneu. Assy 10x3.50-4 4
R93-4241 93-4241 Spacer - Caster Wheel 1
R93-4242 93-4242 Plate - Caster Wheel 1
R93-4243 93-4243 Tire - 10x3.50-4 (8 Ply) Nylon 1
R93-5630 93-5630 Spacer - Front Caster Wheel 1
R93-5980 93-5980 Hub Assy - w/o Bearings/Spacer 1
R95-2741 95-2741 Rim - Wheel Half w/o Valve Hole 1
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged 4
R302-5 302-5 Fitting - Grease
R310266 3256-23 Washer - Flat 5/16 USS 4
R32121-6 32121-6 Pin - Roll 3/16 x 1-1/4 4
R32128-16 32128-16 Locknut - 5/16-24 Flanged Top 4
R32128-23 32128-23 Nut - Lock Hex Flanged 1/2-13
R32128-36 32128-36 Use R3296-39
R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16 19
R3218-3 3218-3 Nut - 3/8-16 Jam 3
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R3231-4 3231-4 Bolt - Carriage 3/8-16 x 1-1/2 4
R323-15 323-15 Bolt - Hex Hd 3/8-16 x 3-1/2 GR5 16
R3234-12 3234-12 Bolt - Hex Serrated Washer Hd
R3234-24 3234-24 Bolt - Hex Serrated Washer Hd 3/8-16 x 1-1/4 2
R323-49 323-49 Bolt - Hoc 3/8-16 x 3 1/2 1
R323-50 323-50 Bolt - 3/8-16 x 1-1/2 2
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ
R3253-3 3253-3 Washer - Lock 1/4 3
R3256-69 3256-69 Washer - Flat 4
R325-8 325-8 Bolt 4
R3290-271 3290-271 Rivet - Grass Shield 2
R3296-2 3296-2 Nut- #10 Lock 8
R3296-29 3296-29 Locknut - 5/16-18 ESNA 4
R3296-39 3296-39 Locknut - 3/8-16 Nylon 18
R3-8514 3-8514 Washer 1
R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5 2
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R443106 3218-2 Nut - 5/16-18 Y/Zinc Plated
R445722 32128-20 Nut - Serrated Washer 4
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 11
R453017 3256-26 Washer - Flat 1/2 1
R460312 3290-343 Pin - Hair Cotter 1
