Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
See Tire Section for Complete Tire Selection
R69-9800 69-9800 Use 31x13.50-15 (8 Ply) Tire
Tech Note: Front
 1
R69-9880 69-9880 Use 23x10.50-12 (6 Ply) Tire
Tech Note: Rear
 1

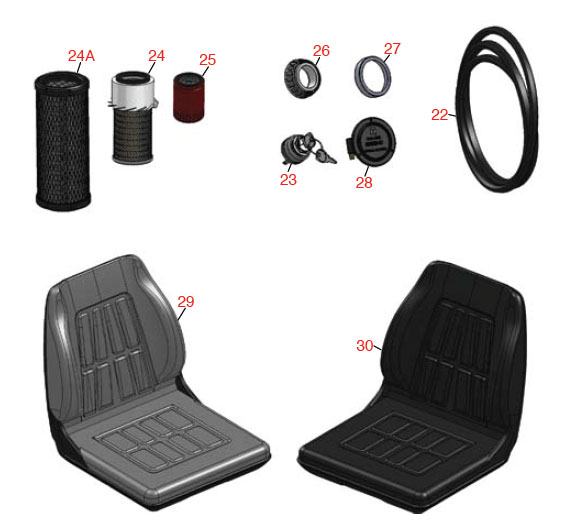

Other Parts Available
23 R27-2360 27-2360 Switch - Key 6 LEAD.9/16 Mount 1
24 R69-1900 69-1900 Element - Air Cleaner (1989-1997) 1
24 R108-3809 108-3809 Use R69-1900
24A R108-3815 108-3815 Air Filter 1
24A R98-0801 98-0801 Use R108-3815
25 R49-2500 49-2500 Filter - Oil 1
26 R254-106 254-106 Bearing - Tapered Cone 2
26 R254-92 254-92 Bearing - Tapered 2
27 R254-107 254-107 Cup - Bearing 2
27 R254-72 254-72 Cup - Bearing 2
28 R66-2950 66-2950 Meter - Hour - Quartz 1
29 R66-5400 66-5400 Use R49-8130 - R75-9190
29 R49-8130 49-8130 Seat - Black 1
30 R75-9190 75-9190 Seat - Grey 1
R104-2541 104-2541 Switch - Key 6 Lead 5/8 Mt. 1
R106-6895-03 106-6895-03 Ball Joint Assy 2
R170714 302-39 Fitting - Pressure Relief 2
R18-1520 108-3831 Filter - Fuel 1
R2411-46 2411-40 End - Tie Rod 4
R323016 302-33 Zerk - Grease 2
R3290-495 3290-495 Pin-Klik 2
R340-103 340-137 Fitting - Hyd 45 Deg 2
R340-142 340-142 Fitting-Hyd, 90 De
R3M41933 3290-378 Cable Ties - 6IN Bulk - Pack/100
R66-2490 66-2490 Retainer-Battery 2
R69-1720 69-1720 Filter - Hydraulic 1
R93-3102 93-3102 Cap - Fuel - Diesel 1
R93-7160 93-7160 Cap - Hyd Oil w/Tether 1
R93-7629 93-7629 Rubber Foot Pad - Brake 1
R99-7435 99-7435 Relay - 70 Amp 2
R105-7941 105-7941 Nut - Hex - Slotted 1
R107-1135 107-1135 Hose Assy 1
R20-9500 20-9500 Washer 2
R232-27 232-27 Stem - Valve w/ Cap 1
R233-42 233-42 Knob 3
R233-48 233-48 Knob 1
R237-161 237-161 O-Ring 1
R240-4 240-4 Grommet - Rubber
R240-5 240-5 Grommet - Rubber 2
R240-7 240-7 Grommet - Rubber - 2 In OD
R2412-41 2412-41 Clamp
R251-259 251-259 Bearing-Ball 1
R256-156 256-156 Bushing-Flanged 2
R282-2 282-2 Yoke 1
R340-1 340-1 Fitting - Hyd 4
R340-105 340-105 Fitting - Hyd 1
R340-126 340-126 Nut - Bulkhead 2
R340-127 340-127 Nut - Bulkhead 2
R340-128 340-128 Nut-Bulkhead 2
R340-129 340-129 Fitting - Hyd 90 1
R340-132 340-132 Fitting - Hyd 90 Deg
R340-136 340-136 O-Ring 1
R340-138 340-138 Fitting - Hyd 1
R340-14 340-14 Fitting - Hyd 4
R340-17 340-17 No 10 Male Orfs x No 10 Male Orb
R340-2 340-2 Fitting - Hyd Straight
R340-3 340-3 Hyd Fitting - Adapter Connector
R340-4 340-4 Fitting - Hyd Male Connector
R340-7 340-7 Adapter 2
R340-77 340-77 Fitting - Hyd
R340-82 340-82 Fitting - 90 Deg
R340-9 340-9 Fitting - Straight Connector
R340-92 340-92 Fitting - Hyd Straight
R340-98 340-98 Fitting - Hyd 2
R353-990 353-990 Plug
R354-79 354-79 Cap-Dust
R46-6560 46-6560 Bushing 3
R56-7972 56-7972 Clamp - Tube 4
R56-7973 56-7973 Clamp - Tube
R59-7410 59-7410 Tip-Nipple 1
R61-2790 61-2790 Screen - Filler - Hyd Oil 1
R68-6150 68-6150 Breather 1
R69-6470 69-6470 Bushing - Flanged
R69-8960 69-8960 Spacer 2
R69-9760 69-9760 Cover Plate - Hyd Line Clamp 3
R76-9570 76-9570 Hose - Cutting Unit 1
R85-4650 85-4650 Fuse Holder Block 1
R93-0309 93-0309 Washer - Tab 2
R104-8300 104-8300 Locknut - 5/16-18 Flanged Y/Zinc
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged
R11M7012 3272-6 Pin - Cotter 1/8 x 5/8
R187-0 3256-25 Washer - Flat 7/16 SAE 4
R218-578 218-578 Fuse - 10 Amp 1
R237-101 237-101 O-Ring
R237-21 237-21 O-Ring
R237-22 237-22 O-Ring
R237-30 237-30 O-Ring - Seal
R237-42 237-42 O-Ring
R237-58 237-58 O-Ring - Reel
R237-65 237-65 O-Ring
R237-78 237-78 Use R237-22
R237-79 237-79 O-Ring
R237-80 237-80 O-Ring
R237-81 237-81 O-Ring
R2412-108 2412-108 Clamp - Worm - 1/4 - Stainless
R2412-129 2412-129 Clamp - Worm 9/16-1 1/4 1
R2412-3 2412-3 Clamp - Hose - 1 1/16-2 1
R2412-34 2412-34 Use RG116 (Pkg 10) 1
R251-307 251-307 Use R251-259 1
R256-2 256-2 Bushing - Idler Pulley 1
R283-1 283-1 Pin - Clevis
R283-61 283-61 Pin - Clevis 5/16 x 1-1/8 1
R300104 3290-134 Screw - Button Hd Cap 10-32 x 5/8 4
R301504 3296-42 Locknut - ESNA 1/4-20
R302-40 302-40 Fitting - Grease 1
R302-5 302-5 Fitting - Grease
R302-58 302-58 Use R302-5 2
R310266 3256-23 Washer - Flat 5/16 USS
R32105-13 32105-13 Screw-Hx Was Hd 10-32 x 3/4 4
R32120-84 32120-84 Ring - Snap 2
R32121-34 32121-34 Pin - Roll 3/16 x 1-1/2
R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock
R32128-23 32128-23 Nut - Lock Hex Flanged 1/2-13
R32128-32 32128-32 Locknut - 1/4-20 Flanged 4
R32128-33 32128-33 Nut - 1/4-20 Flanged Serr 3
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R32144-14 32104-32 Bolt - Hex Washer 5/16-18 x 5/8 2
R32146-11 32153-7 Locknut - 1/2-20 Center 2
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
R32152-1 32152-1 Locknut - All Metal 5/16-18
R32152-4 32152-4 Locknut - 1/4-20 Allmetal
R32153-5 32153-5 Locknut - 1/2-13 4
R3217-7 3217-7 Nut - 3/8-16 Yel Hex 1
R3219-10 3219-10 Nut - 9/16-18 Hex
R3219-5 3219-5 Nut - 1/2-20 18
R3220-2 3220-2 Nut - Jam - 5/16-24 1
R3220-3 3220-3 Nut - Jam Ball Joint 2
R3220-7 3220-7 Nut - 3/4-16 Jam Zinc 4
R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 2
R322-10 322-10 Bolt - Hex Hd 5/16-18 x 2 3
R322-11 322-11 Screw-Hh 1
R322-12 322-12 Screw-Hh
R322-17 322-17 Bolt 1
R322-2 322-2 Bolt - Hex Hd 5/16-18 x 5/8 2
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4
R322-4 322-4 Bolt - Hex Hd 5/16-18 x 7/8
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2
R323-13 323-13 Bolt - Hex Hd 3/8-16 x 2-3/4 GR5 2
R323-15 323-15 Bolt - Hex Hd 3/8-16 x 3-1/2 GR5 2
R3234-12 3234-12 Bolt - Hex Serrated Washer Hd 2
R3234-13 3234-13 Bolt - Flanged Hex 1/4-20
R3234-14 3234-14 Bolt - Hex Serrated Washer Hd
R3234-34 321-11 Bolt - Hex Washer 1/4 x 2 2
R3234-5 3234-5 Bolt - 4
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ
R323-8 323-8 Bolt - Hex Hd 3/8-16 x 1-1/2 12
R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4 2
R3245-1 3245-1 Screw - Set 1/4-20 x 1/4 1
R3253-21 3253-21 Washer - Lock 3/8
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3253-6 3253-6 Washer - Lock 7/16 Zinc 16
R3253-7 3253-7 Washer - Lock 1/2 /R446154
R3254-1 3254-1 Washer-Lock, Int
R325-5 325-5 Bolt - Hex Hd 1/2-13 x 1-1/4
R3255-8 3255-8 Washer - Lock 5/16 Ext
R3256-22 3256-22 Washer - Flat 1/4 Yellow
R3256-27 3256-27 Washer - Flat 5/8 SAE 1
R3256-3 3256-3 Use R453009 3
R3256-56 3256-56 Washer 2
R3256-6 3256-6 Use R453017 1
R325-7 325-7 Bolt - Hex Hd Gr 5 4
R3272-10 3272-10 Pin - Cotter 1/8 x 3/4
R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4
R3274-7 3274-7 Screw - Soc Hd Cap 3/8-16 x 1 8
R3290-133 3290-133 Screw - Machine 1/4-20 x 3/4
R3290-321 3290-321 Screw-Hwh
R3290-378 3290-378 Use R3M41933
R3290-379 3290-379 Use R3M41933 8
R3296-2 3296-2 Nut- #10 Lock
R3296-29 3296-29 Locknut - 5/16-18 ESNA
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R3296-49 3296-49 Locknut - Spindle 1
R3296-59 3296-59 Locknut - 3/8-16 Nylon Jam 2
R3296-9 3296-9 Locknut - Comb 2
R33104-020 33104-020 Bolt - Hex Washer Hd 2
R33114-060 33114-060 Bolt - Hex Hd M6-1.25 x 60 4
R33115-025 33115-025 Bolt - Hex Hd M10-1.5 x 25 8
R33115-030 33115-030 Bolt - Hex Hd M10-1.5 x 30 4
R340-65 340-65 O-Ring
R340-70 340-70 Nut - Lock
R340-78 340-78 Nut - Lock Bulkhead 4
R343060 63-8360 Ignition - Key SET/2 1
R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8
R400116 321-9 Bolt - Hex Hd 1/4-20 x 1-1/2
R400124 321-15 Bolt - Hex Hd 1/4-20 x 2-1/2 GR5
R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5
R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4
R400260 323-5 Bolt - Hex Hd 3/8-16 x 7/8
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R44-2200 44-2200 Bolt - Blade 2
R443106 3217-6 Nut - 5/16-18 Y/Zinc Plated 2
R443118 3217-9 Nut - 1/2-13 Zinc
R444312 3219-14 Nut - 10-32 1
R445722 32128-20 Nut - Serrated Washer
R453009 3256-2 Washer - Flat 5/16 SAE 2
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc
R453017 3256-26 Washer - Flat 1/2
R460028 3272-7 Pin - Cotter 1/8 x 1 2
R460050 3272-23 Pin - Cotter 3/16 x 1-1/4 4
R471219 302-2 Zerk - Grease
R48-9590 48-9590 Washer - Lock 10mm
R57-6380 33114-025 Bolt - Hex Hd M8-1.25 x 25 4
R63-8410 63-8410 Washer - Isolator Bushing
R66-3160 33114-020 Bolt - Hex Hd 4
R68-9400 33014-00 Nut - 8mm x 1.25 Flanged
R69-8930 69-8930 Washer 4
R69-8980 69-8980 Use R453017 8
R80-6990 80-6990 Washer - Hardened 4
R87-7270 87-7270 Use R453017 4
R87-8640 87-8640 Washer - Flat 4
R92-2379 92-2379 Clamp-Hose 2
R93-0307 93-0307 Nut - Lock Retainer 2
R99-9403 99-9403 Use R18-1520 1
RC-10014 32120-22 Ring - Retaining Fits Reel Brg 2
RF104 3253-8 Washer - Lock 5/8 16
RF5003 3296-23 Locknut - ESNA 1/2-13 1
RP1471-1 321-6 Bolt - Hex Hd 1/4-20 x 1
