Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

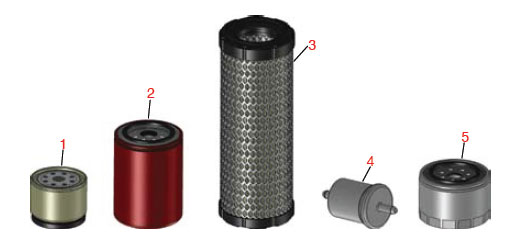

1 R108-3841 108-3841 Filter - Oil- Diesel Engine 1
2 R86-3010 86-3010 Filter - Hydraulic 2
3 R108-3810 108-3810 Use R5000919 1
3 R5000919 108-3810 Filter - Air Element 1
4 RX1258143012 98-7612 Kubota Filter - Fuel Assy
5 R98-9764 98-9764 Element - Water Fuel Separator 1

See Tire Section for Complete Tire Selection
R87-3290 87-3290 Use 23x10.50-12 (4 Ply) Tire
Tech Note: Front
 1
R93-6152 93-6152 Use 26.5x14.00-12 (2 Ply) Tire
Tech Note: Rear
 1

Other Parts Available
6 R92-5821 92-5821 Filter Head Assy 1
7 R2411-41 2411-41 Rod End-Ball Joint
8 R27-7180 27-7180 Cap - Air Inlet 1
9 R42-9030 104-5167 Filter - Oil Diesel Engine 1
10 R98-9305 98-9305 Filter - Water/Fuel Assy 1
11 R110-9044 110-9044 Filter - Seperator 1
12 R110-9049 110-9049 Filter - Spin On 1
13 R44-2230 115-4523 Coupling - Rubber Pump 1
14 RX1526312370 99-8343 Kubota Gasket - Muffler
15 R104-2541 104-2541 Switch - Key 6 Lead 5/8 Mt. 1
16 R99-7435 99-7435 Relay - 70 Amp 1
17 R99-7430 99-7430 Relay 7
18 R106-5277 106-5277 Air Cleaner Assy 1
R110-8806 110-8806 Pump-Fuel 1
R112-2923 112-2923 Seat - Grey 2
R700198 93-6152 Use 26.5x14.00-12 (4 Ply) Tire 1
RCT529386 93-6152 Tire - 26.5x14.00-12 Nhs (4 Ply) Carlisle Ultra Trac 1
R107-9091 107-9091 Hose - Formed 1
R110-5227 110-5227 Hub - Hydro Pump - 7/8 Bore 1
R232-27 232-27 Stem - Valve w/ Cap
R233-42 233-42 Knob 1
R2412-134 2412-134 R-Clamp 1
R2412-36 2412-36 Clamp - Hose 1/2 1
R2412-41 2412-41 Clamp 1
R242-50 242-50 Nut - 1/2-20 Wheel 16
R254-61 254-61 Cup 2
R256-156 256-156 Bushing-Flanged 2
R27-1960 27-1960 Hub - Engine 1
R32128-54 32128-54 Nut-HF 2
R3234-32 3234-32 Bolt - 1/2-13 x 1 1/4 Hex Flange Bolt 2
R3290-495 3290-495 Pin-Klik 1
R33104-025 33104-025 Bolt - Hex Hd Flanged 10
R340-129 340-129 Fitting - Hyd 90 3
R340-142 340-142 Fitting-Hyd, 90 De 2
R340-17 340-17 No 10 Male Orfs x No 10 Male Orb
R340-4 340-4 Fitting - Hyd Male Connector 2
R340-77 340-77 Fitting - Hyd 2
R353-783 353-783 Fitting - Straight 1
R353-990 353-990 Plug
R354-73 354-73 Fitting-Straight 2
R3M41933 3290-378 Cable Ties - 6IN Bulk - Pack/100
R40764 40764 Blade - 16 Formed Sod w/4 11 In Tf 1
R46-6560 46-6560 Bushing 1
R66-2490 66-2490 Retainer-Battery 1
R71-4410 71-4410 Spacer - Coupling 4
R87-9400 87-9400 Valve-Vacuator 1
R93-2092 93-2092 Clamp-Cable 1
RG132 2412-130 Clamp - Hose 1.56-2.5 BX/10 2
R101344 322-8 Bolt - Hex Hd 5/16-18 x 1-3/4 4
R101526 323-11 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 8
R104-8300 104-8300 Locknut - 5/16-18 Flanged Y/Zinc
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged
R110-5236 110-5236 Use R27-1960 1
R187-0 3256-25 Washer - Flat 7/16 SAE 2
R19H3130 322-9 Bolt - Hex Hd 5/16-18 x 1-3/4 1
R218-578 218-578 Fuse - 10 Amp 2
R237-22 237-22 O-Ring 1
R237-30 237-30 O-Ring - Seal
R237-42 237-42 O-Ring
R237-58 237-58 O-Ring - Reel
R237-65 237-65 O-Ring
R237-78 237-78 Use R237-22
R237-79 237-79 O-Ring
R237-80 237-80 O-Ring
R237-81 237-81 O-Ring
R2412-108 2412-108 Clamp - Worm - 1/4 - Stainless
R2412-129 2412-129 Clamp - Worm 9/16-1 1/4
R2412-3 2412-3 Clamp - Hose - 1 1/16-2
R2412-34 2412-34 Use RG116 (Pkg 10)
R24M7139 33093-00 Washer - Flat 6mm
R285-17 285-17 Plug - 1/8 NPT 1
R300104 3290-134 Screw - Button Hd Cap 10-32 x 5/8 2
R301504 32146-17 Locknut - ESNA 1/4-20 2
R302-5 302-5 Fitting - Grease
R310266 3256-23 Washer - Flat 5/16 USS
R32104-32 32104-32 Use R32144-14 1
R32105-13 32105-13 Screw-Hx Was Hd 10-32 x 3/4
R32128-23 32128-23 Nut - Lock Hex Flanged 1/2-13 4
R32128-33 32128-33 Nut - 1/4-20 Flanged Serr
R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16
R32128-49 32128-49 Nut - Hhf 2
R3213-8 3213-8 Bolt - Blade 4
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4 2
R32144-14 32144-14 Bolt - Hex Washer 5/16-18 x 5/8 2
R32146-2 32153-2 Use R321397 8
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
R3217-7 3217-7 Nut - 3/8-16 Yel Hex 1
R3217-8 3217-8 Nut - 7/16-20 Zinc 6
R3219-5 3219-5 Nut - 1/2-20 1
R3220-2 3220-2 Nut - Jam - 5/16-24 2
R3220-3 3220-3 Nut - Jam Ball Joint
R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 4
R322-10 322-10 Bolt - Hex Hd 5/16-18 x 2 4
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4
R322-4 322-4 Bolt - Hex Hd 5/16-18 x 7/8 2
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R3230-1 3230-1 Bolt - Carriage 5/16-18 x 3/4
R3230-2 3230-2 Bolt - Carriage 4
R3230-23 3230-23 Bolt - 5/16-18x3/4 - Carriage 10
R323-13 323-13 Bolt - Hex Hd 3/8-16 x 2-3/4 GR5 4
R323-15 323-15 Bolt - Hex Hd 3/8-16 x 3-1/2 GR5 2
R3234-11 3234-11 Screw - Hex Washer Hd 4
R3234-13 3234-13 Bolt - Flanged Hex 1/4-20 1
R3234-18 3234-18 Screw-Hhf 4
R3234-24 3234-24 Bolt - Hex Serrated Washer Hd 3/8-16 x 1-1/4 4
R3234-29 3234-17 5/16-18x1 Serr Hex Wshr Flange Scr
R3234-4 3234-4 Bolt - Hex Serrated Washer Hd 1/4-20 x 3/4
R3234-5 3234-5 Bolt -
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 1
R3241-5 3241-5 Screw - Set 1/4-20 x 3/8 4
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3296-19 3296-19 Locknut - 1/2-20 4
R3296-2 3296-2 Nut- #10 Lock 14
R3296-29 3296-29 Locknut - 5/16-18 ESNA 4
R3296-39 3296-39 Locknut - 3/8-16 Nylon 1
R3296-42 3296-42 Use R301504
R3296-57 3296-57 Locknut - Nylon Zinc Jam 1
R33023-00 33023-00 Locknut - ESNA 6mm x 1.0 4
R33024-00 33024-00 Locknut - 8mm x 1.25 1
R33113-016 33113-016 Bolt - Hex Washer M6-1.0 x 12 4
R33114-016 33114-016 Bolt - Hex Hd M8-1.25 x 15
R33114-030 33114-030 Bolt - Hex Hd M8-1.25 x 30
R340-65 340-65 O-Ring
R343060 63-8360 Ignition - Key SET/2 2
R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8
R400116 321-9 Bolt - Hex Hd 1/4-20 x 1-1/2
R400124 321-15 Bolt - Hex Hd 1/4-20 x 2-1/2 GR5 2
R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5 2
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R400438 3213-1 Bolt - Hex Hd 1/2-20 x 1 1
R443102 3217-5 Nut - 1/4-20 Yellow Zinc
R443106 3217-6 Nut - 5/16-18 Y/Zinc Plated 1
R443118 3217-9 Nut - 1/2-13 Zinc 4
R444312 3219-14 Nut - 10-32 2
R445722 32128-20 Nut - Serrated Washer
R446116 3253-17 Washer - Lock 10 4
R453009 3256-2 Washer - Flat 5/16 SAE 2
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 4
R453017 3256-26 Washer - Flat 1/2 1
R453023 3256-1 Washer - Flat 1/4 2
R460028 3272-7 Pin - Cotter 1/8 x 1 2
R48-9590 48-9590 Washer - Lock 10mm
R6040-106 3296-27 Locknut - Stainless 4
R63-7790 63-7790 Bolt - Hex Hd M10x1.25x20mm
R66-3160 33114-020 Bolt - Hex Hd 2
R68-9400 33014-00 Nut - 8mm x 1.25 Flanged 12
R87-5100 87-5100 Washer - Snubbing 4
RF5003 3296-23 Locknut - ESNA 1/2-13 2
