Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

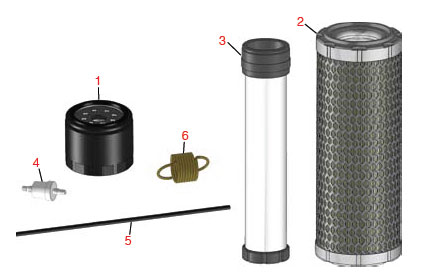

Filters
1 RK1205001 1205001 Kohler Filter- Oil
2 RK2508301 2508301 Kohler Element- Air-Primary

See Tire Section for Complete Tire Selection
R93-0181 93-0181 Use 11.00-14 (6 Ply) Tire
3 RK2508304 2508304 Kohler Element- Air Filter
4 RK2505002 2505002 Kohler Use 25 050 07-S
4 RK2505007 2505007 Kohler Filter- Fuel

Other Parts Available
5 R13-2470 13-2470 Finger - Nylon
6 R232-27 232-27 Stem - Valve w/ Cap
7 R2412-37 2112-11 Clamp - Muffler 1-1/4
8 R13-3090 13-3090 Spring - Rake Teeth
9 R254-61 254-61 Cup
R09030 32103-12 Nut - Wing 1/4
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged
R13-3710 13-3710 Washer - Steering Drum
R187-0 3256-25 Washer - Flat 7/16 SAE
R2412-108 2412-108 Clamp - Worm - 1/4 - Stainless
R301504 3296-42 Locknut - ESNA 1/4-20
R302-5 302-5 Fitting - Grease
R310266 3256-23 Washer - Flat 5/16 USS
R32121-45 32121-45 Pin - Spring Roll 5/32 x 1
R32128-32 32128-32 Locknut - 1/4-20 Flanged
R32128-49 32128-49 Nut - Hhf
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R32146-2 32153-2 Use R321397
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
R32153-3 32153-3 Locknut - 5/16-18 ESNA Zinc
R32153-5 32153-5 Locknut - 1/2-13
R32153-6 32153-6 Locknut - 3/4-10 ESNA Zinc
R3217-7 3217-7 Nut - 3/8-16 Yel Hex
R3217-8 3217-8 Nut - 7/16-20 Zinc
R3218-3 3218-3 Nut - 3/8-16 Jam
R3219-3 3219-3 Nut - 3/8-24
R322-7 322-7 Bolt - Hex Hd 5/16-18 x 1-1/2
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2
R3231-2 3231-2 Bolt - Carriage 3/8-16 x 1
R3234-33 3234-33 1/4-20 x 3/4 Serr Hx Wshr Flng Scr
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ
R323-8 323-8 Bolt - Hex Hd 3/8-16 x 1-1/2
R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4
R324-7 324-7 Bolt - Hex Hd 7/16-14 x 1-3/4 GR5
R325-13 325-13 Bolt - Hex Hd 1/2-13 x 3-1/4
R325-14 325-14 Bolt - Hex Hd 1/2-13 x 3-1/2
R3252-4 32140-94 Screw - Cover
R3253-21 3253-21 Washer - Lock 3/8
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3253-6 3253-6 Washer - Lock 7/16 Zinc
R3253-7 3253-7 Washer - Lock 1/2 /R446154
R3254-8 3254-8 Washer - Lock 1/4 Int Star Z
R325-5 325-5 Bolt - Hex Hd 1/2-13 x 1-1/4
R3255-16 3255-16 Washer - Lock 7/16 Ext Tooth
R3256-22 3256-22 Washer - Flat 1/4 Yellow
R3256-27 3256-27 Washer - Flat 5/8 SAE
R3256-82 3256-82 Washer - Flat
R325-7 325-7 Bolt - Hex Hd Gr 5
R3257-32 13-2840 Key - Woodruff
R3272-10 3272-10 Pin - Cotter 1/8 x 3/4
R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4
R3290-55 3290-55 Rivet - 5/32 x 3/8 Pop Rivet
R3296-29 3296-29 Locknut - 5/16-18 ESNA
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R3296-47 3296-47 Locknut - 5/16-18 Jam Nyloc
R3296-53 3296-53 Locknut - 5/8-11 ESNA Yellow
R33114-016 33114-016 Bolt - Hex Hd M8-1.25 x 15
R343060 63-8360 Ignition - Key SET/2
R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8
R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5
R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4
R400260 323-5 Bolt - Hex Hd 3/8-16 x 7/8
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R434027 3274-54 Bolt - Soc Hd Cap 1/4-20 x 1/2
R443102 3217-5 Nut - 1/4-20 Yellow Zinc
R443118 3217-9 Nut - 1/2-13 Zinc
R443818 3218-5 Nut - 1/2-13 Hex Jam Zinc
R445722 32128-20 Nut - Serrated Washer
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc
R453017 3256-26 Washer - Flat 1/2
R453022 3256-28 Washer - 3/4 SAE
R460312 3290-343 Pin - Hair Cotter
R49-2040 32104-95 Bolt - Hex Washer 1/4-20 x 3/4
R80-6990 80-6990 Washer - Hardened
RF5003 3296-23 Locknut - ESNA 1/2-13
RP1471-1 321-6 Bolt - Hex Hd 1/4-20 x 1
