Item # R&R
Part No.
OEM
Part No.
Description Qty
Req

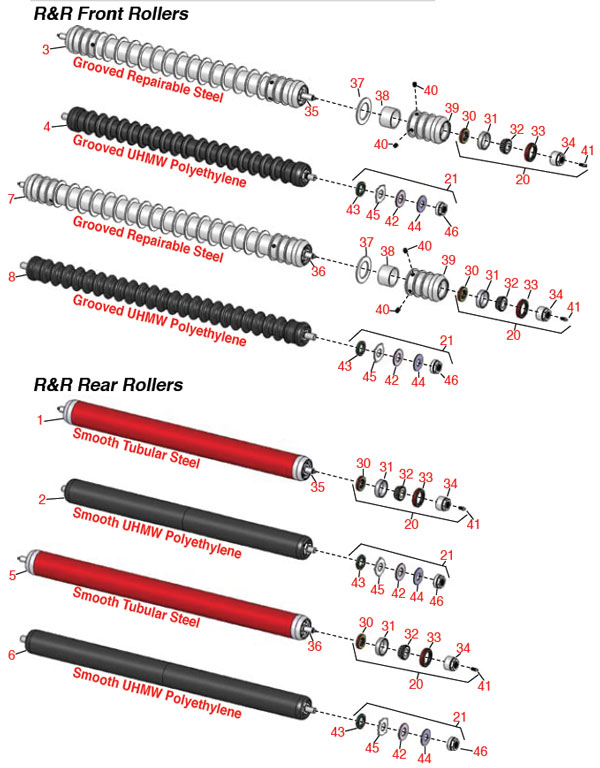

R&R Rollers Available to fit 27" Units
1 R61-0410 61-0410 Roller - Smooth Tubular Steel
2 R1503770 R&R Only Roller - Smooth UHMW Polyethylene
3 R63-5160 92-1846 Roller - Grooved Repairable Steel 3
4 R1503780 R&R Only Roller - Grooved UHMW Polyethylene

R&R Overhaul Kits Available
20 R100145 Overhaul Kit - Roller 1
20 R106-9607 106-9607 Overhaul Kit - Roller
21 R101399 R&R Only Overhaul Kit - UHMW 2 Pc Roller

Other Parts Available
30 R253-116 253-116 Use R253-152
30 R253-152 253-152 Seal - Inner Roller 2
31 R254-79 254-79 Cup - Bearing 2
32 R254-78 254-78 Bearing 2
33 R253-146 253-153 Seal - Outer Reel 2
34 R61-0370 61-0370 Use R71-3590
34 R71-3590 71-3590 Nut - Adjusting Roller 2
35 R61-0400 61-0400 Shaft - Roller 1
36 R94-4983 94-4983 Shaft - Roller 1
37 R150672 R&R Only Washer - 2-3/4 Roller
38 R150671 R&R Only Spacer - 2 3/4 / 3 Rollers
38 R150676 R&R Only Spacer - Grooved Roller 1.25
39 R150689 R&R Only Roller End - Threaded 2
40 R150691 R&R Only Screw - Set Nyloc 3/8-16 x 3/8 4
41 R302-5 302-5 Fitting - Grease
42 R1503471 R&R Only Washer - Thrust SAE660 Bronze 2
43 R1503470 R&R Only Seal - Inner Wiper 2
44 R150333 R&R Only Washer - Flat Keyed Outer SS 2
45 R1503230 R&R Only Washer - Thrust Outer Keyed 2
46 R150368 R&R Only Nut - Adjusting 2
R3-6498 3-6498 Washer - Thrust 12
R105-0150 105-0150 Use R253-146
R105-0156 105-0156 Use R61-0400
R3231-2 3231-2 Bolt - Carriage 3/8-16 x 1 6
R3256-38 3256-38 Washer - Flat 3/4 x 3/8 x .060 2
R453009 3256-3 Washer - Flat 5/16 SAE 8
R61-0420-01 61-0420-01 Use R61-0420
R14-4489 14-4489 Bracket - Assy - Front Roller
R3231-25 3231-25 Bolt - Carriage 3/8-16 x 1-1/4 4
R323-57 323-57 Use R61-0790 4
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ
R3290-467 3290-467 Pin-Hair
R3290-55 3290-55 Rivet - 5/32 x 3/8 Pop Rivet 6
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R56-9510 56-9510 Bushing - Rubber For Bed Bar / Rl
R56-9520 56-9520 Bushing - Nyliner
R61-0420 61-0420 Support - Hoc
R61-0430 61-0430 Bracket - Long Rear Roller 2
R61-0430-01 61-0430-01 Use R61-0430 2
R61-0440 61-0440 Bracket - Short Front Roller
R61-0790 61-0790 Bolt - Roller Adjustment
R61-0910 61-0910 Bracket
R61-3790 61-3790 Plate-Hoc, Front 2
R61-3800 61-3800 Plate - Hoc Rear 2
R71-3690 71-3690 Spade-Bent
