Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

R&R Reels Available, Lifetime Guaranteed

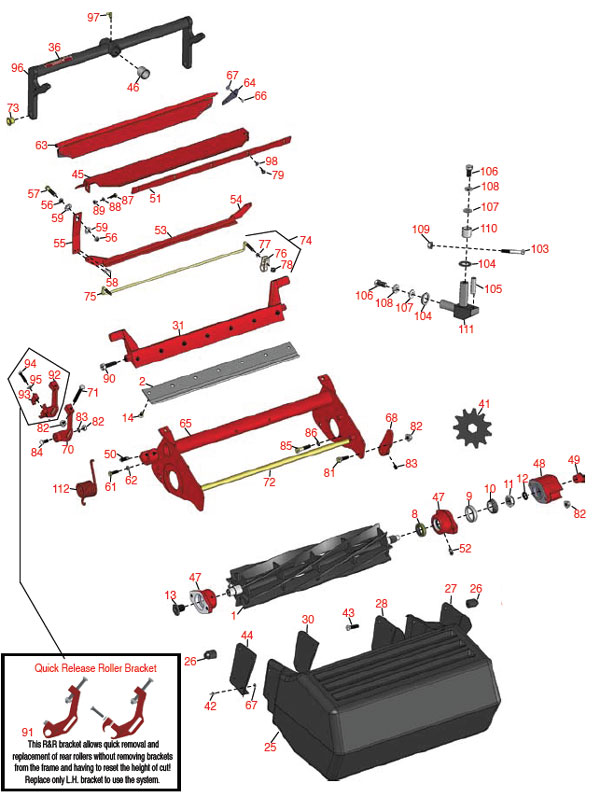

1 R14-0649 14-0649 Reel - 8 Blade Heavy Duty 1
1 R14-0659 14-0659 Reel - 5 Blade Heavy Duty 1

R&R Bedknives Available, Lifetime Guaranteed
2 R150462 R&R Only Bedknife - Thick 5/16 1
2 R150463 63-8610 Bedknife - Heavy Duty 1/4 1
2 R150464 R&R Only Bedknife - Super Thick 7/16 1
2 R100-3350 100-3350 Bedknife - High Cut 1

R&R Overhaul Kits & Service Tools
5 R255-300 107-1590 Overhaul Kit - Cutting Unit 1
6 R150430 R&R Only Bracket - Assy Quick Release 1
7 R51-0880 R&R Only Tool - Bedknife Screw 1

Other Parts Available
8 R253-96 253-96 Seal - Oil Single Lip Reel 2
9 R254-72 254-72 Cup - Bearing 2
10 R254-94 254-94 Bearing - Tapered Cone 2
11 R32127-46 3296-60 Locknut - Reel 1
12 R253-61 253-61 Seal - Oil Reel 1
13 R10-5100 10-5100 Nut - Splined 1-1/8 Long 1
14 R150476 57-4910 Screw - Regular 7
25 R75-4010 75-4010 Grass Basket 1
25 R104-8219 104-8219 Use R75-4010
26 R75-3930 75-3930 Pin - Grass Basket 1
27 R75-4040 75-4040 Support - Outer LH 1
28 R75-4030 75-4030 Support - Inner LH 1
30 R75-4020 75-4020 Support - RH Inner 1
31 R10-4930 10-4930 Bed Bar 1
36 R67-7960 67-7960 Decal - Warning 1
41 R17-1590 17-1590 Verti-Cut Blade 37
42 R3269-28 3269-28 Rivet - Pop Grass Basket 10
43 R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 2
44 R75-4050 75-4050 Support - RH Outer 1
45 R75-1840 75-1840 Shield - Grass 1
46 R67-1750 67-1750 Bushing - 1 Long 20
46 R67-1751 67-1751 Bushing - 1-1/2 Long 2
47 R10-5120 10-5120 Housing - Bearing Reel 2
48 R10-5080 10-5080 Roller End - Cap Reel Brg Housing 1
48 R92-4080 92-4080 Roller End - Cap Reel Bearing Housing 1
49 R12-0460 12-0460 Caplug - End Cap/ Red 1
50 R3243-13 3243-13 Screw - Bed Bar Adjusting 4
51 R36-7260 36-7260 Bar - Cut Off Grass Shield 1
52 R302-40 302-40 Fitting - Grease 2
53 R03512 3512 Scraper - Rear Roller 1
54 R75-1750 75-1750 Scraper - Rear Roller 1
55 R75-1740 75-1740 Spring - Scraper 2
56 R3218-3 3218-3 Nut - 3/8-16 Jam 4
57 R323-50 323-50 Bolt - 3/8-16 x 1-1/2 2
58 R3269-23 3269-23 Rivet - Scraper 4
59 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 4
61 R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1 1
62 R3253-4 3253-4 Washer - Lock 5/16 Zinc 1
63 R75-1560 75-1560 Deflector - Rear 1
64 R75-1720 75-1720 Flap - Rubber Rear Deflector 2
65 R75-6660 75-6660 Frame - 1
66 R3269-4 3269-4 Rivet - Rear Deflector 4
67 R3256-49 3256-49 Washer - Flat 3/16x9/16x18GA 14
68 R75-1960 75-1960 Bracket - RH Front Roller 1
68 R75-1980 75-1980 Bracket - LH Front Roller 1
70 R75-1610 75-1610 Bracket - Rear Hoc RH 1
70 R75-1620 75-1620 Bracket - Rear Hoc LH 1
71 R323-49 323-49 Bolt - Hoc 3/8-16 x 3 1/2 2
72 R75-1710 75-1710 Rod - Support Cutting Unit 1
73 R75-2160 75-2160 Use R3-1506
73 R3-1506 3-1506 Bushing 2
74 R92-3085 92-3085 Scraper - Roller 1
75 R92-3086 92-3086 Rod - Scraper 1
76 R92-3087 92-3087 Bracket - Scraper 2
77 R32128-33 32128-33 Nut - 1/4-20 Flanged Serr 2
78 R32128-32 32128-32 Locknut - 1/4-20 Flanged 2
79 R32144-73 32144-73 Screw - Machine Hex Washer Head 5
80 R323-2 323-2 Bolt - Hex Hd 3/8-16 x 1 1
81 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 4
82 R3296-39 3296-39 Locknut - 3/8-16 Nylon 2
82 R321397 R&R Only Nut - 3/8-16 ESNA 2
83 R415521 3246-2 Screw - Set Fits Gk Yoke 4
84 R3231-2 3231-2 Bolt - Carriage 3/8-16 x 1 2
85 R3290-316 3290-316 Bolt - Hex Tap 3/8-16 x 1-1/2 2
86 R3255-9 3255-9 Washer - Lock 3/8 Ext. Star 6
87 R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4 2
88 R3253-3 3256-1 Washer - Lock 1/4 2
89 R301504 3296-42 Locknut - ESNA 1/4-20 2
90 R315298 217-74 Bolt - Bed Bar 2
92 R150431 R&R Only Bracket - Only Quick Release 1
93 R150432 R&R Only Clamp - Quick Release Bkt 1
94 R322-7 322-7 Bolt - Hex Hd 5/16-18 x 1-1/2 1
95 R446136 R&R Only Washer - Lock 5/16 Zinc 1
96 R75-1600 75-1600 Frame - Carrier Cutting Unit 1
97 R302-60 302-60 Zerk - Grease 90 Deg. 1
98 R3256-14 3256-14 Washer - 10 Flat 5
103 R101526 323-12 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 2
104 R256-115 256-115 Washer - Thrust Bronze 11
106 R325-4 325-4 Bolt - Hex Hd 1/2-13 x 1 6
107 R3256-6 3256-6 Use R453017 6
107 R453017 3256-6 Washer - Flat 1/2 6
108 R3253-7 3253-7 Washer - Lock 1/2 /R446154 6
109 R3296-39 3296-39 Locknut - 3/8-16 Nylon 7
110 R67-1750 67-1750 Bushing - 1 Long
111 R75-3010-03 75-3010-03 Arm - Joint 3
112 R83-4720-01 83-4720-01 Torsion Spring - RH 1
112 R83-4730-01 83-4730-01 Torsion Spring - LH 1
