Search Parts

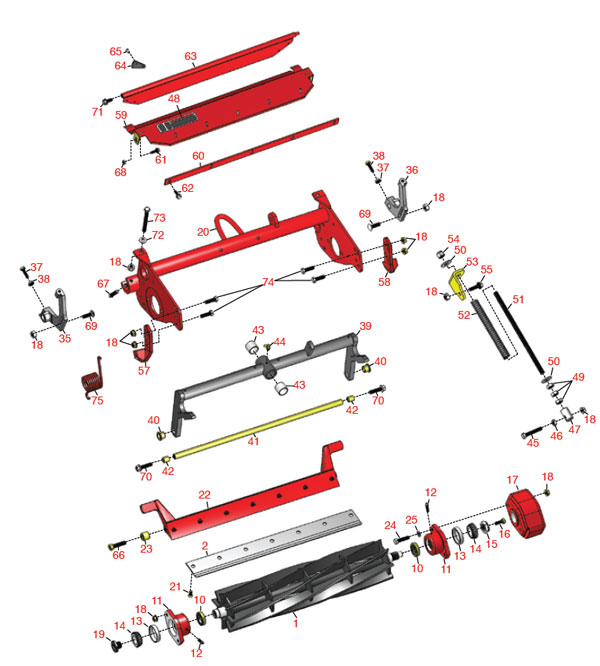

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

R&R Reels, Lifetime Guaranteed
1 R14-0659 14-0659 Reel - 5 Blade Heavy Duty 1
1 R14-0649 14-0649 Reel - 8 Blade Heavy Duty 1

R&R Bedknives, Lifetime Guaranteed
2 R100-3350 100-3350 Bedknife - High Cut 1
2 R150463 63-8610 Bedknife - Heavy Duty 1/4 1

Overhaul Kits & Service Tools
3 R107-1590 107-1590 Overhaul Kit - Cutting Unit
R51-0880 R&R Only Tool - Bedknife Screw

Other Parts Available
10 R104-3388 104-3388 Seal - Double Lip Bearing Housing 2
11 R104-3399 104-3399 Housing Assy - Bearing Reel 2
12 R700414 302-11 Zerk - Grease 1/4-28 45 Deg 2
13 R254-72 254-72 Cup - Bearing 2
14 R254-94 254-94 Bearing - Tapered Cone 2
15 R32127-46 3296-60 Locknut - Reel 1
16 R323-2 323-2 Bolt - Hex Hd 3/8-16 x 1 1
17 R100-7113-01 100-7113-01 Counterweight 1
18 R32128-36 32128-36 Use R3296-39 2
18 R3296-39 3296-39 Locknut - 3/8-16 Nylon 12
19 R93-1394 93-1394 Nut - Splined RH Thrd .812 Long 1
20 R100-7140 100-7140 Frame Assy 1
21 R150476 57-4910 Screw - Regular 7
21 R150475 3-6462 Screw - Stainless 7
22 R100-7124-01 100-7124-01 Bed Bar - 7 Hole 1
23 R100-7123 100-7123 Spacer - Bed Bar 2
24 R3290-316 57-3210 Bolt - Hex Tap 3/8-16 x 1-1/2 4
25 R3255-9 3255-9 Washer - Lock 3/8 Ext. Star 4
35 R100-7105 100-7105 Bracket - RH Hoc Rear Roller 1
36 R100-7106 100-7106 Bracket - LH Hoc Rear Roller 1
37 R445722 32128-20 Nut - Serrated Washer 4
38 R322-16 322-16 Bolt - Hex Hd 5/16-18 x 1-1/8 4
39 R104-3357 104-3357 Carrier Frame Assy 1
40 R3-1506 75-2160 Bushing 2
40 R75-2160 75-2160 Use R3-1506 2
41 R104-3365 104-3365 Support Rod 1
42 R104-3366 104-3366 Spacer - Hardened - Support Rod 2
43 R67-1750 67-1750 Bushing - 1 Long 2
44 R302-60 302-60 Zerk - Grease 90 Deg. 1
45 R104-3396 104-3396 Bolt - Hex Hd 3/8-16 x 2-1/4 1
46 R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16 1
47 R99-8662 99-8662 Tube - Spring 1
48 R67-7960 67-7960 Decal - Warning 1
49 R443818 3218-5 Nut - 1/2-13 Hex Jam Zinc 3
50 R453017 87-7270 Washer - Flat 1/2 2
51 R104-3355 104-3355 Rod - Spring 1
52 R104-3394 104-3394 Spring - Compression 1
53 R104-3661 104-3661 Bracket - Spring 1
54 RF5003 3296-23 Locknut - ESNA 1/2-13 1
55 R3234-24 3234-24 Bolt - Hex Serrated Washer Hd 3/8-16 x 1-1/4 1
57 R104-3373-01 104-3373-01 Bracket - RH Hoc Front Roller 1
58 R104-3375-01 104-3375-01 Bracket - LH Hoc Front Roller 1
59 R100-4181 100-4181 Shield Assy 1
60 R36-7260 36-7260 Bar - Cut Off Grass Shield 1
61 R3234-4 3234-4 Bolt - Hex Serrated Washer Hd 1/4-20 x 3/4 2
62 R32144-73 104-2065 Screw - Machine Hex Washer Head 5
63 R100-7136 100-7136 Rear Shield Assy 1
64 R75-1720 75-1720 Flap - Rubber Rear Deflector 2
65 R700382 700382 Rivet - Guard 4
66 R100-7126 100-7126 Bolt - Wheel 7/16-20 x 1-1/2 GR5 2
67 R104-8216 104-8216 Screw - Sq Hd Set 3/8-24 x 1-1/2 4
68 R301504 3296-42 Locknut - ESNA 1/4-20 2
69 R3231-25 3231-25 Bolt - Carriage 3/8-16 x 1-1/4 2
70 R3234-19 3234-19 Bolt - Hex Washer 3/8-16x1-3/4 2
71 R3234-5 3234-5 Bolt - 5/16-18x3/4 Hx Ser Was Hd 2
72 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 2
73 R323-49 323-49 Bolt - Hoc 3/8-16 x 3 1/2 2
74 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 4
75 R83-4720-01 83-4720-01 Torsion Spring - RH 1
75 R83-4730-01 83-4730-01 Torsion Spring - LH 1
R29-9100 29-9100 Brush Assy - Backlapping 1
R36-4310 36-4310 Brush - Lapping 1
R12-9140 12-9140 Decal - Backlappng Brush 1
R2410-18 2410-18 Caplug - Lapping Brush 1
