Search Parts

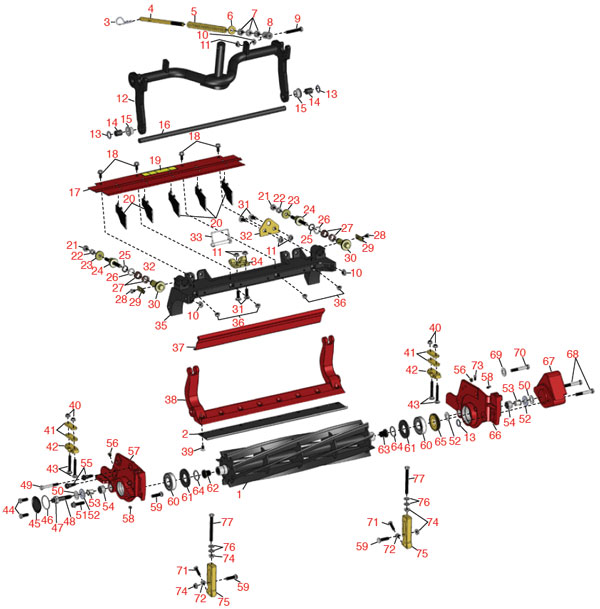

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels, Lifetime Guaranteed
1 R108-9070 108-9070 Reel - 5 Blade 1
1 R108-9071 108-9071 Reel - 8 Blade 1

R&R Bedknives, Lifetime Guaranteed
2 R110-4084 110-4084 Bedknife - Low Cut 1
2 R108-9096 108-9096 Bedknife - Standard 1
2 R110-4074 110-4074 Bedknife - High Cut 1

Service Tools
R51-0880 R&R Only Tool - Bedknife Screw

Other Parts Available
3 R92-2762 92-2762 Pin - Snap 1
4 R107-2970 107-2970 Rod - Spring 1
5 R108-9084 108-9084 Spring 1
6 R453017 87-7270 Washer - Flat 1/2 1
7 R443818 3218-5 Nut - 1/2-13 Hex Jam Zinc 3
8 R99-8662 99-8662 Tube - Spring 1
9 R104-3396 104-3396 Bolt - Hex Hd 3/8-16 x 2-1/4 1
10 R32128-43 3290-357 Nut - Flanged Whiz - 3/8-16 5
11 R32128-19 104-8301 Locknut - 3/8-16 Flanged Top Lock 5
12 R106-3937 106-3937 Carrier Frame Assy 1
13 R67-9410 67-9410 Washer - Clevis Pin 1
14 R108-4279 108-4279 Spacer - Frame 2
15 R93-2877 93-2877 Bushing - Flanged 2
16 R108-4284 108-4284 Shaft - Support 1
17 R107-2996 107-2996 Grass Shield - Front 1
18 R3234-5 3234-5 Bolt - 5/16-18x3/4 Hx Ser Was Hd 4
19 R93-6688 93-6688 Decal - Warning 1
20 R110-1706 110-1706 Deflector 5
21 R33025-00 33025-00 Locknut - 10mm x 1.5 Jam 2
22 R99-3755 99-3755 Spring - Bed Bar Adjusting 2
23 R99-2098 99-2098 Washer - Bed Bar Adjuster 2
24 R99-2096 99-2096 Screw - Bed Bar Adjustment 2
25 R32120-93 32120-93 Snap Ring - Hd Fits Reel Shaft 2
26 R106-5335 106-5335 Wave Washer - Reel Adjusting 2
27 R106-5344 106-5344 Bushing - Flanged And Keyed 4
28 R114-9396 114-9396 Bolt - Hex Hd 5/16-18 x 3/8 2
29 R99-2097 99-2097 Detent - Bed Bar Adjuster 2
30 R106-5363 106-5363 Shaft - Adjusting - Bed Bar 2
31 R3231-25 3231-25 Bolt - Carriage 3/8-16 x 1-1/4 4
32 R110-4069 110-4069 Bracket 1
33 R107-7400 107-7400 Pin - Lynch 1
34 R110-4058 110-4058 Bracket - Chain 1
35 R107-2951 107-2951 Frame 1
36 R445722 32128-20 Nut - Serrated Washer 4
37 R107-7777-01 107-7777-01 Grass Shield Assy - Rear 1
38 R105-8095-01 105-8095-01 Bed Bar 1
39 R150476 57-4910 Screw - Regular 8
40 R104-8300 104-8300 Locknut - 5/16-18 Flanged Y/Zinc 4
41 R106-3925 106-3925 Shim - 1/4 - Rear Roller Hoc 8
42 R106-3924 106-3924 Bracket - Rear Roller 2
43 RP17609-2 106-9758 Bolt - Carriage 5/16-18 x 1-1/2 4
44 R3234-11 3234-11 Screw - Hex Washer Hd 2
45 R150485 2410-30 Cap - Protective Bearing Housing 1
46 R237-68 237-68 O-Ring 2
47 R3296-33 3296-33 Locknut - 5/8-18 ESNA Jam 2
48 R106-9623 106-9623 Bolt - Bedbar 2
49 R107-7773 107-7773 Bolt - Soc Hd Cap 5/16-18 x 2-1/2 1
50 R453017 69-8980 Washer - Flat 1/2 2
50 R69-8980 69-8980 Use R453017 2
51 R3234-19 3234-19 Bolt - Hex Washer 3/8-16x1-3/4 2
52 R61-1950 61-1950 Washer - Nylon - Bed Bar 4
53 R56-9520 56-9520 Bushing - Nyliner 2
54 R106-9618 106-9618 Bushing - Rubber 2
55 R107-2979 107-2979 Bolt - Shoulder 4
56 R170714 302-39 Fitting - Pressure Relief 2
57 R108-9081 108-9081 Side Plate - RH - Frame 1
58 R302-5 302-5 Fitting - Grease 2
59 R3231-4 3231-4 Bolt - Carriage 3/8-16 x 1-1/2 2
60 R93-2489 93-2489 Bearing - Reel 2
61 R107-4028 107-4028 Seal - Grease 2
62 R105-8075 105-8075 Insert - Threaded - RH - 8 Tooth 1
63 R105-8076 105-8076 Insert - Threaded - LH - 8 Tooth 1
64 R92-2601 92-2601 Snap Ring 2
65 R107-2954 107-2954 Nut - Bearing Adjuster 1
66 R108-9080 108-9080 Side Plate - LH - Frame 1
67 R108-9090-01 108-9090-01 Weight 1
68 R101526 323-12 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 2
69 R3256-74 3256-74 Washer - Flat 1
70 R322-14 322-14 Bolt - Hex Hd 5/16-18 x 3 GR5 1
71 R322-16 322-16 Bolt - Hex Hd 5/16-18 x 1-1/8 2
72 R445722 32128-20 Nut - Serrated Washer 2
73 R106-4214 106-4214 Set Screw - 1/4-20 x 1/2 Cone Point 1
74 R32128-19 104-8301 Locknut - 3/8-16 Flanged Top Lock 4
75 R107-2952 107-2952 Bracket - Front Roller 2
76 R453011 48-9220 Washer - Flat 3/8 SAE Y/Zinc 4
77 R107-4026 107-4026 Bolt - Hex Tap 3/8-16 x 3-3/4 2
R29-9100 29-9100 Brush Assy - Backlapping 1
R36-4310 36-4310 Brush - Lapping 1
R106-9758 106-9758 Bolt - Carriage 5/16x4 4
R112-7451 112-7451 Bolt - Hex Tap 3/8-16 x 2-3/4 2
R12-9140 12-9140 Decal - Backlappng Brush 1
R2410-18 2410-18 Caplug - Lapping Brush 1
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged 4
