Search Parts

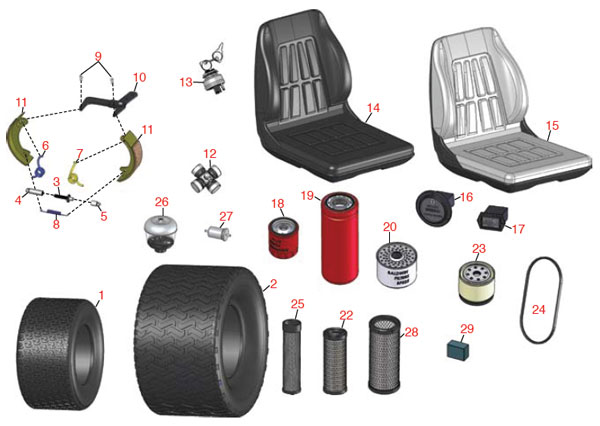

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

Engine Parts
KUBOTA Genuine Kubota Engines And Parts Available

See Tire Section for Complete Selection
R93-6152 93-6152 Use 26.5x14.00-12 (2 Ply) Tire
Tech Note: Front
 1
R86-5910 86-5910 Use 20x10.00-10 (6 Ply) Tire
Tech Note: Rear
 1

Overhaul Kits
1 R30038 30038 Filter Kit - 400 Hr

Filters
10 R108-3841 108-3841 Filter - Oil- Diesel Engine 1
11 R42-9030 104-5167 Filter - Oil Diesel Engine 1
12 RX7000074034 99-8384 Kubota Filter - Oil 1
13 R110-4146 110-4146 Filter - Oil Transmission 1
13 R75-1330 75-1330 Filter - Oil - Transmission 1
14 R94-2621 94-2621 Filter - Hydraulic 1
16 R98-9764 98-9764 Element - Water Fuel Separator 1
17 R108-3816 108-3816 Air Filter 1
18 R5000919 108-3810 Filter - Air Element 1
18 R108-3810 108-3810 Use R5000919 1
18 R98-9763 98-9763 Use R5000919
20 RX1624105670 98-9493 Kubota Element - Breather 1
21 RX1258143012 98-7612 Kubota Filter - Fuel Assy 1
22 R27-7100P 48-7430 Pre Cleaner 1
22 R48-7430 48-7430 Use R27-7100P 1
30 R98-3921 98-3921 Belt - Engine Fan 1
30 RX1628297010 98-9676 Kubota V-Belt 1

Gauges & Controls
40 R104-2541 104-2541 Switch - Key 6 Lead 5/8 Mt. 1
40 R27-2360 27-2360 Switch - Key 6 LEAD.9/16 Mount 1
42 R66-2950 66-2950 Meter - Hour - Quartz 1
43 R75-6820 75-6820 Meter - Hour - Quartz 1
44 R93-9164 93-9164 Indicator-Service 1
45 R108-6496 108-6496 Micro Switch w/Boot 2
46 R98-9305 98-9305 Filter - Water/Fuel Assy 1

Other Traction Unit Parts Available
50 R61-2790 61-2790 Screen - Filler - Hyd Oil 1
51 R66-2490 66-2490 Retainer-Battery 1
52 R54-9180 54-9180 Kit - U-Joint 1
53 R110-1717 110-1717 Motor - Hyd - Reel 5
54 RX1526312370 99-8343 Kubota Gasket - Muffler 1
55 R106-4192 106-4192 Spacer 1
56 R256-42 256-42 Bushing 2
57 R340-142 340-142 Fitting-Hyd, 90 De 1
58 R348856 2112-9 Clamp - Muffler 1
59 RG116 Clamp - Hose .75-1.5 BX/10
60 R68-6150 68-6150 Breather 1
61 R74-9100 74-9100 Rubber Foot Pad - Forward 1
62 R74-9110 74-9110 Rubber Foot Pad - Reverse 1
63 R83-1030 83-1030 Mount - Engine 4
64 R92-6282 92-6282 Switch - Kill Seat 1
65 R3M41933 3290-378 Cable Ties - 6IN Bulk - Pack/100
66 R93-3102 93-3102 Cap - Fuel - Diesel 1
68 R107-9091 107-9091 Hose - Formed 1
69 R100-1270 100-1270 Sensor - Proximity
70 R94-9411 94-9411 Dipstick 1
71 R21-9370 21-9370 Screw - Adjustment 2
72 R21-9380 21-9380 Nut - Pivot 2
73 R21-9390 21-9390 Socket 2
74 R21-9420 21-9420 Spring - Return LH 2
75 R21-9430 21-9430 Spring - Return RH 2
76 R21-9440 21-9440 Screw - Spring Adj. 2
77 R84-8600 84-8600 Shoe - Brake SET/4 1
78 R24-9180 24-9180 Lever - Parking Brake 1
79 R21-9460 21-9460 Retainer 4
80 R104-4620 104-4620 Use R49-8130 Or R75-9190 1
80 R49-8130 49-8130 Seat - Black 1
81 R75-9190 75-9190 Seat - Grey 1
81 R92-1180 92-1180 Use R75-9190 Or R49-8130 1
82 R100-2582 100-2582 Rim - Rear Tire 12 x 7 1
83 R232-27 232-27 Stem - Valve w/ Cap
84 R110-3257 110-3257 Hose-Fuel 1
85 R700167 86-5910 Use 20x10.00-10 (4 Ply) Tire
85 RCT50D362 86-5910 Tire - 20x10.00-10 Nhs (4 Ply) Carlisle Turf Trac R/S 1
86 R700198 98-2373 Use 26.5x14.00-12 (4 Ply) Tire 1
86 RCT529386 93-6152 Tire - 26.5x14.00-12 Nhs (4 Ply) Carlisle Ultra Trac 1
R105-4011-03 105-4011-03 Weight - End 5
R10-6830 10-6830 Stud - Wheel 1/2-20 x 1 3/4 5
R87-9400 87-9400 Valve-Vacuator 1
R100-4872 100-4872 Plate-Switch, Neut
R104-0015 104-0015 Bushing - Flanged
R104-0046 104-0046 Pin - Slide - Cylinder
R105-7941 105-7941 Nut - Hex - Slotted 1
R105-8289 105-8289 Spring-Torsion 1
R106-1026 106-1026 Plug-Hyd 4
R106-4168-03 106-4168-03 Bracket-Joystick 1
R106-6774 106-6774 Joint-Ball 2
R11-0160 11-0160 Screw - Roller Shaft 1
81 R92-1180 92-1180 Use R75-9190 Or R49-8130 1
82 R100-2582 100-2582 Rim - Rear Tire 12 x 7 1
83 R232-27 232-27 Stem - Valve w/ Cap
84 R110-3257 110-3257 Hose-Fuel 1
85 R700167 86-5910 Use 20x10.00-10 (4 Ply) Tire
85 RCT50D362 86-5910 Tire - 20x10.00-10 Nhs (4 Ply) Carlisle Turf Trac R/S 1
86 R700198 98-2373 Use 26.5x14.00-12 (4 Ply) Tire 1
86 RCT529386 93-6152 Tire - 26.5x14.00-12 Nhs (4 Ply) Carlisle Ultra Trac 1
R105-4011-03 105-4011-03 Weight - End 5
R10-6830 10-6830 Stud - Wheel 1/2-20 x 1 3/4 5
R87-9400 87-9400 Valve-Vacuator 1
R100-4872 100-4872 Plate-Switch, Neut
R104-0015 104-0015 Bushing - Flanged
R104-0046 104-0046 Pin - Slide - Cylinder
R105-7941 105-7941 Nut - Hex - Slotted 1
R105-8289 105-8289 Spring-Torsion 1
R106-1026 106-1026 Plug-Hyd 4
R106-4168-03 106-4168-03 Bracket-Joystick 1
R106-6774 106-6774 Joint-Ball 2
R11-0160 11-0160 Screw - Roller Shaft 1
R233-42 233-42 Knob
R237-161 237-161 O-Ring 1
R240-4 240-4 Grommet - Rubber 3
R240-5 240-5 Grommet - Rubber 9
R240-9 240-9 Grommet - Rubber 1
R241-119 241-119 Cap-Dust 1
R2412-36 2412-36 Clamp - Hose 1/2 1
R242-50 242-50 Nut - 1/2-20 Wheel 10
R251-259 251-259 Bearing-Ball 2
R251-77 251-77 Collar - Bearing 1
R253-129 253-129 Seal 1
R254-72 254-72 Cup - Bearing 2
R254-90 254-90 Cup - Bearing Tapered Brg. 1
R254-91 254-91 Bearing - Cone 1
R254-94 254-94 Bearing - Tapered Cone 2
R256-113 256-113 Bushing - Flanged Adj. Pin 2
R256-236 256-236 Bearing - 5/8 Flanged 2 Bolt 4
R32151-104 32151-104 Ring - Retaining, Ex 2
R32151-77 32151-77 Ring - Retaining 1
R340-1 340-1 Fitting - Hyd 2
R340-103 340-103 Fitting - Hyd 45 Deg 2
R340-105 340-105 Fitting - Hyd 3
R340-127 340-127 Nut - Bulkhead 9
R340-132 340-132 Fitting - Hyd 90 Deg
R340-136 340-136 O-Ring 1
R340-2 340-2 Fitting - Hyd Straight
R340-3 340-3 Hyd Fitting - Adapter Connector 2
R340-4 340-4 Fitting - Hyd Male Connector 1
R340-7 340-7 Adapter
R340-77 340-77 Fitting - Hyd
R340-92 340-92 Fitting - Hyd Straight
R340-98 340-98 Fitting - Hyd 9
R353-550 353-550 Plug - Drain - Hyd Tank 1
R353-783 353-783 Fitting - Straight 2
R354-78 354-78 Connector-Hose 1
R354-79 354-79 Cap-Dust
R3-6498 3-6498 Washer - Thrust
R43-0090 43-0090 10mm x 1.25 Hex Hd
R46-6560 46-6560 Bushing 2
R49-6440-03 49-6440-03 Pedal - Forward Assy 1
R5-1226 5-1226 Spacer - Lift Cyl 2
R56-7973 56-7973 Clamp - Tube 6
R59-7410 59-7410 Tip-Nipple 1
R67-1750 67-1750 Bushing - 1 Long 4
R69-8960 69-8960 Spacer 9
R71-1360 94-3405 Bearing - Reel 1
R71-4740-03 71-4740-03 End - Tie Rod - RH 2
R76-2460 76-2460 Bearing - Flange 1
R76-2980 76-2980 Washer - Thrust
R76-8640 76-8640 Stud-Traction 1
R83-1050 83-1050 Spacer 4
R84-8590 84-8590 Use R84-8600 4
R93-0309 93-0309 Washer - Tab 4
R93-5547 93-5547 Bushing-Nylon 2
R93-5961 93-5961 Shifter - Dust Guard 1
R93-6689 93-6689 Decal - No Riders
R93-6696 93-6696 Decal - Warning 2
R93-7498 93-7498 Plug-Oil 1
R93-9151 93-9151 Fitting - Hyd 5
R98-8173 98-8173 Pivot Pin - Rear Lift Arm 1
R98-9311 98-9311 Swivel-Throttle 1
R99-5608-03 99-5608-03 Spring-Torsion, RH 1
R99-5609-03 99-5609-03 Spring-Torsion, LH 1
R99-8432 99-8432 Washer - Thrust 2
R101344 322-8 Bolt - Hex Hd 5/16-18 x 1-3/4 4
R101526 323-12 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5
R102-0 32121-16 Pin - Drive Lock Adj. Handle 1
R1023-4 3272-4 Pin - Cotter 3/32 x 3/4 2
R104-8300 104-8300 Locknut - 5/16-18 Flanged Y/Zinc 6
R105-2894 105-2894 Use R99-8336 3
R106-4193 106-4193 Washer - Finger, Spr 2
R10-8110 10-8110 Washer - Pivot Pin 2
R19H3130 322-9 Bolt - Hex Hd 5/16-18 x 1-3/4
R237-101 237-101 O-Ring 1
R237-21 237-21 O-Ring
R237-22 237-22 O-Ring
R237-30 237-30 O-Ring - Seal
R237-42 237-42 O-Ring
R237-58 237-58 O-Ring - Reel
R237-65 237-65 O-Ring
R237-78 237-78 Use R237-22
R237-79 237-79 O-Ring
R237-80 237-80 O-Ring
R237-81 237-81 O-Ring
R240-11 240-11 Bushing - Rubber - Flanged
R2412-108 2412-108 Clamp - Worm - 1/4 - Stainless
R2412-129 2412-129 Clamp - Worm 9/16-1 1/4 2
R2412-146 2412-146 Hose Clamp 2
R2412-34 2412-34 Use RG116 (Pkg 10)
R2412-98 2412-98 Clamp - Spring - Hose 1/4
R24M7139 43-5930 Washer - Flat 6mm 1
R251-307 251-307 Use R251-259 2
R283-71 283-71 Pin - Roll 1/8 x 1 Stainless
R301504 3296-16 Locknut - ESNA 1/4-20 4
R302-5 302-5 Fitting - Grease
R302-60 302-60 Zerk - Grease 90 Deg. 1
R310266 3256-23 Washer - Flat 5/16 USS
R3-1506 256-287 Bushing 2
R32104-32 32104-32 Use R32144-14 4
R32105-13 32105-13 Screw-Hx Was Hd 10-32 x 3/4 4
R32105-21 32105-21 Bolt 2
R32108-9 32108-9 Screw-Fh 1
R32120-93 32120-93 Snap Ring - Hd Fits Reel Shaft
R32121-32 32121-32 Pin - Roll 1/4 x 1-3/4 1
R32121-45 32121-45 Pin - Spring Roll 5/32 x 1
R32121-50 32121-50 Pin - Roll Spiral Lock 1/8 1147 1
R32121-6 32121-6 Pin - Roll 3/16 x 1-1/4 1
R321-23 321-23 Bolt 2
R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 1
R32128-33 32128-33 Nut - 1/4-20 Flanged Serr
R32128-36 32128-36 Use R3296-39 3
R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16 1
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R32144-10 32144-10 Screw-Hwh
R32144-14 32144-14 Bolt - Hex Washer 5/16-18 x 5/8
R32146-2 32153-2 Use R321397 1
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
R32153-6 32153-6 Locknut - 3/4-10 ESNA Zinc 2
R3218-1 3218-1 Nut-Jam
R3218-2 3218-2 Use R443106 2
R3218-3 3218-3 Nut - 3/8-16 Jam 1
R3220-12 3220-12 Nut - 1/2-20 LH Jam Hex 2
R3220-3 3220-3 Nut - Jam Ball Joint 2
R3220-7 3220-7 Nut - 3/4-16 Jam Zinc 2
R322-10 322-10 Bolt - Hex Hd 5/16-18 x 2 1
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4
R322-4 322-4 Bolt - Hex Hd 5/16-18 x 7/8
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R322-7 322-7 Bolt - Hex Hd 5/16-18 x 1-1/2
R3230-1 3230-1 Bolt - Carriage 5/16-18 x 3/4 5
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2 1
R3231-2 3231-2 Bolt - Carriage 3/8-16 x 1 2
R3231-22 3231-22 Use R3231-2 1
R323-13 323-13 Bolt - Hex Hd 3/8-16 x 2-3/4 GR5 2
R3234-1 3234-1 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4 2
R3234-13 3234-13 Bolt - Flanged Hex 1/4-20 2
R3234-14 3234-14 Bolt - Hex Serrated Washer Hd
R3234-29 3234-29 5/16-18x1 Serr Hex Wshr Flange Scr
R3234-5 3234-5 Bolt - 5/16-18x3/4 Hx Ser Was Hd
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 1
R323-8 323-8 Bolt - Hex Hd 3/8-16 x 1-1/2 4
R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4
R3245-35 3245-35 Screw - Set 1/4-28 x 1/4 1
R324-7 324-7 Bolt - Hex Hd 7/16-14 x 1-3/4 GR5 4
R3253-21 3253-21 Washer - Lock 3/8
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3253-6 3253-6 Washer - Lock 7/16 Zinc 2
R3253-7 3253-7 Washer - Lock 1/2 /R446154 8
R3254-1 3254-1 Washer-Lock, Int
R3254-6 3253-5 Washer - Lock 3/8 2
R325-5 325-5 Bolt - Hex Hd 1/2-13 x 1-1/4 6
R3255-8 3255-8 Washer - Lock 5/16 Ext
R3255-9 3255-9 Washer - Lock 3/8 Ext. Star 2
R3256-14 3256-14 Washer - 10 Flat 1
R3256-22 3256-22 Washer - Flat 1/4 Yellow
R3256-35 3256-35 Washer - Flat 2
R3256-4 3256-4 Use R453011 8
R3256-6 3256-6 Use R453017
R3256-69 3256-69 Washer - Flat 3
R3256-78 3256-78 Washer - Flat 1
R325-7 325-7 Bolt - Hex Hd Gr 5 2
R3272-10 3272-10 Pin - Cotter 1/8 x 3/4
R3272-11 3272-11 Pin - Cotter 2
R3290-250 3290-250 Pin - Hair 2
R3290-379 3290-379 Use R3M41933
R3290-467 3290-467 Pin-Hair 1
R3290-55 3290-55 Rivet - 5/32 x 3/8 Pop Rivet 2
R3296-12 3296-12 Nut - 10-32 Nylon Lock 2
R3296-2 3296-2 Nut- #10 Lock
R3296-29 3296-29 Locknut - 5/16-18 ESNA
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R3296-42 3296-42 Use R301504
R3296-47 3296-47 Locknut - 5/16-18 Jam Nyloc 5
R3296-48 3296-48 Locknut - 7/16-14 ESNA 4
R3296-49 3296-49 Locknut - Spindle
R3296-59 3296-59 Locknut - 3/8-16 Nylon Jam
R3296-9 3296-9 Locknut - Comb 2
R33024-00 33024-00 Locknut - 8mm x 1.25 1
R33094-00 33094-00 Washer - Flat - 8mm Hardened 1
R33103-020 33103-020 Bolt - Hex Washer M6-1.0 x 20 3
R33104-020 33104-020 Bolt - Hex Washer Hd 6
R33105-025 33105-025 Bolt - Hex Hd M10-1.5 x 25
R340-70 340-70 Nut - Lock
R343060 63-8360 Ignition - Key SET/2 1
R3-6781 3-6781 Washer - Thrust Castor Wheel
R400124 321-15 Bolt - Hex Hd 1/4-20 x 2-1/2 GR5 2
R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5
R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4 2
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R400274 323-20 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 2
R434024 3274-12 Bolt - Soc Hd Cap 5/16-18 x 3/4 4
R443106 3217-6 Nut - 5/16-18 Y/Zinc Plated
R443828 3220-6 Nut - 5/8 - 18 Hex 4
R444742 32146-20 Nut - 3/4-16 Gripco Cntrloc 1
R445722 32128-20 Nut - Serrated Washer
R453009 3256-3 Washer - Flat 5/16 SAE
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc
R453017 3256-26 Washer - Flat 1/2
R453023 3256-1 Washer - Flat 1/4
R471219 302-2 Zerk - Grease 1
R48-9220 48-9220 Use R453011 4
R48-9590 48-9590 Washer - Lock 10mm
R57-6380 33114-025 Bolt - Hex Hd M8-1.25 x 25 3
R63-8410 63-8410 Washer - Isolator Bushing
R66-3160 33114-020 Bolt - Hex Hd
R67-9410 67-9410 Washer - Clevis Pin 2
R68-9400 33014-00 Nut - 8mm x 1.25 Flanged 4
R69-8930 69-8930 Washer 18
R71-4540 71-4540 Washer - Thrust 1
R71-4740 71-4740 Use R71-4740-03 2
R75-5470 75-5470 Spacer - Bearing 2
R87-5100 87-5100 Washer - Snubbing 4
R92-2379 92-2379 Clamp-Hose
R93-0307 93-0307 Nut - Lock Retainer 2
R93-9783 93-9783 O-Ring - Reel 10
R94-3405 94-3405 Use R71-1360 1
R98-7769 98-7769 Stud 4
R99-6964 99-6964 Bushing - Axle 2
R99-8336 99-8336 Bolt - M8-1.25 x 70 Hx Hd 3
RF5003 3296-23 Locknut - ESNA 1/2-13
RP1471-1 321-6 Bolt - Hex Hd 1/4-20 x 1 2
COPYRIGHT © 2011~2024 POWERUP LAWNCARE PRODUCTS  -  SITEMAP
