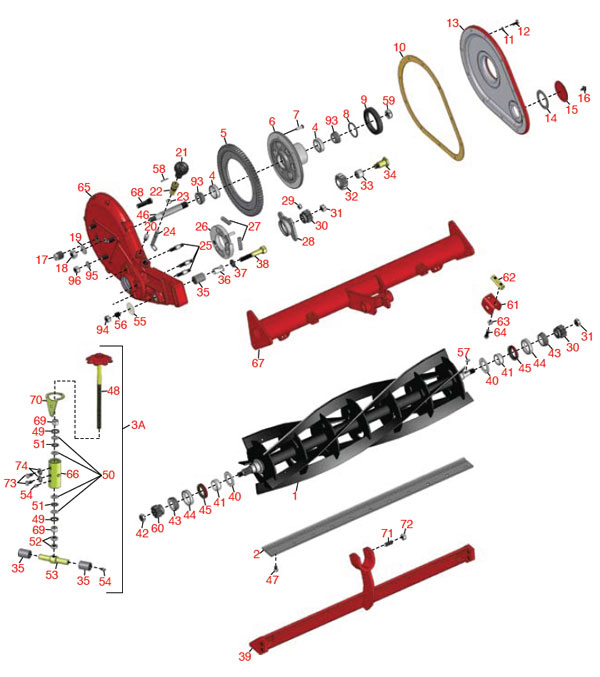

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed
1 R11-6869 11-6869 Reel - 5 Blade 1
1 R11-6879 11-6879 Reel - 7 Blade 1
1 R11-5119 11-5119 Reel - 11 Blade 1

R&R Bedknives Available, Lifetime Guaranteed
2 R150458 47-6680 Bedknife - Low Cut 1
2 R49-7660 49-7660 Bedknife - High Cut 1
3 R13-3629 13-3629 Overhaul Kit - Cutting Unit
3 R255-200 Overhaul Kit - Cutting Unit

Overhaul Kits & Service Tools
3 R255-201 Overhaul Kit - Micro Adjustment
3 R51-0880 51-0880 Tool - Bedknife Screw 1

Other Parts Available
4 R254-79 254-79 Cup - Bearing 4
5 R5-1457 5-1457 Gear - Main 2
6 R3-4001 3-4001 Hub - Ring Gear With Rivets 2
7 R3262-3 3262-3 Rivet - Ring Gear Hub 12
8 R237-38 237-38 O-Ring - Large 2
9 R253-101 253-101 Seal - Oil Cover 2
10 R3-5002 3-5002 Gasket - Cork Fits Side Case 2
11 R3254-17 3254-17 Lockwasher - 1/4 Int/Ext Star Z 20
12 R11-9760 11-9760 Screw - Hex Washer Hd. 20
13 R47-4060 47-4060 Cover - Gear Housing 2
14 R5-1458 5-1458 Gasket - Insp Plate 2
15 R5-1460 5-1460 Cover - Inspection Plate 2
16 R11-8960 11-8960 Screw - w/Washer/Neoprene 6
17 R281-3 281-3 Plug - Pipe 1/2 2
18 R3219-10 3219-10 Nut - 9/16-18 Hex 2
19 R3256-15 3256-15 Washer - Flat 9/16 Plain USS 2
20 R302-14 302-14 Fitting - Relief 2
21 R5-1464 5-1464 Handle - Throwout 2
22 R3-3892 3-3892 Sleeve - Throwout 2
23 R237-21 237-21 O-Ring 2
24 R3-3891 3-3891 Finger - Throwout LH 1
24 R3-3904 3-3904 Finger - Throwout RH 1
25 R3-7445 3-7445 Stud 6
26 R3-4160 3-4160 Ring - Carrier LH 1
26 R3-4170 3-4170 Ring - Carrier RH 1
27 R3-3251 3-3251 Spring 4
28 R47-4470 47-4470 Retainer - Ratchet Ring 1
28 R47-4480 47-4480 Retainer - Ratchet Ring 1
29 R3296-6 3296-6 Locknut - 3/8-24 ESNA 6
30 R5-1463 5-1463 Gear - Pinion 1
31 R3-8386 3-8386 Nut - Lefthand Thread 1
32 R12-1190 12-1190 Gear - Ratchet 2
33 R252-6 252-6 Bearing - Pinion Gear 2
34 R3-9116 3-9116 Stud - Ratchet Gear RH Thrd 1
34 R3-9117 3-9117 Stud - Ratchet Gear LH Thrd 1
35 R19-9750 19-9750 Bushing 4
36 R47-4430 47-4430 Bushing - Flanged 2
37 R47-5640 47-5640 Spacer - Rubber 2
38 R47-4450 47-4450 Bolt - Shoulder 1
38 R47-4460 47-4460 Bolt - Shoulder Eccentric 1
39 R47-4080 47-4080 Backing Bar - Bed Knife 1
40 R47-4260 47-4260 Slinger - Grass 2
41 R47-4250 47-4250 Sleeve - Wear Reel 2
42 R3296-57 3296-57 Locknut - Nylon Zinc Jam 1
43 R254-94 254-94 Bearing - Tapered Cone 2
44 R254-72 254-72 Cup - Bearing 2
45 R253-143 253-143 Use R253-146
45 R253-146 253-146 Seal - Outer Reel 2
46 R49-4100 49-4100 Shaft - Stub Axle 2
47 R150475 3-6462 Screw - Stainless 11
47 R150476 57-4910 Screw - Regular 11
48 R47-4300 47-4300 Handle - Adjusting 1
49 R253-84 253-84 Seal - Micro Adj. 2
50 R257-5 257-5 Washer - Thrust 4
51 R257-6 257-6 Bearing - Thrust 2
52 R3220-12 3220-12 Nut - 1/2-20 LH Jam Hex 2
53 R47-4510 47-4510 Shaft - Adjusting 1
54 R302-5 302-5 Fitting - Grease 2
55 R47-4440 47-4440 Washer - Nylon 2
56 R32148-5 32148-5 Insert - Threaded 2
57 R3257-3 3257-3 Key - Woodruff 1
58 R3283-1 3283-1 Pin - Drive Lock 2
59 R3296-15 3296-15 Locknut - 3/4-16 Nylon Jam 2
60 R47-4490 47-4490 Gear - Splined Pinion LH 1
61 R37-3490 37-3490 Bracket - Drawbar 2
62 R47-4530 47-4530 Retainer - Drawbar 2
63 R3253-21 3253-21 Washer - Lock 3/8 2
64 R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 2
65 R11-5049 11-5049 Case - Gear LH 1
65 R11-5059 11-5059 Case - Gear RH 1
66 R47-4410 47-4410 Retainer - Adj. Arm w/Zerk 1
67 R11-5069 11-5069 Tube - Axle 1
68 R17-2520 17-2520 Stud - Axle 6
69 R47-4420 47-4420 Spacer - Adj. Sleeve SS 2
70 R47-4400 47-4400 Arm - Spring 1
71 R32110-19 32110-19 Use R57-5190
71 R57-5190 57-5190 Screw - Adjusting 2
72 R443818 3218-5 Nut - 1/2-13 Hex Jam Zinc 2
73 R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 2
74 R3290-244 3290-244 Washer - Lock 5/16 Int-Ext 2
75 R01030 01030 Kit - Grass Deflector 2
76 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 1
77 R51-0810 51-0810 Shield - Grass 2
78 R3296-8 3296-8 Locknut - 1/4-20 Heavy Duty 8
79 R51-0830 51-0830 Shield - Plastic 2
80 R3256-22 3256-22 Washer - Flat 1/4 Yellow 16
81 R3290-133 3290-133 Screw - Machine 1/4-20 x 3/4 8
82 R51-0840 51-0840 Tube - Pivot Deflector 2
83 R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4 2
84 R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2 2
85 R3296-39 3296-39 Locknut - 3/8-16 Nylon 4
86 R01055 01055 Kit - Grass Deflector 2
87 R47-5380 47-5380 Tube - Pivot 2
88 R47-5340 47-5340 Shield - Grass 2
89 R01050 01050 Adapter Kit - Fits Jac Frame 1
89 R01051 Adapter Kit - Fits F10
90 R01052 Adapter - Lift Bracket Fits F10 1
90 R49-0540 49-0540 Bracket - Lift Adapter 1
91 R49-0520 49-0520 U-Bolt 2
92 R3296-48 3296-48 Locknut - 7/16-14 ESNA 4
93 R254-78 254-78 Bearing 4
94 R3296-19 3296-19 Locknut - 1/2-20 2
95 R3253-7 3253-7 Washer - Lock 1/2 /R446154 6
96 R3219-5 3219-5 Nut - 1/2-20 6
97 R11-5089 11-5089 Bracket - Roller RH
98 R47-4380 47-4380 Nut - Roller Adj RH
99 R3-4010 3-4010 Bushing
100 R325-7 325-7 Bolt - Hex Hd Gr 5
101 R3253-7 3253-7 Washer - Lock 1/2 /R446154
102 R11-5079 11-5079 Bracket - Roller LH
