Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
Overhaul Kits
R30035 30035 Filter Kit - 400 Hr

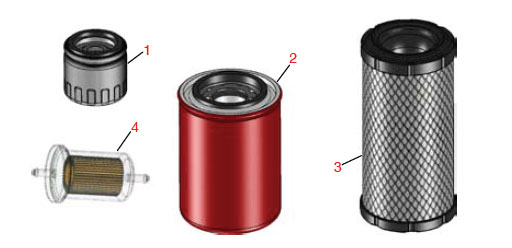

Filters
1 RS492932S 107-7817 B-S Filter-Oil 1
2 R23-9740 54-0110 Filter - Hydraulic
3 R108-3811 108-3811 Element - Air Cleaner
4 R825619 94-2690 Filter - Fuel
5 R93-2190 93-2190 Air Filter Assy

Other Parts Available
6 R87-9400 87-9400 Valve-Vacuator
7 R68-8990 68-8990 Filter Head Assy
10 R99-7430 99-7430 Relay
11 R83-0020 83-0020 Switch - Key 6 Lead
12 R28-4210 28-4210 Solenoid
13 R105-0023 105-0023 Sensor - Proximity
20 R1851 107-1997 Fitting - Grease Flush
21 R74-9100 74-9100 Rubber Foot Pad - Forward
22 R74-9110 74-9110 Rubber Foot Pad - Reverse
23 R3M41933 3290-378 Cable Ties - 6IN Bulk - Pack/100
24 R44-2230 80-8650 Coupling - Rubber Pump
25 R95-0632-03 95-0632-03 Cover Asm 1
26 R85-9030 85-9030 Spring-Extension - Stainless
27 R83-1030 83-1030 Mount - Engine 4
28 R93-7170 93-7170 Cap - Fuel w/Tether
R110-8181 110-8181 Hose-Fuel 1
R114-0612 114-0612 Pump - Variable
R85-8960 85-8960 Spacer
R95-0621 95-0621 Tire And Wheel Assy
RCT537050 85-8290 Tire - 22x11.00-8 Nhs (2 Ply) Carlisle Knobby
R100-4872 100-4872 Plate-Switch, Neut
R100-6434 100-6434 Rod - Battery
R100-6435 100-6435 Post - Battery - Stainless
R105-8523 105-8523 Shield - Muffler 1
R106-6774 106-6774 Joint-Ball
R106-8448 106-8448 Bearing
R107-4543 107-4543 Clamp
R108-5432 108-5432 Spacer-Bearing
R108-7913 108-7913 Cable- Parking Brake
R108-7946 108-7946 Cable Assy - Throttle
R108-7994 108-7994 Bushing-Pivot, Lev
R108-7996 108-7996 Dipstick Assy
R108-8428 108-8428 Hyd Hose Assy
R108-8457 108-8457 Cooler - Hyd Oil
R17-9420 17-9420 Bolt - Contour Plow Bolt
R18-6380 18-6380 Pin - Adjustment Steering
R18-7310 18-7310 Pin - Cylinder
R19-1470 19-1470 Screw-Shoulder
R19-1471 19-1471 Screw-Shoulder
R240-4 240-4 Grommet - Rubber
R2412-36 2412-36 Clamp - Hose 1/2
R2412-41 2412-41 Clamp
R242-50 242-50 Nut - 1/2-20 Wheel
R251-259 251-259 Bearing-Ball
R251-352 251-352 Bearing
R256-156 256-219 Bushing-Flanged
R26-3790 26-3790 Nut - Hex - Wheel Motor 1-20
R2710-20 2710-20 Link - Offset
R27-6600 27-6600 Spacer - Pump Coupling
R32128-54 32128-54 Nut-HF
R32136-9 32136-9 Nut - 1-1/4-12 Slotted
R32151-104 32151-104 Ring - Retaining, Ex
R3274-52 3274-52 Screw-Hsh
R3274-93 3274-93 Screw - Hsh
R3290-360 3290-360 Bolt
R340-132 340-132 Fitting - Hyd 90 Deg
R340-2 340-2 Fitting - Hyd Straight
R340-77 340-77 Fitting - Hyd
R340-87 340-87 Fitting - Hyd
R340-92 340-92 Fitting - Hyd Straight
R340-98 340-98 Fitting - Hyd
R353-550 353-550 Plug - Drain - Hyd Tank
R353-987 353-987 Fitting - Hyd 90
R353-990 353-990 Plug
R354-126 354-126 Fitting - Hyd 45
R354-73 354-73 Fitting-Straight
R3-6498 3-6498 Washer - Thrust
R38-7820 38-7820 Bearing
R43-1710 43-1710 Valve Assy
R46-6560 46-6560 Bushing
R46-7510 46-7510 Hood-Inlet- Air
R49-6440-03 49-6440-03 Pedal - Forward Assy
R56-7973 56-7973 Clamp - Tube
R56-7976 56-7976 Clamp - Tube
R68-3840 68-3840 Joint-Ball, RH Thread
R69-9760 69-9760 Cover Plate - Hyd Line Clamp
R750106 108-6878 Seat - Grey - 19 In Back
R76-8640 76-8640 Stud-Traction
R83-1390 83-1390 Needle Valve - In Line
R85-6540 85-6540 Stud - Drive
R85-8940 85-8940 Flange - w/Zerk Ball Bearing
R85-8950 85-8950 Flange - Ball Bearing
R88-8350 88-8350 Tab-Bearing
R88-8480 88-8480 Bracket-Pivot
R93-7498 93-7498 Plug-Oil
R94-6116 94-6116 Rim - White
R95-0629 87-8170 Fitting - Hyd Push 90 Deg
R95-5806 95-5806 Bracket-Mounting
R98-0152 98-0152 Knob-Tapered
R09030 32103-22 Nut - Wing 1/4
R101526 323-11 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 4
R104-7201 104-7201 Locknut - 1/4-20 ESNA Flanged
R104-8300 104-8300 Locknut - 5/16-18 Flanged Y/Zinc 16
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged 4
R106-9888 106-9888 Washer-Flat
R108-2934 108-2934 Use R114-0612
R218-578 218-578 Fuse - 10 Amp
R232-24 232-35 Stem - Valve w/ Cap
R237-101 237-101 O-Ring
R237-21 237-21 O-Ring
R237-22 237-22 O-Ring
R237-30 237-30 O-Ring - Seal
R237-42 237-42 O-Ring 2
R237-78 237-78 Use R237-22
R237-79 237-79 O-Ring
R237-80 237-80 O-Ring
R237-81 237-81 O-Ring
R240-11 240-11 Bushing - Rubber - Flanged
R2412-129 2412-129 Clamp - Worm 9/16-1 1/4
R2412-3 2412-3 Clamp - Hose - 1 1/16-2
R2412-98 2412-98 Clamp - Spring - Hose 1/4
R251-307 251-307 Use R251-259
R256-257 256-257 Nyliner Bushing
R285-17 285-17 Plug - 1/8 NPT
R301504 3296-42 Locknut - ESNA 1/4-20
R302-40 302-40 Fitting - Grease
R302-5 302-5 Fitting - Grease
R302-58 302-58 Use R302-5
R310266 3256-23 Washer - Flat 5/16 USS 3
R3210-2 3210-2 Bolt - Hx Hd 5/16-24 x 5/8 2
R32108-9 32108-9 Screw-Fh
R321-18 321-18 Bolt
R32121-11 32121-11 Pin - Roll 1/4 x 3/4
R32121-45 32121-45 Pin - Spring Roll 5/32 x 1
R32121-73 32121-73 Pin - Roll
R321-23 321-23 Bolt
R32128-33 32128-33 Nut - 1/4-20 Flanged Serr
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R32144-10 32144-10 Screw-Hwh
R32144-14 32144-14 Bolt - Hex Washer 5/16-18 x 5/8
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
R32151-12 32151-12 Ring - Retaining 11/16
R3218-1 3218-1 Nut-Jam
R3218-13 3218-13 Nut-Jam, Brass
R3220-3 3220-3 Nut - Jam Ball Joint
R322-10 322-10 Bolt - Hex Hd 5/16-18 x 2 4
R322-11 322-11 Screw-Hh
R322-12 322-12 Screw-Hh
R322-14 322-14 Bolt - Hex Hd 5/16-18 x 3 GR5
R322-2 322-2 Bolt - Hex Hd 5/16-18 x 5/8
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4 3
R322-4 322-4 Bolt - Hex Hd 5/16-18 x 7/8
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R322-7 322-7 Bolt - Hex Hd 5/16-18 x 1-1/2
R3229-1 3229-1 Screw-Carr
R3229-20 3229-20 Screw-Carr
R3230-6 3230-6 Screw-Carr
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2
R323-12 323-12 Use R101526
R3234-14 3234-14 Bolt - Hex Serrated Washer Hd
R3234-33 3234-33 1/4-20 x 3/4 Serr Hx Wshr Flng Scr
R3234-4 3234-4 Bolt - Hex Serrated Washer Hd 1/4-20 x 3/4
R323-8 323-8 Bolt - Hex Hd 3/8-16 x 1-1/2
R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4
R3241-7 3241-7 Set Screw - 1/4-20 x 1/2 Sq Hd Nyloc
R3245-1 3245-1 Screw - Set 1/4-20 x 1/4
R3250-13 3250-13 Screw-Pph
R325-10 325-10 Bolt
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3253-7 3253-7 Washer - Lock 1/2 /R446154
R325-4 325-4 Bolt - Hex Hd 1/2-13 x 1
R3254-1 3254-1 Washer-Lock, Int
R3254-8 3254-8 Washer - Lock 1/4 Int Star Z
R325-5 325-5 Bolt - Hex Hd 1/2-13 x 1-1/4
R3255-8 3255-8 Washer - Lock 5/16 Ext 1
R3255-9 3255-9 Washer - Lock 3/8 Ext. Star
R3256-22 3256-22 Washer - Flat 1/4 Yellow
R3256-27 3256-27 Washer - Flat 5/8 SAE
R3256-42 3256-42 Washer-Flat
R3256-78 3256-78 Washer - Flat
R3257-32 3257-32 Key - Woodruff 2
R3257-42 3257-42 Key - Woodruff 5/16 x 1
R3272-10 3272-10 Pin - Cotter 1/8 x 3/4
R3272-37 3272-37 Pin - Cotter 1/4 x 2 1/2
R3274-5 3274-5 Screw-Hsh
R3290-301 3290-301 Washer - Spring Wave
R3290-321 3290-321 Screw-Hwh
R3290-379 3290-379 Use R3M41933
R3296-2 3296-2 Nut- #10 Lock
R3296-29 3296-29 Locknut - 5/16-18 ESNA
R3296-33 3296-33 Locknut - 5/8-18 ESNA Jam
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R3296-47 3296-47 Locknut - 5/16-18 Jam Nyloc
R3296-6 3296-6 Locknut - 3/8-24 ESNA
R33103-012 33103-012 Screw-Hhf 3
R33103-045 33103-045 Screw-Hhf 4
R343060 63-8360 Ignition - Key SET/2
R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8
R400124 321-15 Bolt - Hex Hd 1/4-20 x 2-1/2 GR5
R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5
R400260 323-5 Bolt - Hex Hd 3/8-16 x 7/8 4
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R434024 3274-12 Bolt - Soc Hd Cap 5/16-18 x 3/4
R443106 3217-6 Nut - 5/16-18 Y/Zinc Plated
R443828 3220-6 Nut - 5/8 - 18 Hex
R444312 3219-14 Nut - 10-32
R444754 3296-4 Locknut - 5/16-24 Center
R445722 32128-20 Nut - Serrated Washer
R453009 3256-3 Washer - Flat 5/16 SAE
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 4
R453017 3256-26 Washer - Flat 1/2
R453023 3256-1 Washer - Flat 1/4
R460050 3272-23 Pin - Cotter 3/16 x 1-1/4
R49-2040 49-2040 Bolt - Hex Washer 1/4-20 x 3/4
R51-0780 51-0780 Use R150228 (Set)
R51-0790 51-0790 Use R150228 (Set)
R56-7720 56-7720 Use R100-6435
R609588 609588 Spacer
R63-8410 63-8410 Washer - Isolator Bushing
R66-3160 33114-020 Bolt - Hex Hd
R75-5470 75-5470 Spacer - Bearing
R85-8290 85-8290 Use 21x11.00-8 (2 Ply) Tire
R85-9550 85-9550 Clamp - Rubber
R85-9670 85-9670 T-Nut
R87-7270 87-7270 Use R453017
RF5003 3296-23 Locknut - ESNA 1/2-13
RS492932 107-7817 Use RS492932S (Filter - Oil) 1
