Search Parts

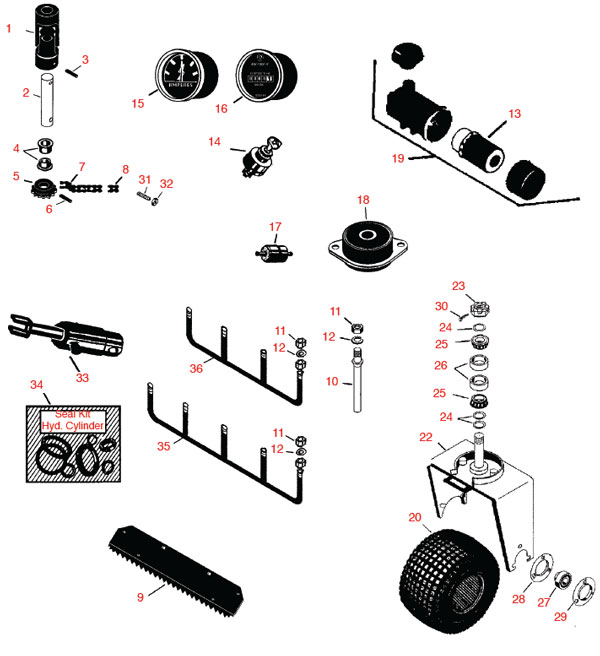

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

Filters
1 R33-1300 33-1300 Filter - Air Element 1
2 R825619 83-1320 Filter - Fuel 1

Gauges & Controls
10 R66-2950 66-2950 Meter - Hour - Quartz 1
11 R83-0820 83-0820 Meter - Amp 1
12 R83-0020 83-0020 Switch - Key 6 Lead 1

Other Parts Available
20 R11-4659 11-4659 Air Cleaner Assy 1
20 R46-6890 46-6890 Use R11-4659
21 R83-7000 83-7000 Cylinder - Hydraulic Rear 1
21 R83-7000SK 86-5360 Seal Kit - Fits R83-7000 Cylinder 1
21 R83-7250 83-7250 Use R83-7000SK 1
22 R85-9200 85-9200 U-Joint 1
23 R32121-15 32121-15 Pin - Roll 1/4 x 1-1/2 2
24 R85-9210 85-9210 Shaft - Steering 5/8 Dia 1
25 R3-1506 256-287 Bushing 2
26 R85-9180 85-9180 Sprocket - Steering Shaft 1
27 R32121-112 32121-112 Pin - Spiral Roll 1/4x1-1/4 1
28 R85-8030 85-8030 Chain - Steering 1
29 R2710-11 2710-11 Link - Connecting NO.40 Np 1
30 R18-6380 18-6380 Pin - Adjustment Steering 1
31 R444754 3296-4 Locknut - 5/16-24 Center 1
32 R83-1030 83-1031 Mount - Engine 4
33 R32136-9 32136-9 Nut - 1-1/4-12 Slotted 1
34 R3272-37 3272-37 Pin - Cotter 1/4 x 2 1/2 1
35 R18-6320 18-6320 Washer - Steering Fork 3
36 R254-70 254-70 Bearing - Tapered 2
37 R254-61 254-61 Cup 2
38 R85-8060 85-8060 Fork - Steering 1
39 R88-8450 88-8450 Tooth - Rake 3-3/8 Oal 27
40 R3217-7 3217-7 Nut - 3/8-16 Yel Hex 27
41 R3253-21 3253-21 Washer - Lock 3/8 27
42 R150850 R&R Only Rake - Front Loop 19 3
43 R150851 R&R Only Rake - Rear Loop 14.25 3
44 R84-2280 84-2280 Rake - Finishing 5
45 R85-8950 85-8950 Flange - Ball Bearing 2
46 R251-352 251-352 Bearing 2
47 R85-8940 85-8940 Flange - w/Zerk Ball Bearing 2
48 R471219 Zerk - Grease
