Item # R&R
Part No.
OEM
Part No.
Description Qty
Req

Complete Rake Kit

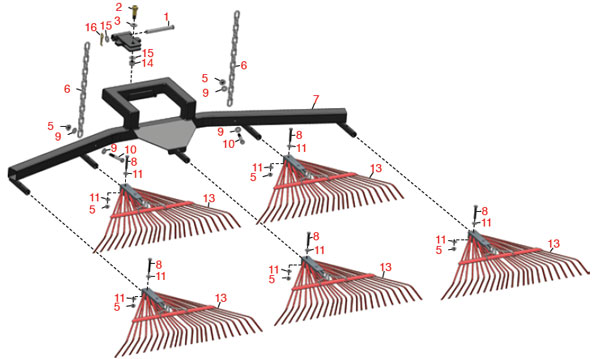

R08813 Spring Rake Assy

Other Parts Available
1 R283-83 283-83 Pin - Clevis 1
2 R80-2050 80-2050 Bolt - Shoulder 1
3 R453017 3256-26 Washer - Flat 1/2 2
4 R84-2230-03 84-2230 Pivot Assy 1
4 R84-2230-03 84-2230-03 Pivot Assy
4 R84-2230 84-2230 Use R84-2230-03
5 R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 2
6 R84-2453 84-2453 Chain - Straight Link (16) 2
7 R85-0310-03 85-0310 Hanger Assy 1
7 R85-0310-03 85-0310-03 Hanger Assy
7 R85-0310 85-0310 Use R85-0310-03
8 R101526 321-11 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 2
9 R310266 3256-3 Washer - Flat 5/16 USS 4
9 R3256-23 3256-3 Use R310266 4
9 R453009 3256-3 Washer - Flat 5/16 SAE 4
10 R3234-34 323-12 Bolt - Hex Washer 1/4 x 2 5
11 R3256-82 3256-82 Washer - Flat 5
12 R85-0360 85-0360 Rake-Spring 5
13 R3296-48 3296-48 Locknut - 7/16-14 ESNA 1
14 R187-0 3256-25 Washer - Flat 7/16 SAE 1
15 R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4 1
16 R117-4687 117-4687 Washer - Cupped 5
17 R104-7201 104-7201 Locknut - 1/4-20 ESNA Flanged 5
R3256-35 3256-35 Washer - Flat
R3296-29 3296-29 Locknut - 5/16-18 ESNA
