Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
Complete Kits Available

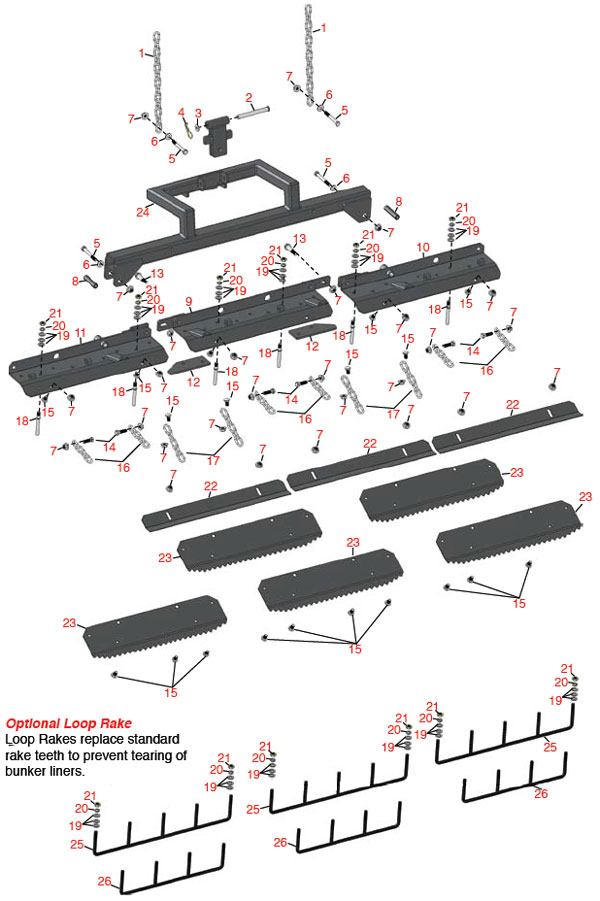

R08812 08812 Tooth Rake Assy 1

Other Parts Available
1 R84-2452 84-2452 Chain - 14 Link, Str 2
2 R283-83 283-83 Pin - Clevis 1
3 R187-0 3256-25 Washer - Flat 7/16 SAE 1
4 R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4 1
4 R460312 R&R Only Pin - Hair Cotter 1
5 R323-14 323-14 Bolt - Hex Hd 3/8-16 x 3 2
6 R310266 3256-3 Washer - Flat 5/16 USS 2
6 R3256-23 3256-3 Use R310266 2
6 R453009 3256-3 Washer - Flat 5/16 SAE 2
7 R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 30
8 R84-2350 84-2350 Spacer - Rake Frame 2
9 R84-2390-03 84-2390-03 Plate - Center Trowel 1
9 R84-2390 84-2390 Use R84-2390-03
10 R84-2400-03 84-2400-03 Plate - RH Trowel 1
10 R84-2400 84-2400 Use R84-2400-03
11 R84-2360-03 84-2360-03 Plate - LH Trowel 1
11 R84-2360 84-2360 Use R84-2360-03
12 R88-8440-03 88-8440-03 Plate - Tipper 2
13 R66-0561 66-0561 Screw - Shoulder 2
14 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 6
15 R3231-21 3231-21 Screw - 3/8-16 x 3/4 Carriage 20
16 R84-2450 84-2450 Chain - Straight 4 6
17 R84-2451 84-2451 Chain - Straight 5 4
18 R88-8450 88-8450 Tooth - Rake 3-3/8 Oal 27
18 R42-1940 42-1940 Tooth - Rake 4-3/8 Oal 27
19 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 69
20 R3253-21 3253-21 Washer - Lock 3/8 27
21 R3217-7 3217-7 Nut - 3/8-16 Yel Hex 27
22 R84-2550-03 84-2550-03 Trowel - Smooth 3
22 R84-2550 84-2550 Use R84-2550-03
23 R84-2280 84-2280 Rake - Finishing 5
23 R84-2280-03 84-2280-03 Use R84-2280
24 R84-2680-03 84-2680-03 Hanger Assy 1
24 R84-2680 84-2680 Use R84-2680-03
25 R150850 R&R Only Rake - Front Loop 19 3
26 R150851 R&R Only Rake - Rear Loop 14.25 3
R32128-12 32128-12 Locknut - 3/8-24 Flanged Top Lock
R88-8440 88-8440 Use 88-8440-03
