Search Parts

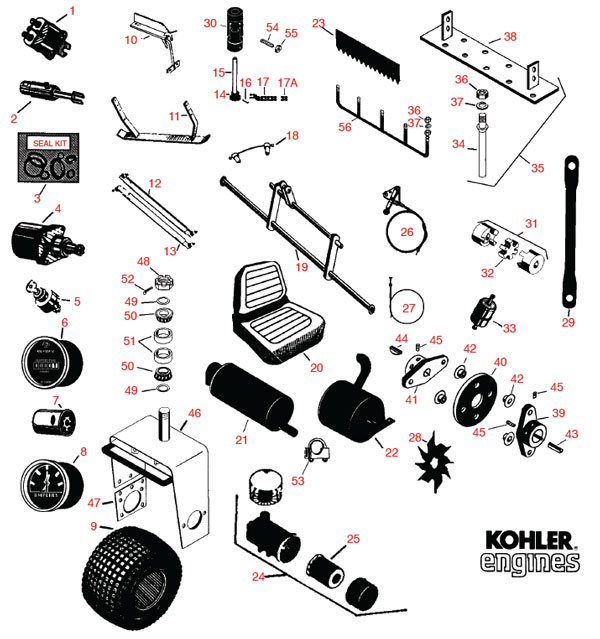

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R6-1600 6-1600 Solenoid - Starter 1
2 R10-7910 10-7910 Cylinder - Hydraulic 1
2 R83-7000 83-7000 Cylinder - Hydraulic Rear 1
3 R43-5260SK Seal Kit - Fits Hyd Cylinder 1
4 R10-8010 10-8010 Motor - Hydraulic 1
5 R12-8140 12-8140 Switch - Key 5 Lead 1
6 R12-9990 12-9990 Meter - Quartz Hour 1
7 R23-9740 23-9740 Filter - Hydraulic 1
8 R33-0990 33-0990 Meter - Amp 1
8 R7-6130 7-6130 Use R33-0990
9 R700170 231-79 Use 22x11.00-8 (2 Ply) Tire 2
9 RCT537050 231-79 Tire - 22x11.00-8 Nhs (2 Ply) Carlisle Knobby 2
10 R18-7660 18-7660 Bracket - Swivel Rake 2
11 R18-7460 18-7460 Bar - Rake 4
12 R18-7530 18-7530 Ball Joint 4
13 R18-7550 18-7550 Ball Joint 4
14 R17-2490 17-2490 Sprocket - Steering 1
15 R18-6340 18-6340 Shaft - Steering 1
16 R102-0 32121-16 Pin - Drive Lock Adj. Handle 1
17 R18-6370 18-6370 Chain - Steering 1
18 R2710-31 2710-31 Link - Connecting NO.35 2
19 R18-7170 18-7170 Bar - Lift 1
20 R20-0930 20-0930 Use R750100B Or R750100w
20 R750100B 27-5170 Seat - Universal-Black 1
20 R750100W 27-5170 Seat - Universal-White 1
22 R51-0700 51-0700 Muffler - 14 Hp Engine 1
23 R18-7560 18-7560 Plate - Main Drag 14 3/4 4
23 R18-7580 18-7580 Plate - Secondary Drag 9 3
23 R18-7640 18-7640 Plate - Swivel Drag 11 2
24 R8-2329 8-2329 Air Cleaner - w/Pre Cleaner 1
25 R33-1300 33-1300 Filter - Air Element 1
26 R51-0680 51-0680 Control - Throttle 14 Hp 1
26 R233-25 233-25 Knob - Throttle Control 14HP 1
27 R19-2090 19-2090 Control - Choke 14 Hp Eng 1
28 R20-7380 20-7380 Spiker Blade - 12 Ga 22
29 R18-7840 18-7840 Cable - Battery Positive 1
29 R10-7160 10-7160 Cable - Battery Negative 1
29 R52-1460 52-1460 Cable - Battery Negative 1
30 R19-2840 19-2840 U-Joint 1
30 R25-8160 25-8160 U-Joint 1
31 R17-4750 17-4750 Coupling - Assy 3/4-1 1
32 R31-7230 31-7230 Insert - Coupling 1
32 R18-7740 18-7740 Use R31-7230
33 R18-1520 18-1520 Filter - Fuel 1
34 R42-1940 42-1940 Tooth - Rake 4-3/8 Oal 40
34 R88-8450 88-8450 Tooth - Rake 3-3/8 Oal 40
35 R42-3960 42-3960 Kit - Rake Tooth 1
36 R3217-7 3217-7 Nut - 3/8-16 Yel Hex 40
37 R3253-21 3253-21 Washer - Lock 3/8 40
38 R42-1910 42-1910 Plate - Rake Tooth 4
39 R27-1960 27-1960 Hub - Engine 1
40 R44-2230 44-2230 Coupling - Rubber Pump 1
41 R49-9600 49-9600 Hub - Pump 1
42 R27-6600 27-6600 Spacer - Pump Coupling 4
43 R1164 10-7070 Key - Reel Pulley 1
44 R3257-32 3257-32 Key - Woodruff 1
45 R3241-5 3241-5 Screw - Set 1/4-20 x 3/8 4
46 R18-6210 18-6210 Fork - Steering 1
47 R18-6270 18-6270 Wheel - Motor Mount 1
48 R32136-9 32136-9 Nut - 1-1/4-12 Slotted 1
49 R18-6320 18-6320 Washer - Steering Fork 3
50 R254-70 254-70 Bearing - Tapered 2
51 R254-61 254-61 Cup 2
52 R3272-37 3272-37 Pin - Cotter 1/4 x 2 1/2 1
53 R2412-37 2412-37 Clamp - Muffler 1-1/4 1
54 R18-6380 18-6380 Pin - Adjustment Steering 1
55 R444754 3296-4 Locknut - 5/16-24 Center 1
56 R150852 R&R Only Rake - Loop 11.5 8
57 R20-4670 20-4670 Cable - Drag Cable 14
