Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

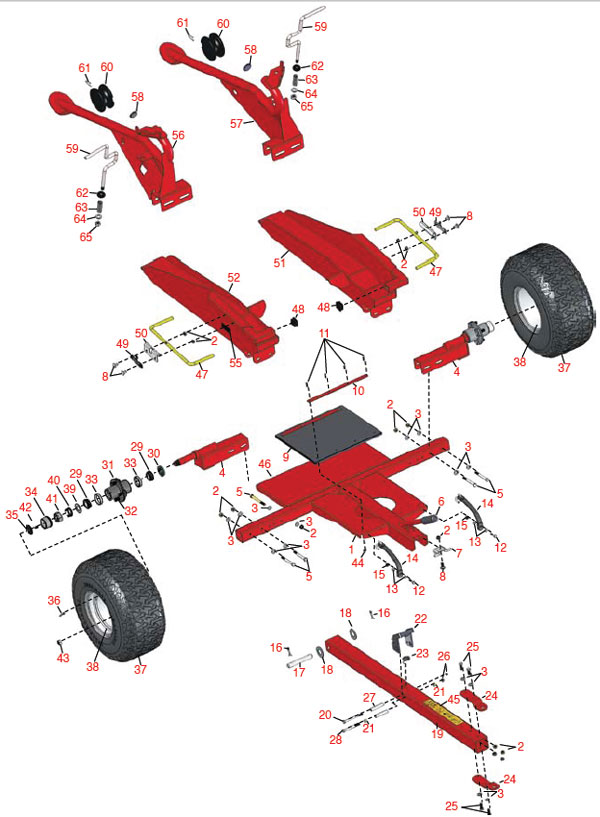

Complete Frame Kit
1 R04238 04238 Frame Assy - Red
Tech Note: Includes required quantity of item numbers 1-46
 1

Ramp Kits
2 R04244 04244 Ramp Kit - 150GT Trailer Rail
Tech Note: Includes required quantity of item numbers 56-65
 1
3 R04245 04245 Flat Ramp Kit - Red
Tech Note: Includes required quantity of item numbers 2, 8, 47-55
 1

Other Parts Available
1 R106-5366-01 106-5366-01 Frame Assy - Red 1
2 R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 14
3 R17-1710 17-1710 Washer - Flat 3/8 Yellow USS 16
4 R105-9928-01 105-9928-01 Spindle Assy - Red 2
5 R323-15 323-15 Bolt - Hex Hd 3/8-16 x 3-1/2 GR5 6
6 R105-1904 105-1904 Grip - Hand 1
7 R106-4671 106-4671 Latch 1
8 R3231-2 3231-2 Bolt - Carriage 3/8-16 x 1 5
9 R106-5360 106-5360 Rubber Mat - Front Roller 1
10 R106-5384 106-5384 Strip - Roller Mat 2
11 R297-1 R&R Only Screw - Button Hd Socket 3/4 8
12 R316797 321-13 Bolt - 1/4-20 x 1-1/4 2
13 R3256-22 3256-22 Washer - Flat 1/4 Yellow 4
14 R106-8459 106-8459 Rubber Strap 2
15 R32128-32 32128-32 Locknut - 1/4-20 Flanged 2
16 R460050 3272-23 Pin - Cotter 3/16 x 1-1/4 2
17 R92-1233 92-1233 Clevis Pin 1
18 R67-9410 67-9410 Washer - Clevis Pin 2
19 R106-4675 106-4675 Tongue - Trailer - Red 1
20 R322-20 322-20 Bolt - Hex Hd 5/16-18 x 3-1/4 GR5 1
21 R65-7910 65-7910 Spacer - Latch 2
22 R106-8437 106-8437 Release Strap - Latch 1
23 R105-9926 105-9926 Spring - Extension 1
24 R105-9930 105-9930 Hitch - Black 2
25 R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 4
26 R3296-47 3296-47 Locknut - 5/16-18 Jam Nyloc 2
27 R105-9912 105-9912 Spacer - Latch 1
28 R322-23 322-23 Bolt - Hex Hd 5/16-18 x 3-3/4 GR5 1
29 R254-92 99-4501 Bearing - Tapered 4
30 R99-4500 99-4500 Seal - Spindle Hub 2
31 R99-4502 99-4502 Hub - Spindle 2
32 R108-7662 108-7662 Stud - Wheel 8
33 R254-72 99-4511 Cup - Bearing 4
34 R99-4503 99-4503 Grease Cap - Hub 2
35 R99-4504 99-4504 Plug - Grease Cap 2
36 R232-27 232-27 Stem - Valve w/ Cap 2
38 R99-4507 99-4507 Wheel 2
39 R99-4505 99-4505 Washer - D 2
40 R99-4509 99-4509 Retainer - Spindle Nut 2
41 R99-4508 99-4508 Nut - Spindle 2
42 R302-5 302-58 Fitting - Grease 2
43 R242-50 242-50 Nut - 1/2-20 Wheel 8
44 R301504 R&R Only Locknut - ESNA 1/4-20 8
45 R106-4669 106-4669 Decal - Warning 1
46 R150324 R&R Only Plate - 150 Gt Trailer 1
47 R105-5394 105-5394 Rod - Wheel Lock 2
48 R105-9935 105-9935 Caplug 2
49 R106-5354 106-5354 Latch - Wheel Lock 2
50 R108-3156 108-3156 Bracket - Wheel Lock 2
51 R107-8183-01 107-8183-01 Ramp Kit - LH - Red 1
52 R107-8184-01 107-8184-01 Ramp Kit - RH - Red 1
55 R98-8687 98-8687 Decal - Air Pressure 2
56 R110-3468-01 110-3468 Rail Kit - RH - Red 1
57 R110-3467-01 110-3467 Rail Kit - LH - Red 1
58 R110-3469 110-3469 Cap Plug - Rail 2
59 R106-5388 106-5388 Rod - Lock 2
60 R106-5353 106-5353 Rubber Wheel Assy 2
61 R99-6204 99-6204 Clip - Retaining - Wheel (Rubber) 2
62 R100284 Bushing 2
63 R95-4256 95-4256 Spring - Rod Lock 2
64 R453017 3256-26 Washer - Flat 1/2 4
65 R32146-13 32146-13 Locknut - 1/2-13 2
