Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

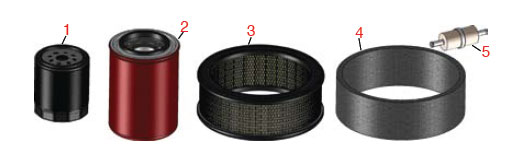

Filters
1 RK5205002 52-050-02-S Kohler Filter - Oil
2 R23-9740 23-9740 Filter - Hydraulic

See Tire Section for Complete Tire Selection
R01-269-0320 01-269-0320 Use 18x8.50-8 (4 Ply) Tire
Tech Note: Front
R95-0177 95-0177 Use 18x9.50-8 (4 Ply) Tire
Tech Note: Rear
3 RK2408302 2408302-S Kohler Pre-Cleaner
4 RK4708303 4708303-S Kohler Element
5 RK2505002 2505002 Kohler Use 25 050 07-S
5 RK2505007 2505007 Kohler Filter- Fuel

Gauges & Controls
10 R66-2950 66-2950 Meter - Hour - Quartz
11 R27-2360 27-2360 Switch - Key 6 LEAD.9/16 Mount
12 R29-6163 29-6163 Switch - Micro

Other Parts Available
20 R71-1500 104-7705 Brake Assy
21 R10-6870-03 10-6870-03 Hub - Wheel
22 R10-6850 10-6850 Drum - Brake
22 R27-1960 27-1960 Hub - Engine 1
23 R85-6540 85-6540 Stud - Drive
24 R70-9880 70-9880 Spring - Brake Shoe
25 R70-9840 70-9840 Shoe - Brake
26 R104-7707 104-7707 Cam - Brake
27 R150513 E - Clip - Brake
28 R85-9200 85-9200 U-Joint
29 R150224 92-8990 Adjusters - Seat (Set of 2)
30 R17-1620 17-1620 Bushing - Wheel
31 R49-9600 110-9695 Hub - Pump 1
33 R76-0800 94-8178 Seal Kit - Hyd Motor 1
33 R92-9199 92-9199 Motor - Hydraulic Wheel
34 R74-9100 74-9100 Rubber Foot Pad - Forward
35 R74-9110 74-9110 Rubber Foot Pad - Reverse
36 R2112-11 2112-11 Use R2412-37
36 R2412-37 2112-11 Clamp - Muffler 1-1/4
37 R92-6282 92-6282 Switch - Kill Seat
38 R85-9030 85-9030 Spring-Extension - Stainless
R2412-37 2112-11 Clamp - Muffler 1-1/4
R33-4380 33-4380 Hub - Pump 1
R358672 251-312 Bearing - Spindle
R10-6821 10-6821 Hub And Drum Assy
R112-0009 112-0009 Lever - Pump Kit
R233-42 233-42 Knob
R233-48 233-48 Knob
R240-5 240-5 Grommet - Rubber
R240-7 240-7 Grommet - Rubber - 2 In OD
R241-119 241-119 Cap-Dust
R242-50 242-50 Nut - 1/2-20 Wheel
R251-259 251-259 Bearing-Ball
R254-78 254-78 Bearing
R254-92 254-92 Bearing - Tapered
R256-113 256-113 Bushing - Flanged Adj. Pin
R256-155 256-155 Bushing - Flanged
R256-156 256-156 Bushing-Flanged
R26-3790 26-3790 Nut - Hex - Wheel Motor 1-20
R340-17 340-17 No 10 Male Orfs x No 10 Male Orb
R340-4 340-4 Fitting - Hyd Male Connector
R353-987 353-987 Fitting - Hyd 90
R354-73 354-73 Fitting-Straight
R3-6498 3-6498 Washer - Thrust
R44-2230 44-2230 Coupling - Rubber Pump 4
R49-5880 49-5880 Shaft - Seat
R71-4410 71-4410 Spacer - Coupling 4
R71-4411 71-4411 Spacer - Coupling 4
R76-8640 76-8640 Stud-Traction
R84-2000-03 84-2000-03 Bracket-Brake
R85-8460 85-8460 Switch Arm Assy
R92-2344 92-2344 Trunnion
R012791 01-279-0010 Finger - Rubber
R101344 322-8 Bolt - Hex Hd 5/16-18 x 1-3/4
R101526 323-11 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5
R104-4620 104-4620 Use R49-8130 Or R75-9190
R104-8301 104-8301 Locknut - 3/8-16 Nylon Flanged
R110-5236 110-5236 Use R27-1960 1
R115-4523 115-4523 Use R44-2230 4
R187-0 3256-25 Washer - Flat 7/16 SAE
R232-24 232-24 Stem - Valve w/ Cap
R237-30 237-30 O-Ring - Seal
R237-65 237-65 O-Ring
R237-79 237-79 O-Ring
R237-80 237-80 O-Ring
R237-81 237-81 O-Ring
R2412-108 2412-108 Clamp - Worm - 1/4 - Stainless
R2412-129 2412-129 Clamp - Worm 9/16-1 1/4
R2412-34 2412-34 Use RG116 (Pkg 10)
R283-62 283-62 Pin - Clevis 5/16 x 3/4
R300104 3290-134 Screw - Button Hd Cap 10-32 x 5/8
R300105 3246-3 Screw - Set 5/16-18 x 5/16
R301504 3296-42 Locknut - ESNA 1/4-20
R302-60 302-60 Zerk - Grease 90 Deg.
R310266 3256-23 Washer - Flat 5/16 USS 4
R32105-21 32105-21 Bolt
R32121-111 32121-111 Roll Pin - 1/4 x 2
R32121-15 32121-15 Pin - Roll 1/4 x 1-1/2
R32121-6 32121-6 Pin - Roll 3/16 x 1-1/4 1
R32128-33 32128-33 Nut - 1/4-20 Flanged Serr
R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R32144-10 32144-10 Screw-Hwh
R32144-14 32144-14 Bolt - Hex Washer 5/16-18 x 5/8
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
R3219-5 3219-5 Nut - 1/2-20
R3220-3 3220-3 Nut - Jam Ball Joint
R322-10 322-10 Bolt - Hex Hd 5/16-18 x 2 4
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4
R322-4 322-4 Bolt - Hex Hd 5/16-18 x 7/8
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R322-7 322-7 Bolt - Hex Hd 5/16-18 x 1-1/2 4
R3229-1 3229-1 Screw-Carr
R3229-11 3229-11 Bolt - Carriage 1/4-20 x 5/8
R3230-1 3230-1 Bolt - Carriage 5/16-18 x 3/4
R3230-2 3230-2 Bolt - Carriage
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2
R323-12 323-12 Use R101526
R3231-2 3231-2 Bolt - Carriage 3/8-16 x 1
R3233-26 3233-26 Bolt - Carriage 1/2-13 x 1-1/4
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ
R323-8 323-8 Bolt - Hex Hd 3/8-16 x 1-1/2
R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4
R3241-5 3241-5 Screw - Set 1/4-20 x 3/8 4
R324-5 324-5 Bolt - Hex Hd
R3245-1 3245-1 Screw - Set 1/4-20 x 1/4
R324-7 324-7 Bolt - Hex Hd 7/16-14 x 1-3/4 GR5
R325-19 325-19 Bolt - Hex Hd 1/2-13 x 5
R3253-21 3253-21 Washer - Lock 3/8
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3253-6 3253-6 Washer - Lock 7/16 Zinc
R3253-7 3253-7 Washer - Lock 1/2 /R446154
R325-4 325-4 Bolt - Hex Hd 1/2-13 x 1
R3254-6 3253-5 Washer - Lock 3/8
R325-5 325-5 Bolt - Hex Hd 1/2-13 x 1-1/4
R3255-9 3255-9 Washer - Lock 3/8 Ext. Star
R3256-22 3256-22 Washer - Flat 1/4 Yellow
R3256-27 3256-27 Washer - Flat 5/8 SAE
R3256-3 3256-3 Use R453009
R3256-4 3256-4 Use R453011
R3256-6 3256-6 Use R453017
R3257-32 3257-32 Key - Woodruff
R3257-42 3257-42 Key - Woodruff 5/16 x 1 1
R3269-4 3269-4 Rivet - Rear Deflector
R3272-10 3272-10 Pin - Cotter 1/8 x 3/4
R3272-16 3272-16 Pin - Cotter 5/32 x 1-1/4
R3272-19 3272-19 Pin - Cotter
R3274-5 3274-5 Screw-Hsh
R3290-467 3290-467 Pin-Hair
R3296-2 3296-2 Nut- #10 Lock
R3296-29 3296-29 Locknut - 5/16-18 ESNA 8
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R3296-48 3296-48 Locknut - 7/16-14 ESNA
R3296-53 3296-53 Locknut - 5/8-11 ESNA Yellow
R3296-59 3296-59 Locknut - 3/8-16 Nylon Jam
R3296-6 3296-6 Locknut - 3/8-24 ESNA
R3296-9 3296-9 Locknut - Comb
R33103-012 33103-012 Screw-Hhf
R343060 63-8360 Ignition - Key SET/2
R400116 321-9 Bolt - Hex Hd 1/4-20 x 1-1/2
R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4
R400260 323-5 Bolt - Hex Hd 3/8-16 x 7/8
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R434024 3274-12 Bolt - Soc Hd Cap 5/16-18 x 3/4
R444754 3296-4 Locknut - 5/16-24 Center
R445722 32128-20 Nut - Serrated Washer
R453009 3256-2 Washer - Flat 5/16 SAE
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc
R453017 3256-26 Washer - Flat 1/2
R453022 3256-28 Washer - 3/4 SAE
R49-2040 49-2040 Bolt - Hex Washer 1/4-20 x 3/4
R70-8040 70-8040 Washer
R75-5470 75-5470 Spacer - Bearing
R85-9120 85-9120 Spacer - Pivot, Tilt
R85-9150 85-9150 Plate-Switch
RF5003 3296-23 Locknut - ESNA 1/2-13
