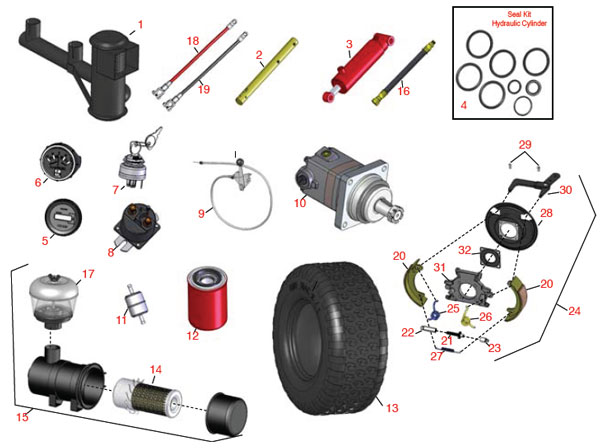

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
Filters
11 R18-1520 18-1520 Filter - Fuel 1
12 R23-9740 23-9740 Filter - Hydraulic 1
12 R277233 277233 Filter - Oil Engine 1
14 R33-1300 33-1300 Filter - Air Element 1
15 R8-2329 8-2329 Air Cleaner - w/Pre Cleaner 1
17 R8-2329P R&R Only Pre Cleaner 1

Tires
13 R700180 231-101 Use 23x8.50-12 (4 Ply) Tire 2
13 RCT511419 231-101 Tire - 23x8.50-12 Nhs (4 Ply) Carlisle Turf Master 2
13 R231-103 231-103 Use 20x8.00-10 (4 Ply) Tire
13 RCT511111 231-103 Tire - 20x8.00-10 Nhs (4 Ply) Carlisle Turf Saver
13 R700183 231-103 Use RCT511111 1
13 RCT511111 231-103 Tire - 20x8.00-10 Nhs (4 Ply) Carlisle Turf Saver 1
13 R700184 Tube - 20 - 8.00 x 10 1

Other Parts Available
1 R29-5220 29-5220 Muffler 1
2 R36-5100 36-5100 Use R49-2540
2 R49-2540 49-2540 Shaft - Forward Pivot 2
3 R29-2700 29-2700 Cylinder - Hydraulic 1
4 R29-2700SK Seal Kit - Fits R29-2700 Cylinder 1
5 R12-9990 12-9990 Meter - Quartz Hour 1
6 R33-0990 33-0990 Meter - Amp 1
7 R12-8140 12-8140 Switch - Key 5 Lead 1
8 R6-1600 6-1600 Solenoid - Starter 1
9 R29-5180 29-5180 Control - Choke Assy 1
9 R29-5190 29-5190 Control - Throttle Assy. 1
10 R36-5610 36-5610 Motor - Hydraulic Wheel Front 2
10 R36-5690 36-5690 Wheel - Motor Rear 1
10 R51-1400 51-1400 Seal Kit - Fits Hyd Wheel Motor 1
16 R10-7620 10-7620 Hose Assy - Rear Pressure 1
16 R29-1600 29-1600 Use R56-7920
16 R56-7920 56-7920 Hose Assy - Rear Wheel Drain 1
16 R29-1640 29-1640 Hose Assy - Suction 1
16 R29-1660 29-1660 Hose Assy - Rear Wheel 1
16 R29-1670 29-1670 Hose Assy - Rear Wheel 1
16 R29-1700 29-1700 Hose - Front Unit 2
16 R29-1710 29-1710 Hose - Drain Front Unit 1
16 R29-1720 29-1720 Hose - Return Center Unit 1
16 R29-1750 29-1750 Hose - Center Unit 1
16 R29-2860 29-2860 Hose - Left Front Unit 1
16 R29-2870 29-2870 Hose - Left Front Unit 1
16 R29-2880 29-2880 Hose - Left Front Unit 1
16 R36-3150 36-3150 Hose Assy - Pressure 1
16 R38-3910 38-3910 Hose Assy - Inlet to Filter 1
16 R38-3920 38-3920 Hose Assy - Return Outlet 1
16 R38-3940 38-3940 Hose Assy - Rear Lift Cylinder 1
16 R38-3950 38-3950 Hose Assy - Outlet 1
16 R38-5250 38-5250 Hose Assy - Valve to Pump 1
16 R39-2310 39-2310 Hose - Return to Case Drain 1
18 R38-6680 38-6680 Cable - Battery Positive 1
19 R29-1510 29-1510 Cable - Battery Negative 1
20 R43-2690 43-2690 Shoe - Brake 4
21 R21-9370 21-9370 Screw - Adjustment 2
22 R21-9380 21-9380 Nut - Pivot 2
23 R21-9390 21-9390 Socket 2
24 R150315 R&R Only Brake Assy 2
25 R21-9420 21-9420 Spring - Return LH 2
26 R21-9430 21-9430 Spring - Return RH 2
27 R21-9440 21-9440 Screw - Spring Adj. 2
28 R21-9450 21-9450 Shield - Dust 2
29 R21-9460 21-9460 Retainer 4
30 R24-9180 24-9180 Lever - Parking Brake 2
31 R43-6810 43-6810 Spider - Torque 2
32 R28-0670 28-0670 Seal - Oil Axle 2
