Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

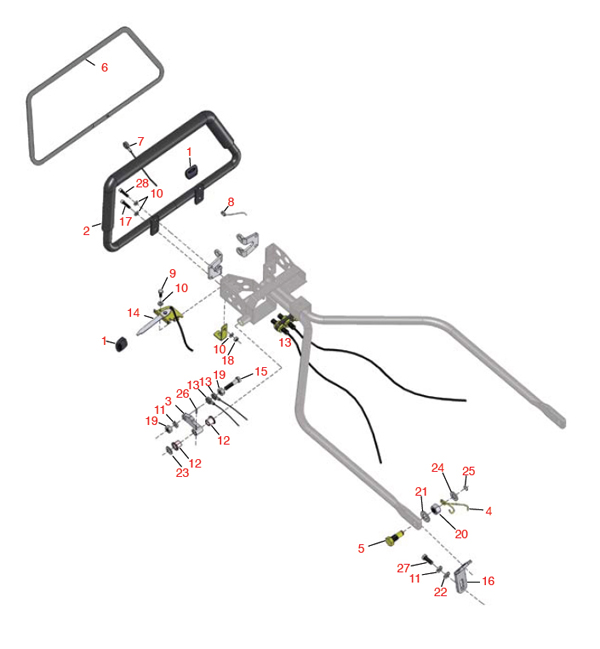

Handle Parts
1 R366768 366768 Knob - Black Rubber 2
2 R1001250 1001250 Handle Loop 1
3 R2000067 2000067 Lever - Brake Clutch 1
4 R2809900 2809900 Spring - LH Torsion 1
4 R2809901 2809901 Spring - RH Torsion 1
5 R2811559 2811559 Bolt - Handle Mounting 2
6 R3002179 3002179 Handle Loop 1
7 R3002477 3002477 Cable - Clutch 1
8 R3002480 3002480 Torsion Spring - Handle Latch 1
9 R321-4 400108 Bolt - Hex Hd 1/4-20 x 3/4 2
10 R3253-3 446130 Washer - Lock 1/4 2
11 R3254-6 446142 Washer - Lock 3/8 3
12 R366708 366708 Bearing - Flanged 2
13 R366741 366741 Cable - Brake 2
14 R366743 366743 Throttle Control 1
15 R400268 400268 Bolt - Hex Hd 3/8-16 x 1-3/4 1
16 R4115960 4115960 Stop - LH Handle 1
16 R4115961 4115961 Stop - RH Handle 1
17 R434023 434023 Bolt - Soc Hd Cap 1/4-20 x 1-1/4 2
18 R443102 443102 Nut - 1/4-20 Yellow Zinc 2
19 R443110 443110 Nut - 3/8-16 Hex. 2
20 R443828 443828 Nut - 5/8 - 18 Hex 2
21 R447224 447224 Washer - Lock 5/8 Int.Star Z 2
22 R453011 453011 Washer - Flat 3/8 SAE Y/Zinc 2
23 R454008 454008 Spring Washer 1/2 x 3/4 1
24 R455012 455012 Washer - Flat 1/2 x 3/4 2
25 R458006 458006 Ring - Retaining 2
26 R461181 461181 Grooved Pin - 3/16 x 3/4 1
27 RF3205 400262 Bolt - Hex Hd 3/8-16 x 1 2
28 R316796 316796 Bolt - Allen Hd 1/4-20 x 1 2
