Search Parts

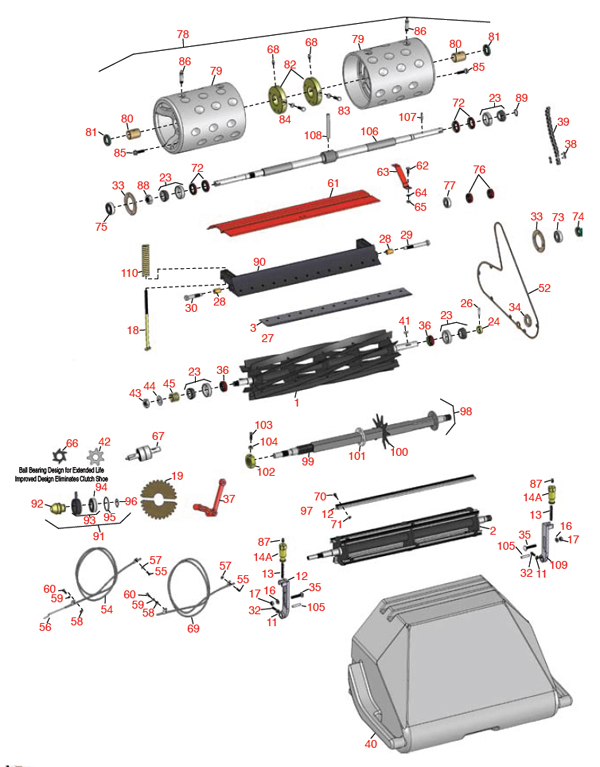

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed*
1 R120427 120427 Use R502768
1 R502768 502768 Reel - 9 Blade 1
1 R101355 5002605 Reel - 11 Blade 1
1 R101356 R&R Only Reel - 14 Blade 1
1 R503206 503206 Reel - 9 Blade 1
1 R101350 R&R Only Reel - 11 Blade 1
1 R101351 R&R Only Reel - 14 Blade 1
2 R101489 R&R Only Brush Reel - 22 Gm 1

R&R Bedknives Available, Lifetime Guaranteed*
3 R101258 Bedknife - Tournament 1/16 1
3 R5002887 5002887 Bedknife - Micro Cut 1
3 R101259 Bedknife - Super Thin 3/32 1
3 R101260 549504 Bedknife - Thin 1/8 1
3 R101261 549397 Bedknife - Thick 3/16 1
3 R101273 Bedknife - Tournament 1/16 1
3 R101264 503204 Bedknife - Super Thin 3/32 1
3 R101263 503205 Bedknife - Thin 1/8 1

R&R Overhaul Kits & Service Tools
8 R506557 R&R Only Overhaul Kit - Cutting Unit
8 R506558 R&R Only Overhaul Kit - Cutting Unit 84 - Up
8 R506559 R&R Only Overhaul Kit - Cutting Unit 1983 - Prior
10 R112695 112695 Carburetor Kit
R101272T Bedknife Screw Driver Tool

Other Parts Available
11 R443102 443102 Nut - 1/4-20 Yellow Zinc 2
12 R153980 153980 Bracket - RH Front Roller 1
13 R343616 343616 Stud 2
14 R343617 343617 Knob - Adjusting 2
14 R365009 365009 Knob - Adjusting Roller 2
15 R472518 472518 Plug - Adjusting Knob 2
16 R446136 446136 Washer - Lock 5/16 Zinc 2
17 R443106 443106 Nut - 5/16-18 Y/Zinc Plated 2
18 R332516 332516 Rod - Adjusting (Pgm) 2
19 R314184 314184 Disc - Clutch SET/2 1
19 R364880 364880 Use R314184
20 R500534 500534 Bearing - With Cup 2
21 R254-78 Bearing
22 R254-79 Cup - Bearing
23 R302-5 471214 Fitting - Grease
24 R325654 325654 Collar - Reel Shaft 1
26 R461173 461173 Pin - Grooved 1
27 R101272 402578 Screw - Bedknife 13
28 R545940 545940 Bushing 2
29 R347168 347168 Stud - Backing LH 3-1/2 1
30 R347169 347169 Stud - Backing RH 2-5/16 1
32 R352737 352737 Screw - Set 1/4x7/8 Sq.Head 2
33 R304747 304747 Gasket - Pgm 3
34 R304757 304757 Gasket - Pgm 1
35 R441674 441674 Screw - 5/16-18 x 1-3/4 Carriage 2
36 R304736 304736 Seal - Reel 2
37 R239043 239043 Lever - Clutch 1
38 R470503 470503 Link - Connecting NO.41 2
38 R4100 Link - Offset Chain NO.41
39 R500325 500325 Chain - w/Link Reel to Tract 1
39 R500326 500326 Chain - w/Link Pto to Reel 1
40 R68110 68110 Use R101540
40 R101540 R&R Only Grass Basket - Heavy Duty 1
41 R463113 463113 Key - Reel Hi Pro 2
42 R363014 363014 Verti-Cut Blade - 2-3/8 Dia
43 R444713 444713 Locknut - 5/8-18 Hex Center 1
44 R453020 453020 Washer - 5/8 SAE Flat Z 1
45 R363047 363047 Spring - Reel 1
52 R329037 329037 Gasket - Pgm 1
54 R154034 154034 Housing - Throttle Wire 1
55 R303962 303962 Stud - Throttle Wire 1
56 R342686 342686 Wire - Throttle 1
57 R402056 402056 Screw - Throttle Wire Stud 1
58 R403936 403936 Screw - 10-32 x 1/2THROTTLE 1
59 R446116 446116 Washer - Lock 10 1
60 R444312 444312 Nut - 10-32 1
61 R331722 331722 Use R500614
61 R500614 500614 Shield - Grass 1
62 R315183 315183 Brace - Grass Shield 84-PRI 1
62 R363328 363328 Brace - Grass Shield 85-ON 1
63 R400102 400102 Bolt - Hex Hd 1/4-20 x 3/8 GR5 1
64 R3253-3 446130 Washer - Lock 1/4 1
65 R443102 443102 Nut - 1/4-20 Yellow Zinc 1
66 R363808 363808 Verti-Cut Blade - Fits Groomer 85
67 R554571 554571 Bearing 2
68 R302-5 471226 Fitting - Grease 2
69 R163541 163541 Cable - Throttle 4 Cyc 1
70 R150425 R&R Only Bolt - Hex Hd 8-32 x 5/8 12
71 R3296-9 R&R Only Locknut - Comb 12
72 R337677 337677 Seal - Oil 2
72 R325652 325652 Seal - Inner (Cork) Roller 2
73 R303566 303566 Bearing - LH Wheel Support 1
74 R313777 313777 Seal - LH Wheel Support 1
75 R343667 343667 Bearing - Ball 1
76 R337678 337678 Seal - Clutch Shaft Bearing 1
76 R304751 304751 Seal - Cork Clutch Shaft 1
77 R303490 303490 Bearing - Clutch Shaft 1
78 R503268 50326 Roller - Traction
79 R163523 163523 Roller - Traction 2
80 R304569 304569 Bushing - Alum Traction Drum 2
81 R364170 364170 Seal 2
82 R338394 338394 Hub - Traction Roller 2
83 R400190 400190 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5 6
84 R446136 446136 Washer - Lock 5/16 Zinc 6
85 R364171 364171 Bolt - Flanged Hex 5/16-18 x 1-1/4 8
86 R471222 471222 Zerk - Grease w/ Ext. 2
87 R471219 471219 Zerk - Grease 2
88 R444742 444742 Nut - 3/4-16 Gripco Cntrloc 1
89 R458013 458013 Ring - Retaining Reel 1
90 R121855 121855 Use R220289
90 R220289 220289 Bed Bar - Bedknife 1
91 R101150 R&R Only Shifter - Clutch Assy 1
92 R101151 R&R Only Sleeve - Throwout 1
93 R101152 R&R Only Shifter - w/Bearing 1
94 R101153 R&R Only Bearing - Shifter 1
95 R101154 R&R Only Ring - Retaining Shifter 1
96 R101155 R&R Only Ring - Retaining 1
97 R150481 R&R Only Brush Assy - Brush Reel 4
98 R101162 R&R Only Conversion Kit - Vertical Mower 1
99 R101161 R&R Only Shaft - V-Cut Fits 22 Gm 1
100 R101160 R&R Only Verti-Cut Blade - Fits 22 Gm 26
100 R101160C R&R Only Verti-Cut Blade - Fits 22 Gm Carbide Tipped 26
101 R352221 352221 Spacer - Nylon V-Cut Shaft 76
102 R352437 352437 Nut - V-Cut Shaft 1
103 R412017 412017 Screw - Sq. Hd Set 1
104 R443106 443106 Nut - 5/16-18 Y/Zinc Plated 1
105 R461256 461256 Pin - 1/4 x 1 2
106 R502382 502382 Use R117036
106 R117036 117036 Shaft - Traction w/ Pin 1
107 R344982 344982 Pin - Traction Shaft Wheel 2
108 R308028 308028 Pin - Hardened Traction Shaft 1
109 R153979 153979 Bracket - LH Front Roller 1
110 R307360 307360 Bed Bar - Spring 2

2 Cycle Engine Parts
R312437 312437 Bearing
R325472 325472 Seal
R325473 325473 Bearing - Pgm Eng
R325485 325485 Seal - Pgm Eng.
R308594 308594 Gasket - Muffler
R309749 309749 Gasket - Cylinder Head
R309761 309761 Gasket - Exhaust Flange
R313336 313336 Gasket - Reed Plate
R325488 325488 Gasket - Carb Mounting
R326728 326728 Gasket - Muffler
R341792 341792 Gasket - Crankcase Head
R341793 341793 Gasket - 2 Cycle Engine
R341794 341794 Gasket - Backplate

2 Cycle Engine Gasket Kit
R500035 500035 Gasket - Kit Engine
