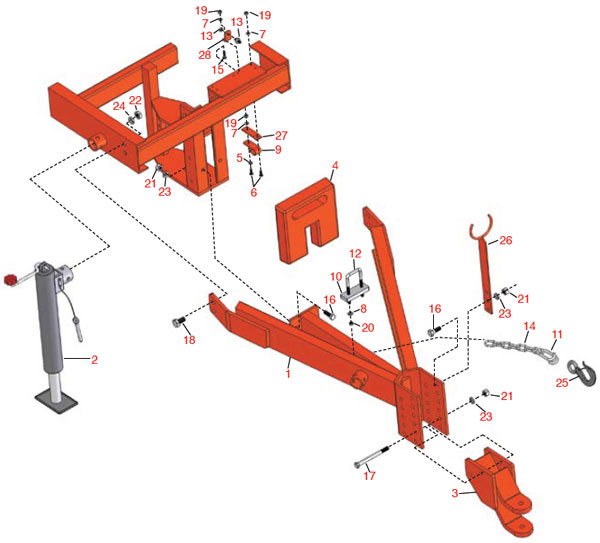

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R122411 122411 Tongue Assy - Black 1
2 R131606 131606 Jack 1
3 R131609 131609 Pin Hitch Assy - Black 1
4 R220273 220273 Weight - Orange - 40 Lb 4
5 R310266 310266 Washer - Flat 5/16 USS 1
6 R321-4 400108 Bolt - Hex Hd 1/4-20 x 3/4 2
7 R3253-3 446130 Washer - Lock 1/4 4
8 R3254-6 446142 Washer - Lock 3/8 2
9 R345666 345666 Clamp 1
10 R363226 363226 Clamp - Plated 1
11 R363260 363260 Lap Link - 3/8 2
12 R363267 363267 Plate - Black 1
13 R363290 363290 Union - Bulkhead w/Nut 1/2 1
14 R363746 363746 Chain - 1/4 x 6 Link Safety 1
15 R400112 400112 Bolt - Hex Hd 1/4-20 x 1-1/4 2
16 R400408 400408 Bolt - Hex Hd 1/2-13 x 1-1/2 4
17 R400430 400430 Bolt - Hex Hd 1/2-13 x 5-1/2 GR5 2
18 R400614 400614 Bolt - Hex Hd 5/8-11 x 1-3/4 4
19 R443102 443102 Nut - 1/4-20 Yellow Zinc 4
20 R443110 443110 Nut - 3/8-16 Hex. 2
21 R443118 443118 Nut - 1/2-13 Zinc 6
22 R443126 443126 Locknut - 5/8-11 Center Zinc 4
23 R446154 446154 Washer - Lock 1/2 /// R3253-7 6
24 R446166 446166 Lockwasher - 5/8 4
25 R503056 503056 Hook - Chain 1
26 R131631 131631 Support - Hose Assy Black 1
27 R363281 363281 Strap - Black 1
28 R363291 363291 Bracket - Black 1
