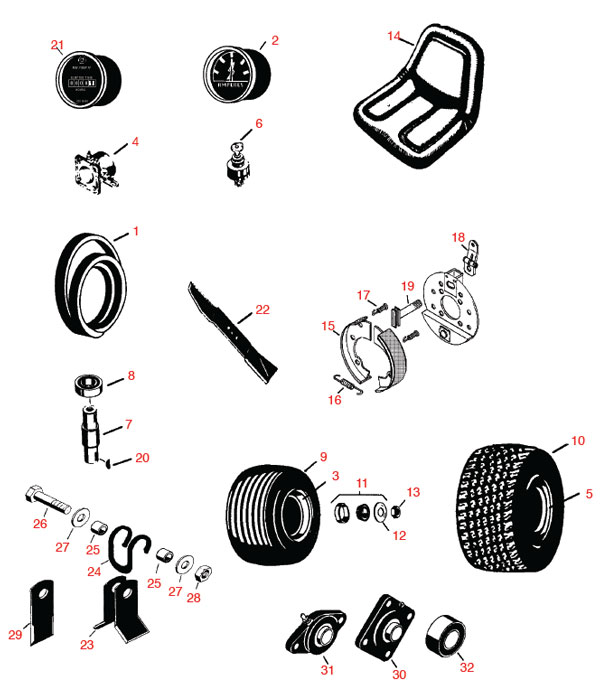

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R101400 395124 Belt - 50 Deck 1
1 R101405 390264 Belt - 60 Deck 1
2 R33-0990 107917 Meter - Amp 1
3 R121704 121704 Wheel - With Valve Stem 1
4 R131905 126070 Solenoid - Starter 1
5 R217-117 121924 Wheel - Heavy Duty 12 2
6 R12-8140 129846 Switch - Key 5 Lead 1
7 R339165 339165 Shaft - Spindle 60 Deck 3
8 R345050 345050 Bearing 6
8 R350759 350759 Bearing - Spindle 6
7 R351430 351430 Shaft - Spindle 50 Deck 3
7 R337547 337547 Shaft - Spindle 50 Deck 3
11 R500533 500533 Bearing - w/Cup And Ring 2
12 R311957 311957 Ring - Nilos 2
13 R444742 444742 Nut - 3/4-16 Gripco Cntrloc 1
14 R390319 390319 Seat - Molded Cushion-Grey 1
15 R501150 501150 Shoe - Brake Set / 2 2
16 R353869 353869 Spring - Shoe Return 2
17 R353868 353868 Spring - Shoe Hold Down 4
18 R501151 501151 Use R554526
18 R554526 554526 Lever - Brake 2
19 R546516 546516 Camshaft - Brake 2
20 R463017 463017 Key - Spindle Shaft 6
21 R358825 358825 Use R162723
21 R162723 162723 Meter - Hour 1
22 R330720 330720 Rotary Blade - Fits 50 3
22 R500905 500905 Use R330720
22 R390513 390513 Rotary Blade - Fits 50 3
23 R337599 337599 Blade - Flail 180
24 R362226 362226 Shackle 90
25 R362227 362227 Spacer - Flail Blade 180
26 R400234 400234 Bolt - Hex Hd 5/16-24 x 2 GR5 90
27 R310266 452006 Washer - Flat 5/16 USS 180
27 R3256-23 452006 Use R310266 180
27 R453009 452006 Washer - Flat 5/16 SAE 180
28 R444754 444754 Locknut - 5/16-24 Center 90
29 R337773 337773 Verti-Cut Blade - 90
30 R362229 362229 Bearing - Rotor Assy 4 Bolt 2
31 R362230 362230 Bearing - Roller 2
32 R362000 362000 Bearing - Drive Pulley 1
