Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

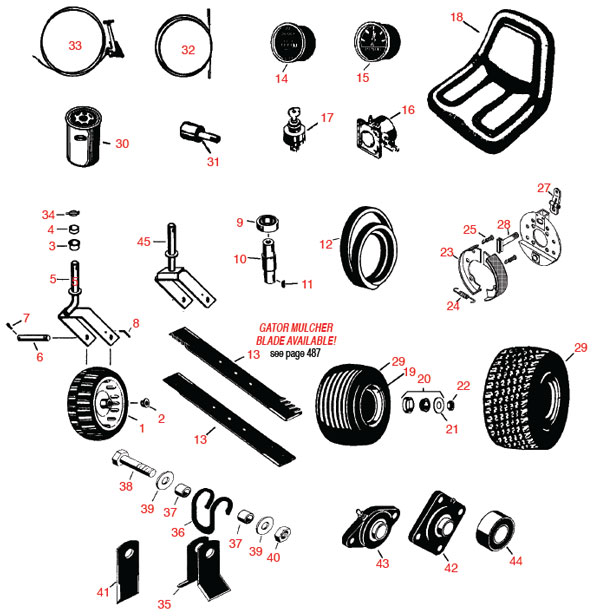

1 R122464 122317 Tire - w/Wheel Assy Caster 2
2 R122317B R&R Only Bushing - Metal 4
2 R549635 549635 Bushing - Caster Wheel 4
3 R346149 346149 Bushing - Caster Fork 4
4 R360529 360529 Washer 4
5 R131391 131391 Caster Fork -
Tech Note: 1" diameter shaft, use on front forks only
 2
6 R362150 362150 Shaft - Axle Castor (72) 2
7 R460050 460050 Pin - Cotter 3/16 x 1-1/4 2
8 R351494 351494 Pin - Anti-Rotation 2
9 R350759 350759 Bearing - Spindle 6
10 R337341 337341 Shaft - Spindle 3
11 R463009 463019 Key - Spindle Shaft 6
12 R390457 390457 Belt - Deck 1
13 R390515 390515 Rotary Blade - 72 Deck 3
13 R390515M R&R Only Blade - Gator Mulcher 3
14 R358825 358825 Use R162723
14 R162723 162723 Meter - Hour 1
15 R33-0990 107917 Meter - Amp 1
16 R131905 126070 Solenoid - Starter 1
17 R27-2360 131095 Switch - Key 6 LEAD.9/16 Mount 1
18 R390319 390319 Seat - Molded Cushion-Grey 1
19 R121704 121704 Wheel - With Valve Stem 1
20 R500533 500533 Bearing - w/Cup And Ring 2
21 R311957 311957 Ring - Nilos 2
22 R444742 444742 Nut - 3/4-16 Gripco Cntrloc 1
23 R501150 501150 Shoe - Brake Set / 2 2
24 R353869 353869 Spring - Shoe Return 2
25 R353868 353868 Spring - Shoe Hold Down 4
26 R217-117 Wheel - Heavy Duty 12
27 R501151 501151 Use R554526
27 R554526 501151 Lever - Brake
27 R554526 554526 Lever - Brake 2
28 R546516 546516 Camshaft - Brake 2
29 R501307 501307 Brake Assy
30 R42-9030 550556 Filter - Oil Diesel Engine 1
30 R353937 353937 Filter - Cartridge Oil 1
31 R361850 361850 Bearing - Fan 1
32 R162732 162732 Cable - Steering 2
33 R130956 130956 Control - Throttle 1
34 R3290-384 361391 Pin - Lynch Heavy Duty 2
35 R337599 337599 Blade - Flail 180
36 R362226 362226 Shackle 90
37 R362227 362227 Spacer - Flail Blade 180
38 R400234 400234 Bolt - Hex Hd 5/16-24 x 2 GR5 90
39 R310266 452006 Washer - Flat 5/16 USS 180
39 R3256-23 452006 Use R310266 180
39 R453009 452006 Washer - Flat 5/16 SAE 180
40 R444754 444754 Locknut - 5/16-24 Center 90
41 R337773 337773 Verti-Cut Blade - 90
42 R362229 362229 Bearing - Rotor Assy 4 Bolt 2
43 R362230 362230 Bearing - Roller 2
44 R362000 362000 Bearing - Drive Pulley 1
45 R131716 131716 Caster Fork - Solid Wheel
Tech Note: 1-1/4" diameter shaft
 2
46 R553568 553568 Bushing - Flanged Caster
47 R63-8580 Bearing - Roller Rear Wheel
48 R254-79 Cup - Bearing
49 R254-78 Bearing
50 R232-24 Stem - Valve w/ Cap
