Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

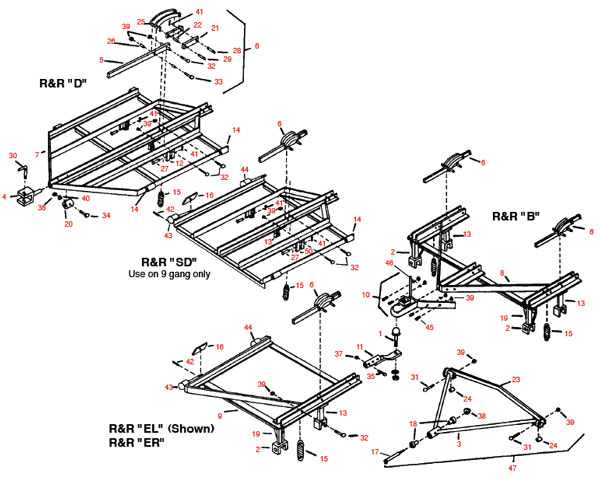

B R012363 012363 Frame - B Incl. Hardware
EL R012358 012358 Frame - El Incl Hardware
ER R012357 012357 Frame - Er Incl Hardware
D R012339 012339 Frame - D Incl Hardware
SD R012366 012366 Frame - Special D Assy RH
SD R012307 012307 Frame - Special D Assy LH

Complete Frame Assemblies
R020120 3 GANG UNIT Frame - 3 Gang Assy
R005729 5 GANG UNIT Frame - 5 Gang Assy
R007226 7 GANG UNIT Frame - 7 Gang Assy
R012676 9 GANG UNIT Frame - 9 Gang Assy

Other Parts Available
1 R110466 005929 Hitch - Ball Assy
2 R110467 012343 Post - Pull For Yoke
3 R012772 012772 Use R110469G
3 R110469G 012772 Yoke - Pull
4 R012336 012336 Use R110480G
4 R110480G 012336 Jaw - w/ Stem
5 R110536 R&R Only Handle
6 R012330 012330 Use R110537G
6 R110537G 012330 Latch Assy - Over Center
7 R116494 R&R Only Frame - D
8 R119061 R&R Only Frame - B
9 R126096 R&R Only Frame - E Right
9 R126097 R&R Only Frame - E Left
10 R129925 R&R Only Hitch - Includes Hardware
11 R153005 R&R Only Extension - Hitch
12 R153249 012766 Post - Pull Fits D Frame
13 R012303 012303 Use R153250
13 R153250 012303 Post - Unit Weldment
14 R012312 012312 Hinge - Side
15 R316724 006752 Spring - Unit Tension
16 R317008 R&R Only Latch - Hinge
17 R318005 005774 Bolt
18 R318006 005264 Bushing - Rubber
19 R318970 R&R Only Plate - Pull Post Support
20 R318979 R&R Only Collar
21 R318983 R&R Only Link - Over Center Latch
22 R318985 R&R Only Spacer - Over Center Latch
23 R318993 012773 Brace - Pull Yoke
24 R318994 012311 Spacer - Yoke Jaw
25 R319051 R&R Only Link - Lift O/Center Latch
26 R319053 R&R Only Spacer - Over Center Latch
27 R325390 006610 Pin - Rod End
28 R325539 R&R Only Pin - Over Center Latch
29 R325540 R&R Only Pin - Over Center Latch
30 R360341 002489 Pin - Coupling
31 R400310 005751 Bolt - Hex Hd 3/8-24 x 2-1/2
32 R400312 R&R Only Bolt - Hex Hd 3/8-24 x 3
33 R400314 R&R Only Bolt - Hex Hd 3/8-24 x 3-1/2
34 R400346 R&R Only Bolt - Hex Hd 7/16-14 x 2-1/2
35 R325-14 005754 Bolt - Hex Hd 1/2-13 x 3-1/2
36 R443114 R&R Only Nut - 7/16 Hex Yellow Zinc
37 R443118 005755 Nut - 1/2-13 Zinc
38 R444730 005770 Nut - 7/16-20 Hex
39 R444744 005753 Locknut - 3/8-24
40 R446146 R&R Only Washer - Lock 7/16 Med.
41 R460028 003107 Pin - Cotter 1/8 x 1
42 R461416 R&R Only Pin - Roll
43 R502757 012351 Hinge - Front
44 R502758 012355 Hinge - Rear
45 R400296 R&R Only Bolt - Hex Hd 3/8-24 x 7/8
46 R3254-6 R&R Only Washer - Lock 3/8
47 R012319 012319 Use R500107G
47 R500107G 012319 Yoke - Pull Assy
48 R119058G R&R Only Frame - Special D RH
49 R119059G R&R Only Frame - Special D LH
50 R153248 R&R Only Post - Pull Fits Special D
51 R510690 Bolt - Carriage 3/8-16 x 1 w/Locknut
