Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

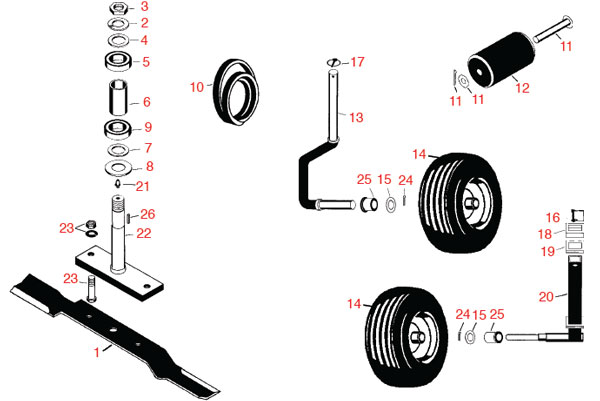

1 RTD1308 TD1308 Rotary Blade 9
1 RTD-1740 TD-1740 Rotary Blade - 23 Low Cut 9
2 RTD-1002 TD-1002 Washer - 1 LH SET/3 9
3 RTD-1003 TD-1003 Nut - LH Spindle 9
4 RTD-1301 TD-1301 Washer - 1 Shim SET/9 9
5 R350759 TD-1302 Bearing - Spindle 9
6 RTD-1304 TD-1304 Spacer - Spindle Brg 65DECK 9
7 RTD-1305 TD-1305 Washer - 1 Shim SET/9 9
8 RTD-1306 TD-1306 Shield - Dirt SET/3 9
9 RTD-1701 TD-1701 Bearing - Ball 9
10 RTD-1315 TD-1315 Belt - Deck 65 6
11 RTD-1316 TD-1316 Pin - w/Cotter Pin 4 Roller 2
12 RTD-1026 TD-1026 Roller - 4 UHMW Anti-Scalp 2
13 RTD-1317 TD-1317 Caster Fork - Front 6
14 RTD-1318 TD-1318 Use RTD-1788
14 RTD-1788 TD-1788 Tire - w/Wheel Assy 10
15 RTD-1320 TD-1320 Spacer - Caster Wheel (10) 20
16 RTD-1038 TD-1038 Clip - 5/16 Quick SET/4 4
17 RTD-1038RD TD-1038RD Pin - 5/16 Lynch SET/4 6
18 RTD-1039 TD-1039 Spacer - 1 Sq SET/6 12
19 RTD-1040 TD-1040 Spacer - Sq 3/8 SET/6 12
20 RTD-1352 TD-1352 Caster Fork - Rear 4
21 R302-5 Fitting - Grease
22 RTD-1307 TD-1307 Spindle - Blade 9
23 R140524 Bolt - w/Lockwaser And Nut 18
24 R460052 Pin - Cotter 3/16 x 1-1/2 10
25 RTD-1787 TD-1787 Bushing - Wheel 20
26 R140523 Key - Sq Spindle 9
