Search Parts

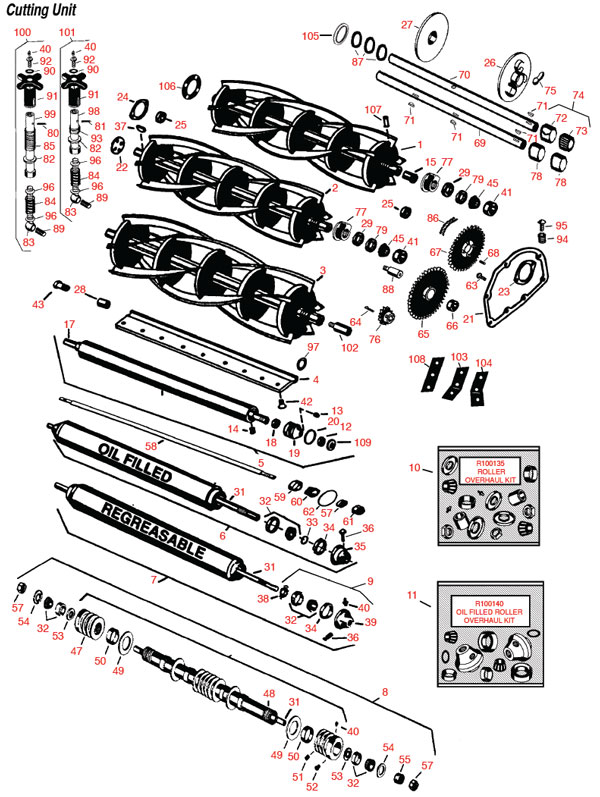

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

R&R Reels Available, Lifetime Guaranteed
1 RAG-25 AG-25 Reel - 6 Blade 1
1 RAG-28 AG-28 Reel - 8 Blade 1
2 R34 AR-34 Reel - 5 Blade
Tech Note: Ground Driven
 1
2 RAR115 AR-115 Use RAR126
2 RAR126 AR-126 Reel - 6 Blade
Tech Note: Ground Driven
 1
3 RAR87 AR87 Reel - 4 Blade 1
3 R190655 R&R Only Reel - 5 Blade Hi-Cut 1

R&R Bedknives Available, Lifetime Guaranteed
4 R190650 114-0 Bedknife - Single Lip 1
4 R190650L 114-0 Bedknife - Single Lip Low Cut 1

R&R Rollers Available
5 RAG-40 AG-40 Roller - Fits Hyd Unit 1
6 R700520 R&R Only Roller - 3 1
7 R700525 R&R Only Roller - 3 Dia Regreasable 1
8 R700526 R&R Only Roller - 3 Grooved 1

R&R Overhaul Kits Available
9 R700505 R&R Only Conversion Kit - Roller 1
10 R100135 R&R Only Overhaul Kit - Roller
11 R100140 Overhaul Kit - Oil Filled Roller

Other Parts Available
12 R148-0 148-0 Seal - Roller 2
13 R302-5 173-0 Fitting - Grease 2
14 R150691 182-0 Screw - Set Nyloc 3/8-16 x 3/8 6
15 RG-23 G-23 Spline 2
17 RG-42 G-42 Shaft - Roller 1
18 RG-43 G-43 Bearing - Roller 2
19 RG-44 G-44 Housing - Roller 2
20 RG-57 G-57 O-Ring - Roller Housing 2
21 R11-0 11-0 Gasket - Cover 1
22 R21-0 21-0 Gasket - Lapping Hole 1
23 R22-0 22-0 Gasket - Fits R-38 Housing 1
24 R25-0 25-0 Gasket - R-46 Housing 1
25 R152-0 152-0 Seal - Grease 2
26 RR-39 R-39 Retainer - Pawl LH 1
27 RR-40 R-40 Retainer - Pawl RH 1
28 R125-0 125-0 Bushing - Backing Bar 2
28 R125-0X 125-0X Bushing - Oversized For Bed Bar 2
29 R12-0 12-0 Seal - Reel 2
31 R700521 R&R Only Shaft - 3 Dia Roller 1
32 R500534 R&R Only Bearing - With Cup 2
33 R459007 R&R Only O-Ring - Roller 2
34 R328062 R&R Only Seal - Roller 2
35 R500574 R&R Only Collar - Roller 2
36 R412063 R&R Only Screw - Sq. Hd. Set 2
37 R57-0 57-0 Key - Woodruff 1
38 R700502 R&R Only Retainer - Grease 2
39 R700501 R&R Only Roller End - Regreasable 2
40 R302-5 R&R Only Fitting - Grease 2
41 R302755 151-0 Cup - Bearing. Reel 2
42 R190652 Screw - Regular
42 R190653 56-0 Screw - Nyloc 9
43 R124-0 124-0 Stud - Nyloc Backing Bar 2
45 R150-0 150-0 Bearing - Reel 2
47 R150675 R&R Only Roller - 3 Threaded Roller End 2
48 R150682 R&R Only Tube - Threaded 2
49 R150673 R&R Only Washer - 3 Repairable Roller
50 R150671 R&R Only Spacer - 2 3/4 / 3 Rollers
50 R150676 R&R Only Spacer - Grooved Roller 1.25
51 R150691 R&R Only Screw - Set Nyloc 3/8-16 x 3/8 4
52 R170714 R&R Only Fitting - Pressure Relief 2
53 R253-122 R&R Only Seal - Inner Roller Assy. 2
54 R253-117 R&R Only Seal - Outer Triple Lip 2
55 R150674 R&R Only Sleeve - Wear 3/4 Plated 2
56 R3220-7 R&R Only Nut - 3/4-16 Jam Zinc 2
57 R3296-15 G-371 Locknut - 3/4-16 Nylon Jam 2
58 RG-364 G-364 Shaft - Roller - 7/8 Dia. 1
59 R254-79 G-372 Cup - Bearing 2
60 R254-78 G-373 Bearing 2
61 RG-367 G-367 Seal - Fits O.E.M. Roller 2
62 RG-366 G-366 O-Ring - Oem 3 Roller 2
63 R70-0 70-0 Bolt - Soc Hd Cap 3/8-16 x 2-1/4 2
64 R50-0 50-0 Pin - Cotter 3/16 x 2 1
65 RAR-35 AR-35 Sprocket - Int. 37-16 Tooth 1
66 R81-0 81-0 Bushing - Int. Sprocket 2
67 RAR-36 AR-36 Sprocket - Drive 34 Tooth 1
68 R136-0 136-0 Pin - Hardened Drive Sprocket 4
69 R213-0 213-0 Shaft - Rubber Tire Drive 1
70 R113-0 113-0 Shaft - Steel Drum Roller 1
71 R170-0 170-0 Key - Drive Shaft
72 R92-0 92-0 Sleeve - Steel Drum Roller 2
73 R91-0 91-0 Bearing - Steel Drum Roller 2
74 RAR-18 AR-18 Bearing - w/Sleeve 2
75 RR-18 R-18 Pawl - Drive 6
76 R132-0 132-0 Sprocket - Pinion 12 Tooth 1
77 RR-48 R-48 Collar - Bearing Adj. 1
78 R2-0 2-0 Bearing - Drive Shaft 4
79 R1-0 1-0 Washer - Seal Retainer 2
80 R102-0 102-0 Pin - Drive Lock Adj. Handle 2
81 R104-0 104-0 Pin - Roll 3/16 x 1 2
82 R105-0 105-0 Washer - Roller 1
83 R107-0 107-0 Eyebolt 2
84 R108-0 108-0 Spring - Lower - Bed Bar 2
85 R122-0 122-0 Spring - Upper Bed Bar Adj 2
86 R138-0 138-0 Chain - Drive No. 50 2
87 R179-0-A 179-0-A Washer - 1/32 Roller Spacer
87 R179-0-B 179-0-B Washer - 1/16 Roller Spacer
87 R179-0-C 179-0-C Washer - 1/8 Roller Spacer
88 R79-0 79-0 Stud - Intermediate Spkt 1
89 R97-0 97-0 Pin - Roll Eye Bolt 2
90 R187-0 187-0 Washer - Flat 7/16 SAE 2
91 RR-20 R-20 Handle - Adjusting
92 R209-0 209-0 Bolt - w/Grease Fitting 2
92 R100-0 100-0 Use R209-0
93 RC-213 C-213 Spring - Upper Bed Bar Hydra
94 R29-0 29-0 Spring - Handle Stop 1
95 R30-0 30-0 Clevis Pin - 5/8 x 2 1
96 R43-0 43-0 Washer - Eyebolt 4
97 R76-0 76-0 Washer - Front Tie Rod 6
98 RAC-212 AC-212 Sleeve - Adjuster 5-1/2 2
99 RAR-11 AR-11 Sleeve - Bed Bar Adjustment 2
99 RAR-13 AR-13 Sleeve - Adjustment Hi-Cut 2
100 RAR-30 AR-30 Adjuster - Assy Fits 7 Reels 2
100 RAR-38 AR-38 Adjuster - Assy Fits 9 Reels 2
101 RAG-96 AG-96 Adjuster - Assy Fits Hydra-Gang 2
102 R201-0 201-0 Stud - Backlapping 1
103 RG-1526 G-1526 Blade - Pulverizer RH
104 RG-1527 G-1527 Blade - Pulverizer LH
105 R153-0 153-0 Cap - Thrust Steel Roller Drive 2
106 RG-32 G-32 Gasket - Hyd Unit Bearing Housing 1
107 R95-2783/PIN C-775 Pin - Roll Same As RC-775 1
107 RC-775 C-775 Use R95-2783/PIN 1
108 RG78 G78 Verti-Cut Blade - 1-1/8 Hole Cnt 54
109 R105-0 105-0 Washer - Roller 2
