Item # R&R

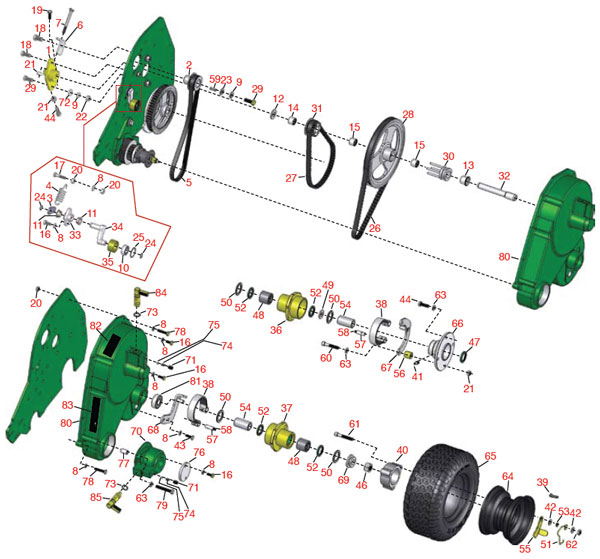

Part No. 		Description Qty
Req
1 R2000148 Bracket - Bearing 1
2 R3007847 Pulley - 7 Rib Micro V 1
3 R2809667 Bracket - Idler - Spring 1
4 R2809669 Spring - Idler 1
5 R2810713 Belt - 7 Rib Micro V 1
6 R3009434 Bracket - Belt Adjusting 1
7 R2500485 Bolt - Hex Hd 5/16-18 x 3 1
8 R3253-3 Washer - Lock 1/4 14
9 R3254-6 Washer - Lock 3/8 3
10 R344545 Bearing - Roller Brush Brkt 1
11 R352936 Bushing - Bronze 2
12 R359864 Flat Washer - Hardened 5/8 x 1.100
13 R366725 Bushing - Flanged 1
14 R367553 Bearing - Needle 1
15 R367554 Bearing - Needle 2
16 R400106 Bolt - Hex Hd 1/4-20 x 5/8 4
17 R400116 Bolt - Hex Hd 1/4-20 x 1-1/2 1
18 R400254 Bolt - Hex Hd 3/8-16 x 1/2 2
19 R434031 Bolt - Soc Hd Cap 1/4-20 x 3/4 Nyloc 1
20 R443102 Nut - 1/4-20 Yellow Zinc 10
21 R443106 Nut - 5/16-18 Y/Zinc Plated 3
22 R443110 Nut - 3/8-16 Hex. 2
24 R458006 Ring - Retaining 2
25 R458105 Ring - Retaining 1
26 R5001124 Belt - 112 Tooth .460 Wide 1
27 R5002403 Belt - 80 Tooth x 17mm WIDE(.669) 1
28 R503685 Pulley - 80 Tooth 1
29 RF3205 Bolt - Hex Hd 3/8-16 x 1 2
30 R1000056 Traction Clutch 1
31 R5002447 Pulley - 18 Tooth 1
32 R3001273 Shaft - Belts 1
33 R2810550 Bracket - Idler 1
34 R2809665 Idler - Arm 1
35 R2809666 Pulley - Belt Idler 1
36 R1000476 Hub Assy - RH 1
37 R1000477 Hub Assy - LH 1
38 R164056 Band - Brake 2
39 R232-27 Stem - Valve w/ Cap 2
40 R271920 Spacer - Wheel 2
41 R302-5 Fitting - Grease 1
42 R453009 Washer - Flat 5/16 SAE 12
43 R321-4 Bolt - Hex Hd 1/4-20 x 3/4 5
44 R434004 Screw - Soc Hd 5/16-18 x 1 1
45 R3253-3 Washer - Lock 1/4 2
46 R3296-33 Locknut - 5/8-18 ESNA Jam 2
47 R337678 Seal - Clutch Shaft Bearing 1
48 R338766 Bearing - Clutch Differential Shaft 1
49 R361451 Flat Washer 1 x 1.5 Hardened Thrust 1
50 R366697 Spacer - Bronze Thrust 4
51 R366704 Spring - Wheel Lock 2
52 R366705 Seal - Grease 4
53 R366716 Spacer - Wheel 6
54 R366717 Clutch Sleeve - Wheel 2
55 R366719 Latch - Wheel 2
56 R366737 Spacer - Wheel 2
57 R366742 Pivot Pin w/Set Screw - Brake Band 2
58 R415513 Screw - Set 1/4-20 x 1/2 Cup Pt 2
59 R367082 Key - 3/16 Sq. x 3/4 1
60 R434032 Screw - Soc Hd 5/16-18 x 1-3/4 2
61 R434049 Bolt - Soc Hd Cap 5/16-18 x 2 6
62 R444718 Nut - 5/16-18 Center Lock YZ 6
63 R446136 Washer - Lock 5/16 Zinc 10
64 R5002905 Wheel Assy - 3x5 2
65 R554847 Use RCT5753331 2
65 RCT5753331 Tire - 11x4.00-5 Nhs (2 Ply) Carlisle Turf Trac R/S 2
66 R132658 Housing - Parking Brake 1
67 R132663 Bracket - Brake Mounting RH 1
68 R164063 Bracket - Brake Mounting LH 1
69 R366716 Spacer - Wheel 2
70 R220317G Shifter Housing - Green 1
71 R250413 Screw - Set 3/8-16 x 1/2 4
72 R453011 Washer - Flat 3/8 SAE Y/Zinc 2
73 R339910 O-Ring 2
74 R343848 Spring 4
75 R343850 Ball Bearing - 1/4 4
76 R366710G Cover - Green 1
77 R366715 Spacer 2
78 RP1471-1 Bolt - Hex Hd 1/4-20 x 1 4
79 R400196 Bolt - Hex Hd 5/16-18 x 2 2
80 R503638G Belt Cover - Green 1
80 R50368G Use R503638G 1
81 RA203603 Bearing - Roller 1
82 R2811092 Decal - Warning 1
83 R3001792 Decal - Reel Clutch 1
84 R3000660 Traction Clutch Lever 1
85 R3004402 Lever - Shifter Shaft 1
86 R366653 Spacer - Clutch 1
