Item # R&R

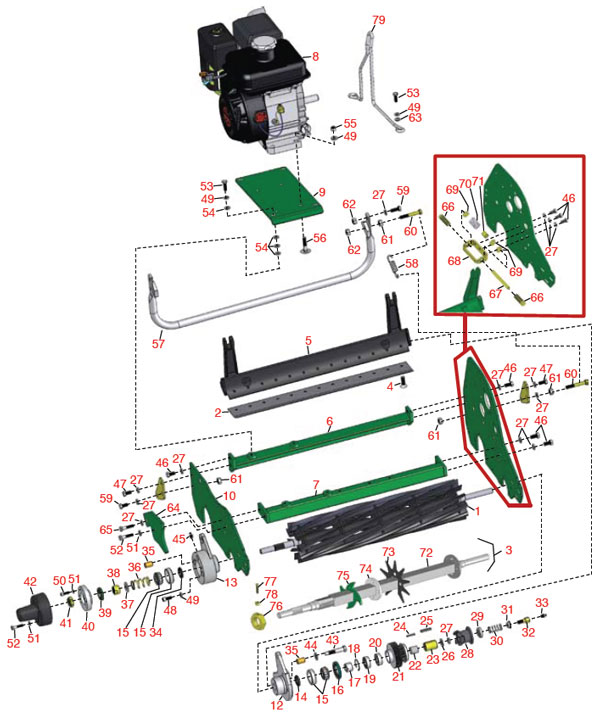

Part No. 		Description Qty
Req

R&R Reels Available, Lifetime Guaranteed
1 R5000095 Reel - 11 Blade 1
1 R5000148 Reel - 11 Blade 1
1 R503616 Use R5000148
1 R5000416 Reel - 11 Blade 1
1 R101500 Reel - 9 Blade 1
1 R5000417 Reel - 7 Blade 1

R&R Bedknives Available, Lifetime Guaranteed
2 R5000098 Bedknife - Low Cut 1
2 R5002888 Bedknife - Tournament 1
2 R101430 Bedknife - Micro Cut 1
2 R5001056 Use R5002888
2 R101258 Bedknife - Tournament 1/16 1
2 R101259 Bedknife - Super Thin 3/32 1
2 R101260 Bedknife - Thin 1/8 1
2 R101261 Bedknife - Thick 3/16 1
2 R5002887 Bedknife - Micro Cut 1
2 R5000413 Bedknife - Thin 1/8 1
2 R5000414 Bedknife - Thick 3/16 1
2 R5000141 Bedknife - Heavy 1

Conversion Kits Available
3 R101164 Conversion Kit - Vertical Mower 1

Other Parts Available
4 R101272 Screw - Bedknife 13
4 R3005515 Shim Washer - 5/16 x 7/8 x .020
5 R5000102 Bed Bar - 18 1
5 R5000457 Bed Bar - 22 1
5 R5000412 Bed Bar - 26 1
6 R1000020G Rear Crossbar - 18 In Green 1
6 R1000838G Rear Crossbar - 22 In - Green 1
6 R1000021G Rear Crossbar - 26 In - Green 1
7 R1000022G Front Crossbar - 18 In - Green 1
7 R1000839G Front Crossbar - 22 In - Green 1
7 R1000023G Front Crossbar - 26 In - Green 1
8 RHEGX120UT1QXS2 Honda Engine - GX120 QXS2 1
9 R5002848G Engine Base - Green 1
10 R2811122G Frame - RH - Green 1
11 R2811121G Frame - LH - Green 1
12 R1000446 Bearing Housing - LH 1
13 R1000447 Bearing Housing - RH 1
14 R366650 Seal 1
15 R500534 Bearing - With Cup 2
16 R366649 Seal 1
17 R366645 Spacer - Reel 1
18 R458461 Ring - Snap Fits Groomer 1
19 R366652 Bearing 1
20 R365229 Bearing 1
21 R2811185 Pulley 1
22 R366646 Spacer 1
23 R340462 Drive Coupling 1
24 R345556 Key - Sq 1/8 x 1 1
25 R320774 Key - Sq 3/16 x 1-1/4 2
26 R366653 Spacer - Clutch 1
27 R3254-6 Washer - Lock 3/8 1
28 R5002727 Clutch - Reel 1
29 R3004368 Retainer - Spring 1
30 R3006061 Spring 1
31 R3004369 Retainer - Spring 1
32 R366651 Bolt - Special 1
33 R471217 Fitting - Grease 1
34 R366650 Seal 1
35 R545940 Bushing 2
36 R363047 Spring - Reel 1
37 R304745 Washer - Reel 1
38 R364900 Nut - Reel Tension 1
39 R364170 Seal 1
40 R164041 Seal Carrier - Reel - Incl Seal 1
41 R3296-15 Locknut - 3/4-16 Nylon Jam 1
42 R2000064 Cover - Reel 1
43 R347169 Stud - Backing RH 2-5/16 2
44 R454017 Shim - Bed Bar Bolt 2
45 R302-5 Fitting - Grease 1
46 R400258 Bolt - Hex Hd 3/8-16 x 3/4 9
47 RF3205 Bolt - Hex Hd 3/8-16 x 1 2
48 R434036 Screw - Soc Hd 5/16-18 x 1-1/4 3
49 R446136 Washer - Lock 5/16 Zinc 3
50 R434028 Bolt - Soc Hd Cap 1/4-20 x 3/4 3
51 R3253-3 Washer - Lock 1/4 5
52 R400112 Bolt - Hex Hd 1/4-20 x 1-1/4 2
53 R322-5 Bolt - Hex Hd 5/16-18 x 1 6
54 R348849 Shim Washer - 5/16 x 7/8 x .010
54 R364263 Shim Washer - 5/16 x 7/8 x 1/16
54 R364441 Washer - Flat 5/16x7/8
54 R366641 Use R364441
55 R443106 Nut - 5/16-18 Y/Zinc Plated 4
56 R441677 Bolt - Carriage 5/16-18 x 1-1/2 4
57 R1000018 Kickstand - 18 In 1
57 R132674 Kickstand - 22 In 1
57 R1000019 Kickstand - 26 In 1
58 R364164 Spring - Kickstand 2
59 R400260 Bolt - Hex Hd 3/8-16 x 7/8 3
60 R400268 Bolt - Hex Hd 3/8-16 x 1-3/4 2
61 R3218-3 Nut - 3/8-16 Jam 4
62 R444850 Nut - 3/8-16 Jam Center Lock 3
63 R364441 Washer - Flat 5/16x7/8 2
64 R3001644G Weight - Green 1
65 R400264 Bolt - Hex Hd 3/8-16 x 1-1/4 1
66 R400264 Bolt - Hex Hd 3/8-16 x 1-1/4 4
67 R366727 Rod - Bedknife Block 2
68 R3001600 Block - Bedknife Adjusting 2
69 R366653 Spacer - Clutch 6
70 R366709 Spring 2
71 R367512 Spacer - Bedknife Adj 2
72 R101163 Shaft - V-Cut Fits Jac 422/522 1
73 R101160 Verti-Cut Blade - Fits 22 Gm 26
73 R101160C Verti-Cut Blade - Fits 22 Gm Carbide Tipped 26
74 R352221 Spacer - Nylon V-Cut Shaft 76
75 R101230 Spacer - 1/4 Ventilated V-Cut 76
76 R352437 Nut - V-Cut Shaft 1
77 R412017 Screw - Sq. Hd Set 1
78 R443106 Nut - 5/16-18 Y/Zinc Plated 1
79 R3006118 Lift Hook 1
