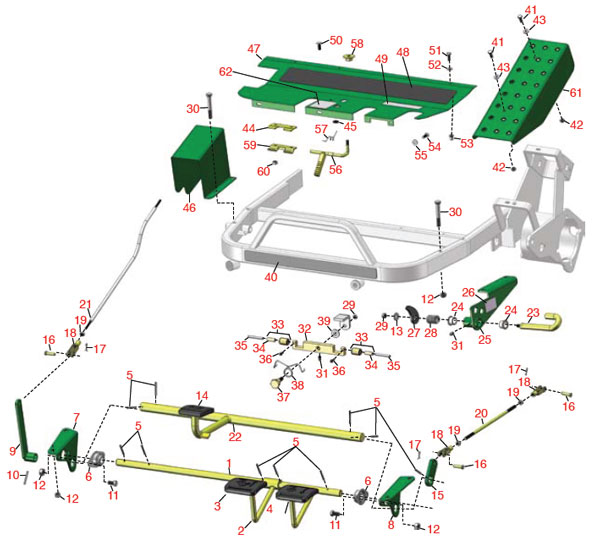

Item # R&R
Part No.
  Description
1 R150289 Shaft - Cutting Control Assy
2 R106-6394 Mow Pedal Assy
3 R93-7630 Rubber Foot Pad - Mow
4 R93-7631 Rubber Foot Pad - Lift
5 R32121-35 Pin - Spring Roll 5/32 x 1-1/2
6 R27-2320 Bearing
7 R88-9630G Bracket - Black
8 R88-9640G Bracket - Black
9 R49-6200 Cutting Lever - Green
10 R32121-6 Pin - Roll 3/16 x 1-1/4
11 R3234-1 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4
12 R3296-59 Locknut - 3/8-16 Nylon Jam
13 R453011 Washer - Flat 3/8 SAE Y/Zinc
14 R93-7629 Rubber Foot Pad - Brake
15 R10-8100-01 Strap - Shaft
16 R283-61 Pin - Clevis 5/16 x 1-1/8
17 R11M7012 Pin - Cotter 1/8 x 5/8
18 R282-2 Yoke
19 R3220-2 Nut - Jam - 5/16-24
20 R27-2270 Rod - Adjustment
21 R49-5430 Control Rod - Cutting Lever
22 R83-0160 Shaft - Brake Assy
23 R93-9903 Pin - Mow Lockout
24 R3-1506 Bushing
25 R93-9901G Lockout Bracket - Black
26 R93-9898 Decal - Lock
27 R93-9904 Mow Arm - Lockout
28 R76-0410 Spring - Compression - Lockout Pin
29 R3296-59 Locknut - 3/8-16 Nylon Jam
30 R323-13 Bolt - Hex Hd 3/8-16 x 2-3/4 GR5
38 R83-0080 Spring - Pivot - Lift
31 R302-5 Fitting - Grease
32 R150273 Lift - Pivot Assy
33 R150274 Roller Assy - Lift Pivot
34 R150275 Bushing - Bronze
35 R150276 Pin - Dowell - Removable
36 R150425 Bolt - Hex Hd 8-32 x 5/8
37 R83-2590 Bolt - Shoulder Eccentric
38 R83-0080 Spring - Pivot - Lift
39 R453011 Washer - Flat 3/8 SAE Y/Zinc
40 R150596 Decal - R&R Versa-Green 1860
41 R321-4 Bolt - Hex Hd 1/4-20 x 3/4
42 R32128-33 Nut - 1/4-20 Flanged Serr
43 R3256-22 Washer - Flat 1/4 Yellow
44 R10-7880 Hinge - Upper
45 R150284 Rubber Grommet
46 R49-6110G Rod Guard - Green
47 R83-0640G Footrest Plate - Green
48 R49-6120 Pad - Anti-Skid Foot Rest
49 R93-8075 Decal - Mow/Lift
50 R3229-11 Bolt - Carriage 1/4-20 x 5/8
51 R3274-31 Screw - Button Hd Soc Cs 1/4-20x5/8
52 R453023 Washer - Flat 1/4
53 R95-5981TS Thread-Sert 1/4-20
54 R400106 Bolt - Hex Hd 1/4-20 x 5/8
55 R3253-3 Washer - Lock 1/4
56 R10-7850 Parking Latch - Brake
57 R10-8140 Spring - Torsion - Brake Latch
58 R32141-111 Nut - Special HF Flanged
59 R10-7890 Hinge - Lower
60 R301504 Locknut - ESNA 1/4-20
61 R83-0200G Cover Plate - LH - Green
62 R93-8062 Decal - Parking Brake
