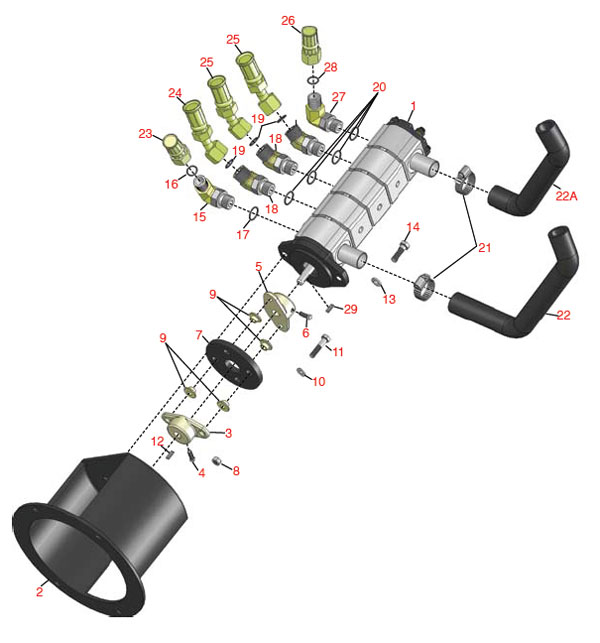

Item # R&R
Part No. 		  Description
1 R107-2577 Gear Pump - 5 Section
2 R83-1060-03 Adapter - Pump
3 R27-1960 Hub - Engine
4 R3241-2 Screw - Set Sq.Hd. 1/4 x 5/8
5 R27-1970 Hub - Pump
6 R3241-6 Screw - Set Sq. Hd. 1/4 x3/4
7 R44-2230 Coupling - Rubber Pump
8 R3296-29 Locknut - 5/16-18 ESNA
9 R27-6600 Spacer - Pump Coupling
10 R310266 Washer - Flat 5/16 USS
10 R3256-23 Use R310266
10 R453009 Washer - Flat 5/16 SAE
11 R400190 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5
12 R1164 Key - Reel Pulley
13 R3253-21 Washer - Lock 3/8
14 R400264 Bolt - Hex Hd 3/8-16 x 1-1/4
15 R340-105 Fitting - Hyd
16 R237-30 O-Ring - Seal
17 R237-80 O-Ring
18 R340-87 Fitting - Hyd
19 R237-22 O-Ring
20 R237-42 O-Ring
21 RG116 Clamp - Hose .75-1.5 BX/10
22 R150595 Hose - Inside Inlet - Pump
22A R83-0910 Hose - Outside Inlet - Pump
23 R150627 Hose Assy - LH Drive Motor
24 R150644 Hose Assy - Valve to Pump
25 R150643 Hose Assy - Valve to Pump
26 R150635 Hose Assy - Steering Cylinder
27 R340-82 Fitting - 90 Deg
28 R237-21 O-Ring
29 R150579 Key - Sq 3/16 x 3/16 x 7/8
