Item # R&R

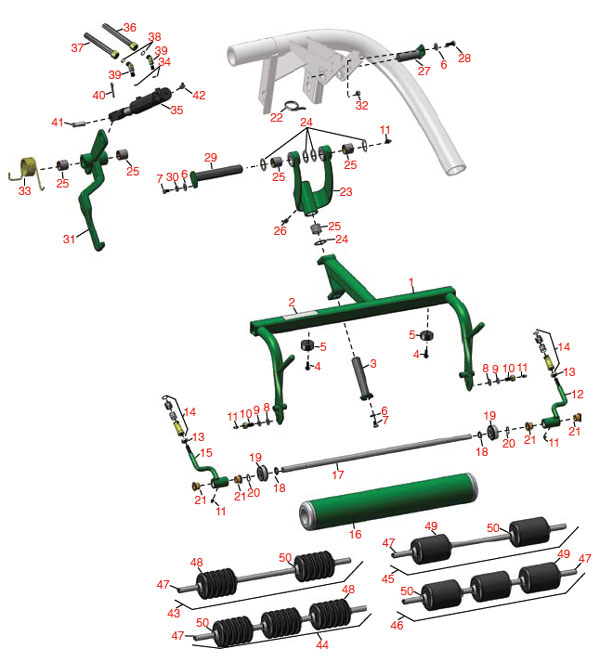

Part No. 		  Description
1 R92-9177G Frame - Pull RH - Green
2 R93-8064 Decal - Warning
3 R10-6090G Pin - Pivot 4 7/8 Long - Green
4 R49-2040 Bolt - Hex Washer 1/4-20 x 3/4
5 R94-4548 Bumper - Rubber Pull Frame
6 R453009 Washer - Flat 5/16 SAE
7 R322-1 Bolt - Hex Hd 5/16-18 x 1/2
8 R453011 Washer - Flat 3/8 SAE Y/Zinc
9 R3253-21 Washer - Lock 3/8
10 R11-0160 Screw - Roller Shaft
11 R302-5 Fitting - Grease
12 R92-0586G Arm - Pull LH - Green
13 R3220-3 Nut - Jam Ball Joint
14 R99-1460 Receiver - Ball Joint
15 R92-0585G Arm - Pull RH - Green
16 R99-4277G Roller - Basket - Green
17 R21-8470 Shaft - Roller
18 R253-83 Seal - Oil 7/8 OD x 5/8 ID
19 R251-141 Bearing - Roller
20 R3290-317 Washer
21 R3-1506 Bushing
22 R3M41933 Cable Ties - 6IN Bulk - Pack/100
23 R105-0452G Pivot Hinge Assy - Center - Green
24 R10-8110 Washer - Pivot Pin
25 R3-0348 Bushing
26 R302-60 Zerk - Grease 90 Deg.
27 R68-5560 Pivot Pin - Cylinder
28 R322-3 Bolt - Hex Hd 5/16-18 x 3/4
29 R27-2550G Pin - Hinge 6-5/8 Long - Green
30 R3253-4 Washer - Lock 5/16 Zinc
31 R110-3955 Lift Arm Assy - Center - Red
32 R3296-29 Locknut - 5/16-18 ESNA
33 R110-3953 Spring - Torsion - Rear
34 R237-22 O-Ring
35 R106-9064 Cylinder - Hydraulic Center
35 R107-2563 Seal Kit
36 R150637 Hose - Rear Lift Cyl
37 R150639 Hose Assy - Rear Lift Cylinder
38 R237-21 O-Ring
39 R340-103 Fitting - Hyd 45 Deg
40 R3272-11 Pin - Cotter
41 R283-8 Clevis Pin - 1/2 x 1 27/64
42 R700415 Zerk - Grease 1/8 PTF 45 Deg
43 R150325 Roller - 3.5 UHMW Grooved
44 R150329 Roller - 3.5 UHMW Grooved
45 R150330 Roller - 3-1/2 Solid Plas
46 R150332 Roller - UHMW Solid 3-1/2 3 Sec
47 R150326 Shaft - Stainless Roller
48 R150327 Roller End - 3.5 UHMW Grooved
49 R150331 Section - 3.5 UHMW
50 R150328 Collar - Retaining 5/8
50 R302295 Washer - Fwy
