Item # R&R

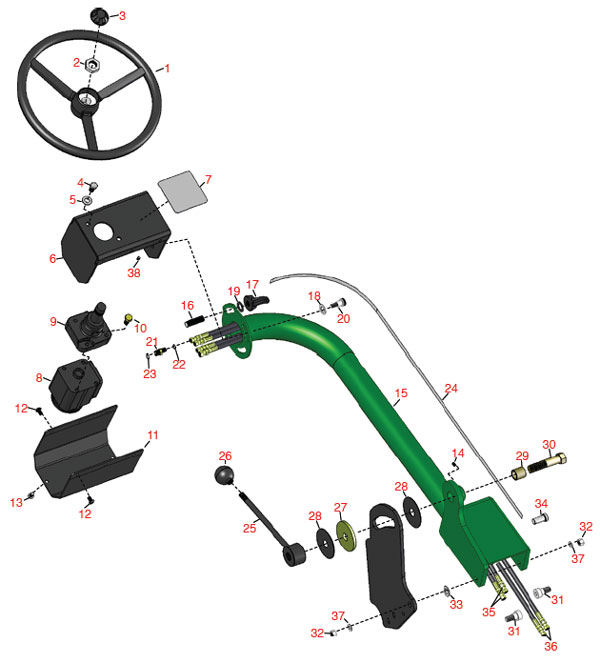

Part No. 		  Description
1 R150255 Steering Wheel Assy - 14 In
2 R107-2561 Nut - Steering Column
3 R150256 Cap - RR Steering Wheel
4 R150776 Bolt - Button Hd Soc Cs 3/8-16 x 1-1/2
5 R453011 Washer - Flat 3/8 SAE Y/Zinc
6 R150771 Support - Steering Valve
7 R93-8063 Decal - Warning
8 R92-8690 Valve Assy - Power Steering
8 R92-9749 Seal Kit - Fits R92-8690 Valve
9 R83-1420 Column Adapter - Hyd Steering
10 R400258 Bolt - Hex Hd 3/8-16 x 3/4
11 R150772 Cover - Power Steering Valve
12 R3274-31 Screw - Button Hd Soc Cs 1/4-20x5/8
13 R150778 Screw - Button Hd Soc Cs 10-24x3/8
14 R3242-2 Screw - 5/16-18x.5 Sq Hd Set
15 R150770 Arm - Power Steering
16 R150773 Adj Stud - Steering Wheel
17 R150774 Handle - Adj Steering Wheel
18 R150777 Washer - Plastic 1/2" x 7/8"
19 R150783 Washer - Plastic 5/8" x 1 1/16"
20 R150782 Bolt - Shoulder 1/2 x 1/2
21 R340-1 Fitting - Hyd
22 R237-21 O-Ring
23 R237-42 O-Ring
24 R150599 Decal - R&R Versa-Green 1860PS And 1860D
25 R83-0700-03 Handle - Power Steering Arm
26 R233-48 Knob
27 R83-0760 Washer - Power Steering Arm
28 R83-0740 Spacer - Power Steering Arm
29 R83-0730 Bushing - Power Steering Arm
30 R83-0750 Bolt - Steering Arm Adj
31 R150258 Bolt - Shoulder 1/2-13
32 RET15804 Locknut - 3/8-16 Top Lock
33 R3256-26 Use R453017
33 R453017 Washer - Flat 1/2
34 R83-1700 Bushing - Flanged - Plastic
35 R150635 Hose Assy - Steering Cylinder
36 R150636 Hose Assy - Steering Cylinder
37 R310266 Washer - Flat 5/16 USS
37 R3256-23 Use R310266
37 R453009 Washer - Flat 5/16 SAE
38 R150690 Screw - Set 1/4-20 x 1/4
