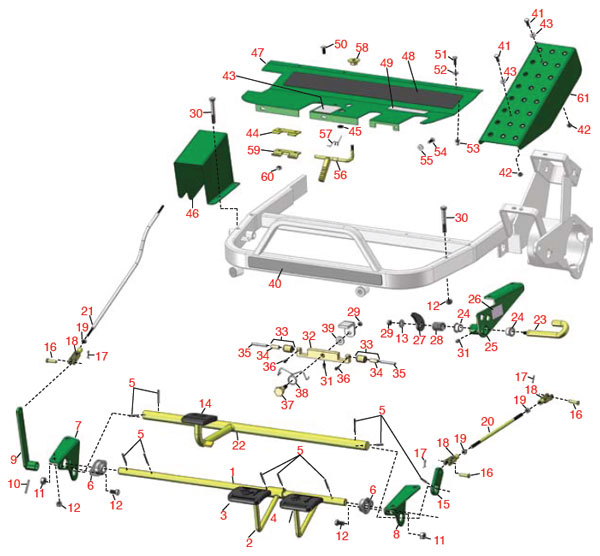

Item # R&R
Part No.
Description Qty
Req
1 R150289 Shaft - Cutting Control Assy 1
2 R106-6394 Mow Pedal Assy 1
3 R93-7630 Rubber Foot Pad - Mow 1
4 R93-7631 Rubber Foot Pad - Lift 1
5 R32121-35 Pin - Spring Roll 5/32 x 1-1/2 8
6 R27-2320 Bearing 2
7 R88-9630G Bracket - Black 1
8 R88-9640G Bracket - Black 1
9 R49-6200 Cutting Lever - Green 1
10 R32121-6 Pin - Roll 3/16 x 1-1/4 1
11 R3234-1 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4 4
12 R3296-59 Locknut - 3/8-16 Nylon Jam 8
13 R453011 Washer - Flat 3/8 SAE Y/Zinc 1
14 R93-7629 Rubber Foot Pad - Brake 1
15 R10-8100-01 Strap - Shaft 2
16 R283-61 Pin - Clevis 5/16 x 1-1/8 5
17 R11M7012 Pin - Cotter 1/8 x 5/8 5
18 R282-2 Yoke 5
19 R3220-2 Nut - Jam - 5/16-24 5
20 R27-2270 Rod - Adjustment 2
21 R49-5430 Control Rod - Cutting Lever 1
22 R83-0160 Shaft - Brake Assy 1
23 R93-9903 Pin - Mow Lockout 1
24 R3-1506 Bushing 2
25 R93-9901G Lockout Bracket - Black 1
26 R93-9898 Decal - Lock 1
27 R93-9904 Mow Arm - Lockout 1
28 R76-0410 Spring - Compression - Lockout Pin 1
29 R3296-59 Locknut - 3/8-16 Nylon Jam 2
30 R323-13 Bolt - Hex Hd 3/8-16 x 2-3/4 GR5 4
38 R83-0080 Spring - Pivot - Lift 1
31 R302-5 Fitting - Grease 2
32 R150273 Lift - Pivot Assy 1
33 R150274 Roller Assy - Lift Pivot 2
34 R150275 Bushing - Bronze 2
35 R150276 Pin - Dowell - Removable 2
36 R150425 Bolt - Hex Hd 8-32 x 5/8 2
37 R83-2590 Bolt - Shoulder Eccentric 1
38 R83-0080 Spring - Pivot - Lift 1
39 R453011 Washer - Flat 3/8 SAE Y/Zinc 1
40 R150596 Decal - R&R Versa-Green 1860 1
41 R321-4 Bolt - Hex Hd 1/4-20 x 3/4 2
42 R32128-33 Nut - 1/4-20 Flanged Serr 2
43 R3256-22 Washer - Flat 1/4 Yellow 2
44 R10-7880 Hinge - Upper 1
45 R150284 Rubber Grommet 1
46 R49-6110G Rod Guard - Green 1
47 R83-0640G Footrest Plate - Green 1
48 R49-6120 Pad - Anti-Skid Foot Rest 1
49 R93-8075 Decal - Mow/Lift 1
50 R3229-11 Bolt - Carriage 1/4-20 x 5/8 2
51 R3274-31 Screw - Button Hd Soc Cs 1/4-20x5/8 4
52 R453023 Washer - Flat 1/4 4
53 R95-5981TS Thread-Sert 1/4-20 7
54 R400106 Bolt - Hex Hd 1/4-20 x 5/8 3
55 R3253-3 Washer - Lock 1/4 3
56 R10-7850 Parking Latch - Brake 1
57 R10-8140 Spring - Torsion - Brake Latch 1
58 R32141-111 Nut - Special HF Flanged 1
59 R10-7890 Hinge - Lower 1
60 R301504 Locknut - ESNA 1/4-20 2
61 R83-0200G Cover Plate - LH - Green 1
62 R93-8062 Decal - Parking Brake 1
