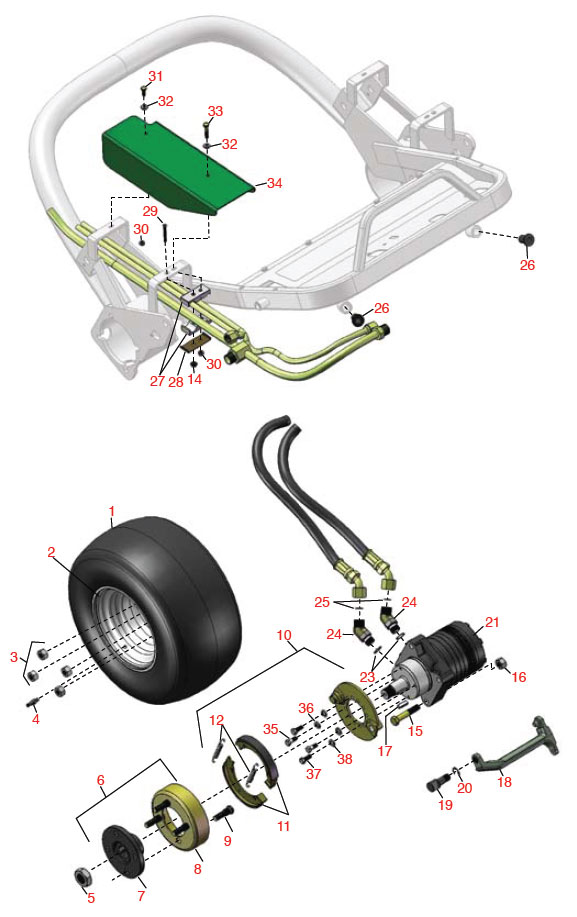

Item # R&R
Part No. 		  Description Qty
Req
1 R150314 Tire - w/Wheel Assy - Black 2
1 R353844 Tire - 18 - 9.50 x 8 Smooth 2 2
1 R700141 Tube - 18 - 8.50/9.50 x 8 2
2 R217-60 Wheel - With Valve Stem - White 2
3 R242-50 Nut - 1/2-20 Wheel 8
4 R232-27 Stem - Valve w/ Cap 2
5 R26-3790 Nut - Hex - Wheel Motor 1-20 2
6 R10-6821 Hub And Drum Assy 2
8 R10-6850 Drum - Brake 2
7 R10-6870-03 Hub - Wheel 2
9 R85-6540 Stud - Drive 8
10 R150510 Brake Assy 2
11 R70-9840 Shoe - Brake 4
12 R70-9880 Spring - Brake Shoe 4
13 R321-5 Bolt - Hex Hd 1/4-20 x 7/8 8
14 R301504 Locknut - ESNA 1/4-20 8
15 R325-11 Bolt - Hex Hd 1/2-13 x 2-3/4 8
16 RF5003 Locknut - ESNA 1/2-13 8
17 R3257-42 Key - Woodruff 5/16 x 1 2
18 R93-2096 Arm - Brake 2
19 R104-7707 Cam - Brake 2
20 R150513 E - Clip - Brake 2
21 R110-4015 Hyd Wheel Motor - LH 1
22 R110-4016 Hyd Wheel Motor - RH 1
23 R237-80 O-Ring 4
24 R340-14 Fitting - Hyd 4
25 R237-65 O-Ring 4
26 R83-1700 Bushing - Flanged - Plastic 3
27 R57-6140 Clamp - Half - Hyd Line 2
28 R83-1220 Plate - Clamp - Hyd Lines 1
29 R32108-100 Screw - 1/4-20 x 2 1/4 Soc Flat Hd 1
30 R32128-33 Nut - 1/4-20 Flanged Serr 1
31 R321-4 Bolt - Hex Hd 1/4-20 x 3/4 1
32 R3256-22 Washer - Flat 1/4 Yellow 2
33 R3234-34 Bolt - Hex Washer 1/4 x 2 1
34 R83-0190-01 Plate - Cover - RH 1
35 R150524 Bolt - Shoulder 5/16-18 4
36 R3254-6 Washer - Lock 3/8 4
37 R322-4 Bolt - Hex Hd 5/16-18 x 7/8 4
38 R3253-4 Washer - Lock 5/16 Zinc 4
