Item # R&R

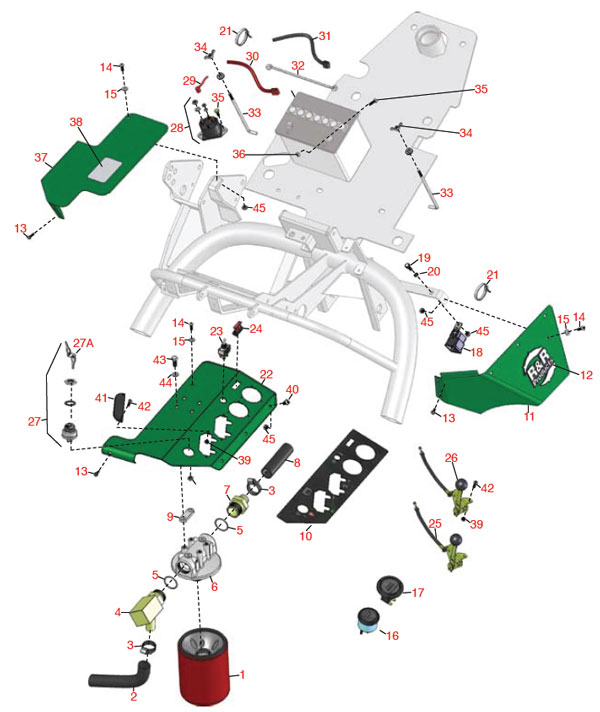

Part No. 		  Description Qty
Req
1 R74-3570 Filter - Oil Hyd 10 Micron 1
2 R68-5880 Hose - Hyd 1
3 RG116 Clamp - Hose .75-1.5 BX/10 1
4 R353-564 Fitting - Hyd 90 - Filter 1
5 R237-101 O-Ring 2
6 R44-5560 Head Assy - Hyd Oil Filter 1
7 R353-563 Fitting - Hyd - Filter 1
8 R83-1430 Hose - Filter to Tank 1
9 R27-2380 Spacer - Oil Filter 2
10 R107-2554 Decal - Control Panel 1
11 R83-0840G Cover Shield - Valve - Green 1
12 RR100 Emblem 1
13 R32104-116 Screw - 12 x 1/2 Sheet Metal Hswh 5
14 R3274-69 Screw - 1/4-20 x 3/4 Hsbh 3
15 R3256-22 Washer - Flat 1/4 Yellow 3
16 R98-2160 Meter - Volt 1
17 R66-2950 Meter - Hour - Quartz 1
18 R99-7430 Relay 1
19 R49-2040 Bolt - Hex Washer 1/4-20 x 3/4 1
20 R3255-7 Washer - Lock 1/4 Ext Star Z 1
21 R3M41933 Cable Ties - 6IN Bulk - Pack/100
22 R83-0830G Control Panel - Green 1
23 R150251 Switch - Light 1
24 R218-578 Fuse - 10 Amp 1
25 R83-0030 Control - Throttle 1
26 R83-0040 Control - Choke Fits GM3100 1
27 R104-2541 Switch - Key 6 Lead 5/8 Mt. 1
27A R343060 Ignition - Key SET/2 1
28 R28-4210 Solenoid 1
29 R98-2161 Cable - Battery - Positive 1
30 R83-1150 Cable - Battery Negative 1
31 R83-2420 Cable - Battery Positive 1
32 R100-6434 Rod - Battery 1
33 R100-6435 Post - Battery - Stainless 2
34 R09030 Nut - Wing 1/4 2
35 R400106 Bolt - Hex Hd 1/4-20 x 5/8 4
36 R443102 Nut - 1/4-20 Yellow Zinc 2
37 R94-2694G Cover - RH - Green 1
38 R93-8065 Decal - Traction 1
39 R6040-106 Locknut - Stainless 4
40 R3274-31 Screw - Button Hd Soc Cs 1/4-20x5/8 3
41 R150252 Cover - Control Panel 2
42 R300104 Screw - Button Hd Cap 10-32 x 5/8 4
43 R322-4 Bolt - Hex Hd 5/16-18 x 7/8 4
44 R453009 Washer - Flat 5/16 SAE 4
45 R301504 Locknut - ESNA 1/4-20 7
