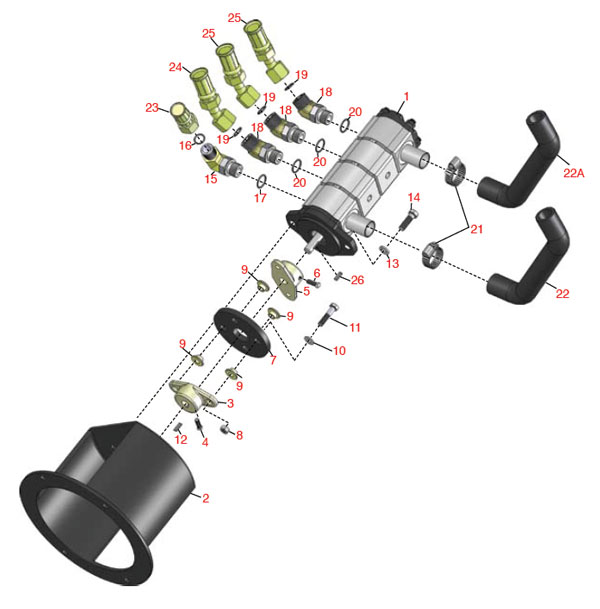

Item # R&R
Part No.
Description Qty
Req
1 R107-2565 Gear Pump - 4 Section 1
2 R83-1060-03 Adapter - Pump 1
3 R27-1960 Hub - Engine 1
4 R3241-2 Screw - Set Sq.Hd. 1/4 x 5/8 2
5 R27-1970 Hub - Pump 1
6 R3241-6 Screw - Set Sq. Hd. 1/4 x3/4 2
7 R44-2230 Coupling - Rubber Pump 1
8 R3296-29 Locknut - 5/16-18 ESNA 4
9 R27-6600 Spacer - Pump Coupling 4
10 R310266 Washer - Flat 5/16 USS 4
10 R3256-23 Use R310266 4
10 R453009 Washer - Flat 5/16 SAE 4
11 R400190 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5 4
12 R1164 Key - Reel Pulley 1
13 R3253-21 Washer - Lock 3/8 2
14 R400264 Bolt - Hex Hd 3/8-16 x 1-1/4 2
15 R340-105 Fitting - Hyd 1
16 R237-30 O-Ring - Seal 1
17 R237-80 O-Ring 1
18 R340-87 Fitting - Hyd 3
19 R237-22 O-Ring 3
20 R237-42 O-Ring 3
21 RG116 Clamp - Hose .75-1.5 BX/10 1
22 R150595 Hose - Inside Inlet - Pump 1
22A R83-0910 Hose - Outside Inlet - Pump 1
23 R150627 Hose Assy - LH Drive Motor 1
24 R150644 Hose Assy - Valve to Pump 1
25 R150643 Hose Assy - Valve to Pump 2
26 R150579 Key - Sq 3/16 x 3/16 x 7/8 1
