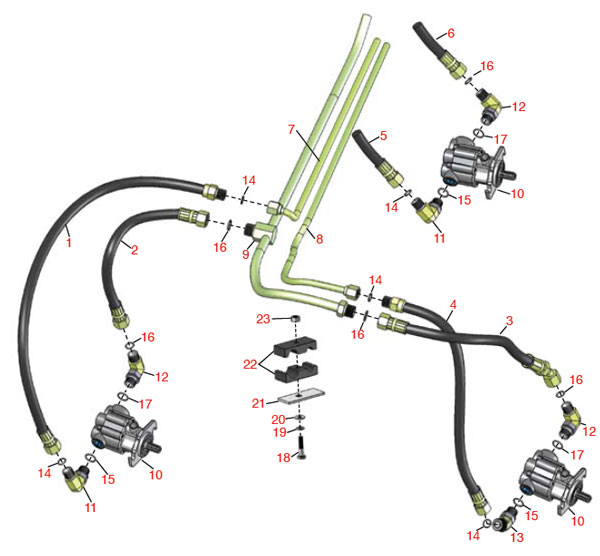

Item # R&R
Part No.
  Description Qty
Req
1 R150628 Hose Assy - RH Pressure 1
2 R150629 Hose Assy - RH Return 1
3 R150630 Hose Assy - LH Return 1
4 R150634 Hose Assy - LH Pressure 1
5 R150633 Hose Assy - Rear Pressure 1
6 R150631 Hose - Rear Motor Return 1
7 R63-4030 Tube - Hyd 1
8 R63-4020 Tube - Hyd 1
9 R100-6431 Tube - Return 1
10 R105-9770 Motor - Reel Hyd Quick Release 3
11 R340-77 Fitting - Hyd 2
12 R340-98 Fitting - Hyd 3
13 R340-87 Fitting - Hyd 1
14 R237-22 O-Ring 5
15 R237-42 O-Ring 3
16 R237-30 O-Ring - Seal 5
17 R237-79 O-Ring 3
18 R3234-34 Bolt - Hex Washer 1/4 x 2 1
19 R3253-3 Washer - Lock 1/4 1
20 R3256-22 Washer - Flat 1/4 Yellow 3
21 R69-9760 Cover Plate - Hyd Line Clamp 1
22 R56-7970 Plastic Clamp 2
23 R301504 Locknut - ESNA 1/4-20 2
