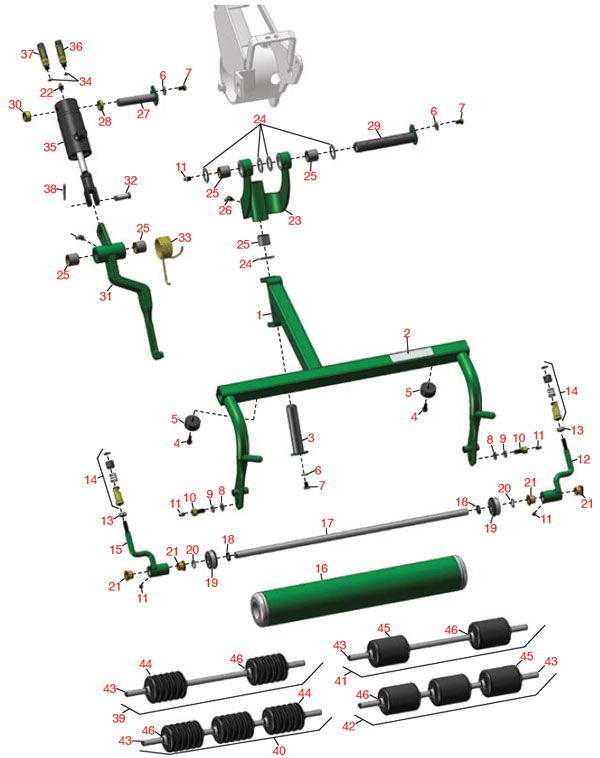

Item # R&R
Part No. 		Description Qty
Req
1 R86-9810G Frame - Pull LH - Green 1
2 R93-8064 Decal - Warning 1
3 R10-6090G Pin - Pivot 4 7/8 Long - Green 1
4 R49-2040 Bolt - Hex Washer 1/4-20 x 3/4 2
5 R94-4548 Bumper - Rubber Pull Frame 2
6 R453009 Washer - Flat 5/16 SAE 3
7 R322-1 Bolt - Hex Hd 5/16-18 x 1/2 3
8 R453011 Washer - Flat 3/8 SAE Y/Zinc 2
9 R3253-21 Washer - Lock 3/8 2
10 R11-0160 Screw - Roller Shaft 2
11 R302-5 Fitting - Grease 5
12 R92-0586G Arm - Pull LH - Green 1
13 R3220-3 Nut - Jam Ball Joint 2
14 R99-1460 Receiver - Ball Joint 2
15 R92-0585G Arm - Pull RH - Green 1
16 R99-4277G Roller - Basket - Green 1
17 R21-8470 Shaft - Roller 1
18 R253-83 Seal - Oil 7/8 OD x 5/8 ID 2
19 R251-141 Bearing - Roller 2
20 R3290-317 Washer 2
21 R3-1506 Bushing 4
22 R700415 Zerk - Grease 1/8 PTF 45 Deg 1
23 R10-7820G Pivot Hinge Assy - Green 1
24 R10-8110 Washer - Pivot Pin 6
25 R3-0348 Bushing 6
26 R302-60 Zerk - Grease 90 Deg. 1
27 R10-6060G Pin - Pivot 3 7/8 Long - Green 1
28 R105-3828 Spacer - Lift Cyl 1
29 R10-6110G Pin - Hinge 6 1/4 Long - Green 1
30 R74-3730 Spacer 1
31 R107-2598G Lift Arm Assy - LH - Green 1
32 R283-8 Clevis Pin - 1/2 x 1 27/64 1
33 R110-3952 Spring - Torsion - LH 1
34 R237-22 O-Ring 2
35 R106-9066 Cylinder - Hydraulic LH/RH 1
35 R107-2564 Seal Kit 1
36 R150638 Hose Assy - Front LH Cylinder 1
37 R150632 Hose - Cyl LH Drop Fits 1
38 R3272-11 Pin - Cotter 1
39 R150325 Roller - 3.5 UHMW Grooved 1
40 R150329 Roller - 3.5 UHMW Grooved 1
41 R150330 Roller - 3-1/2 Solid Plas 1
42 R150332 Roller - UHMW Solid 3-1/2 3 Sec 1
43 R150326 Shaft - Stainless Roller 1
44 R150327 Roller End - 3.5 UHMW Grooved
45 R150331 Section - 3.5 UHMW
46 R150328 Collar - Retaining 5/8
46 R302295 Washer - Fwy
