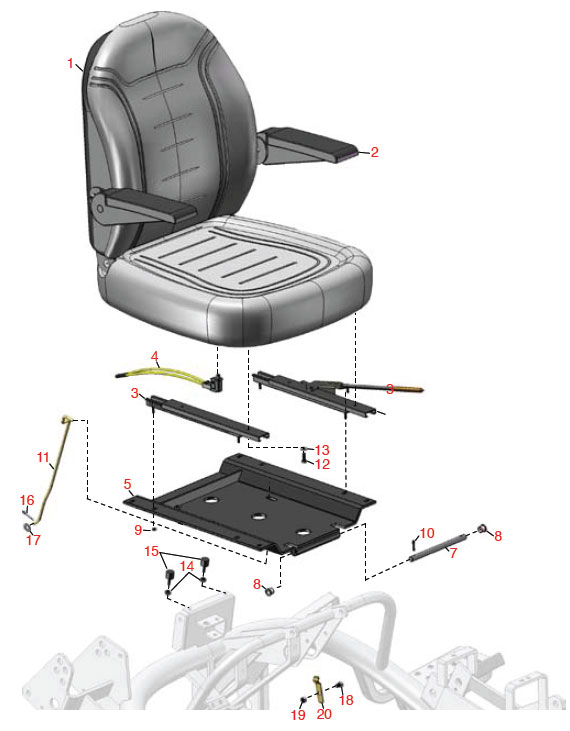

Item # R&R
Part No.
Description Qty
Req
1 R150226 Seat Assy w/Arms And Adjusters 1
1 R150225 Seat - w/o Arms - Grey 1
2 R150227 Armrest Kit - Set of 2 1
3 R150224 Adjusters - Seat (Set of 2) 1
4 R150229 Switch - Operator Presence 1
5 R150231 Seat Support Assy 1
7 R49-5580 Shaft - Support Seat 1
8 R256-155 Bushing - Flanged 2
9 R3296-29 Locknut - 5/16-18 ESNA 4
10 R32121-45 Pin - Spring Roll 5/32 x 1 1
11 R150232 Rod - Seat - Prop 1
12 R434024 Bolt - Soc Hd Cap 5/16-18 x 3/4 4
13 R310266 Washer - Flat 5/16 USS 4
13 R3256-23 Use R310266 4
13 R453009 Washer - Flat 5/16 SAE 4
14 R6040-106 Locknut - Stainless 2
15 R6050-119 Bumper - Rubber - 5/8 In 2
16 R3272-10 Pin - Cotter 1/8 x 3/4 1
17 R453011 Washer - Flat 3/8 SAE Y/Zinc 1
18 R3296-29 Locknut - 5/16-18 ESNA 1
19 R322-1 Bolt - Hex Hd 5/16-18 x 1/2 1
20 R68-5310 Clip - Rod - Prop 1
