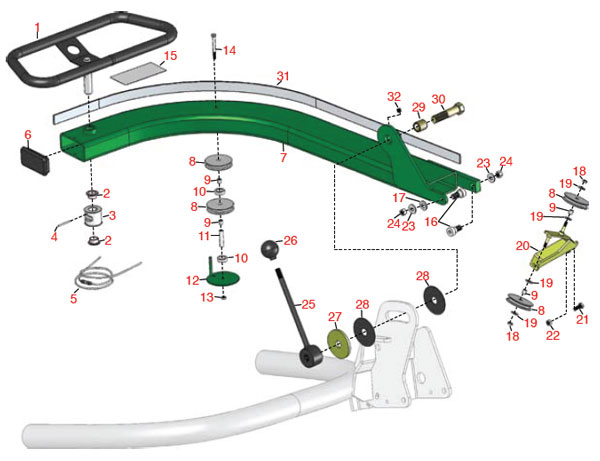

Item # R&R
Part No. 		Description Qty
Req
1 R49-5900 Steering Wheel 1
2 R256-113 Bushing - Flanged Adj. Pin 2
3 R95-7149 Front Steering Pulley 1
4 R32121-44 Roll Pin - 3/16 x 2 1
5 R95-5965 Cable - Steering Fits 3050 1
6 R95-7140P Cap - Plastic - Steering Arm 1
7 R95-2941G Steering Arm 1
8 R5-2653 Pulley - Idler Steering Cable 4
9 R256-2 Bushing - Idler Pulley 4
10 R71-5440 Spacer - Steering Pulley 2
11 R10-7240 Spacer - Steering Pulley 1
12 R95-5959G Pulley - Support - Green 1
13 R301504 Locknut - ESNA 1/4-20 1
14 R400124 Bolt - Hex Hd 1/4-20 x 2-1/2 GR5 1
15 R93-8063 Decal - Warning 1
16 R150258 Bolt - Shoulder 1/2-13 2
17 R3256-26 Use R453017 4
17 R453017 Washer - Flat 1/2 4
18 R444850 Nut - 3/8-16 Jam Center Lock 2
19 R453011 Washer - Flat 3/8 SAE Y/Zinc 4
20 R95-2932 Bracket - Pulley 1
21 R322-4 Bolt - Hex Hd 5/16-18 x 7/8 2
22 R3296-29 Locknut - 5/16-18 ESNA 2
23 R310266 Washer - Flat 5/16 USS 2
23 R3256-23 Use R310266 2
23 R453009 Washer - Flat 5/16 SAE 2
24 RET15804 Locknut - 3/8-16 Top Lock 2
25 R83-0700-03 Handle - Power Steering Arm 1
26 R233-48 Knob 1
27 R83-0760 Washer - Power Steering Arm 1
28 R83-0740 Spacer - Power Steering Arm 2
29 R83-0730 Bushing - Power Steering Arm 1
30 R83-0750 Bolt - Steering Arm Adj 1
31 R150598 Decal - R&R Versa-Green 1860 1
32 R300105 Screw - Set 5/16-18 x 5/16 1
