Item # R&R

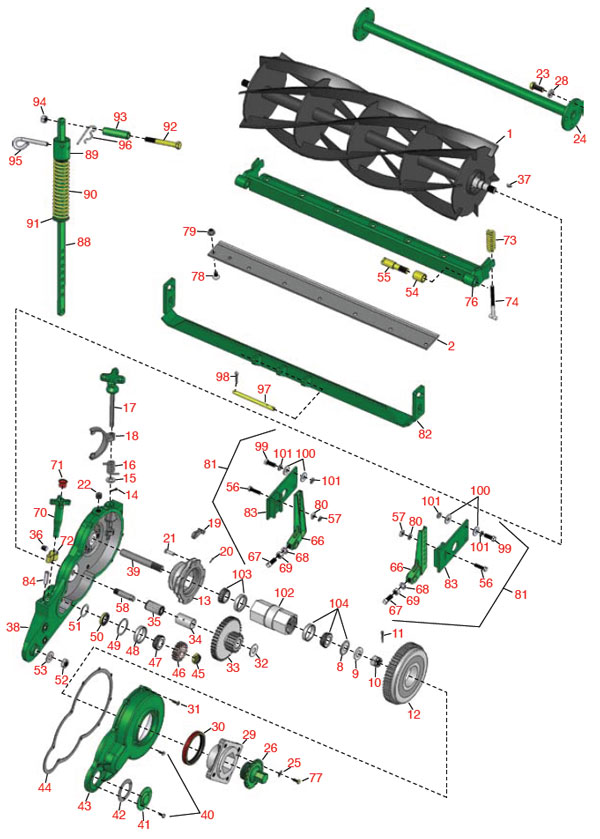

Part No. 		  Description Qty
Req

R&R Reels Available, Lifetime Guaranteed
1 R101253 Reel - 6 Blade 1
1 R502673 Reel - 5 Blade 1
1 R502674 Reel - 4 Blade 1

R&R Bedknives Available, Lifetime Guaranteed
2 R101250 Bedknife - Single Lip 1/2 1
2 R101250L Bedknife - Single Lip Low Cut 7/16 1

R&R Overhaul Kits Available
5 R500605 Overhaul Kit - Cutting Unit

Other Parts Available
8 R311957 Ring - Nilos 2
9 R453022 Washer - 3/4 SAE 2
10 R445686 Nut - 3/4-16 Castle 2
11 R460028 Pin - Cotter 1/8 x 1 2
12 R203976 Gear - Main Ductile Steel 2
13 R203975 Wheel - Pawl Carrier 2
14 R460026 Pin - Cotter 1/8 x 3/4 2
15 R315861 Washer 2
16 R316765 Spring - RH 1
16 R316766 Spring - LH 1
17 R153215G Handle - Release 2
18 R203968 Fork - Release 2
19 R204871 Pawl - Main Gear Ductile 8
20 R460012 Pin - Cotter 3/32 x 3/4 8
21 R315867 Pin - Hardened Pawl 8
22 R472205 Plug - 3/8 2
23 R400406 Bolt - Hex Hd 1/2-13 x 1-1/4 8
24 R108126G Axle - Blitzer - Green 1
25 R327676 Tab - Locking 2
26 R204119G Cap - Hub 2
28 R446154 Washer - Lock 1/2 /// R3253-7 8
29 R203984 Hub - Ground Wheel 2
30 R315967 Seal - Cover 2
31 R407706 Screw - Housing Cover 18
32 R302295 Washer - Fwy 2
33 R331834 Gear - Int. Ductile Steel 2
34 R315978 Sleeve - Bearing
Tech Note: Rotates in same direction of gear rotation
 2
35 R315977 Bearing - Int Gear 2
36 R472203 Plug - 1/4 2
37 R315877 Key - Pinion Gear 4
38 R109550G Housing - Gear LH Fits Pgr 1
38 R109551G Housing - Gear RH Fits Pgr 1
39 R545515 Stud - Ground Wheel 2
40 R408052 Screw - 12-24 x 1/2 Bind Hd 10
41 R352635G Cap - Cover 2
42 R315876 Gasket - Insp Plate 2
43 R203986G Cover - Housing 2
44 R315928 Gasket - Cover 2
45 R444742 Nut - 3/4-16 Gripco Cntrloc 2
45 R3296-15 Locknut - 3/4-16 Nylon Jam 2
46 R315843 Gear - Pinion 2
47&48 R500711 Bearing - With Cup Reel 2
47 R315914 Bearing - Tapered Cone 2
48 R302755 Cup - Bearing. Reel 2
49 R315910 Spacer 1
50 R315872 Seal - Reel 2
51 R315873 Seal - Washer 2
52 R443828 Nut - 5/8 - 18 Hex 2
53 R447224 Washer - Lock 5/8 Int.Star Z 2
54&55 R500264 Stud - With Bushing 2
54 R545723 Bushing - For Backing Stud 2
55 R315909 Stud - Bedknife Backing 2
56 R400266 Bolt - Hex Hd 3/8-16 x 1-1/2 2
57 R444510 Nut - 3/8-16 Sq. 2
58 R315851 Stud - Intermediate 2
66 R500763G Bracket - Roller LH 1
66 R500764G Bracket - Roller RH 1
67 R412003 Screw - 1/2-13x1-1/2 Sq Hd 2
68 R446154 Washer - Lock 1/2 /// R3253-7 2
69 R443818 Nut - 1/2-13 Hex Jam Zinc 2
70 R500548G Handle - Adjusting 2
71 R312794 Plug - Adj. Handle 2
72 R315964 Spring - Friction 2
73 R315966 Spring - Adjusting 2
73 R315844 Spring - Worn Reel 2
74 R316351 Screw - Adjusting Blitzer 2
76 R130304G Backing Bar - Bed Knife 1
77 R400106 Bolt - Hex Hd 1/4-20 x 5/8 2
78 R101270 Screw - Bedknife 7
79 R101271 Nut - Bedknife 7
80 R3254-6 Washer - Lock 3/8 2
81 R700480G Conversion Kit - Skid to Roller 1
82 R500238G Skid - w/Pin Fits Blitzer - Green 1
83 R154217G Bracket - Support LH - Green 1
83 R154218G Bracket - Support RH - Green 1
84 R461406 Pin - Roll 2
87 R110030G Lever Assy 1
88 R335677G Lever - Fits Blitzer 1
89 R358414G Nut - Adjusting Lever Green 1
90 R316133 Spring - Lever Fits Blitzer 1
91 R110031G Tube - Outer Lever Assy 1
92 R400456 Bolt - Handle 1
93 R319873G Handle - Spring Lever 1
94 R32146-11 Locknut - 1/2-20 Center 1
95 R318001G Pin - Lock 1
96 R460312 Pin - Hair Cotter 1
97 R316478 Rod - Fits Blitzer Skid 1
98 R460028 Pin - Cotter 1/8 x 1 2
99 R400336 Bolt - Hex Hd 7/16-14 x 1-1/4 GR5 1
100 R453013 Washer - Flat 7/16 4
101 R446146 Washer - Lock 7/16 Med. 4
102 R500236 Cylinder - Wheel 2
103 R500534 Bearing - With Cup 4
104 R500533 Bearing - w/Cup And Ring 2
