Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

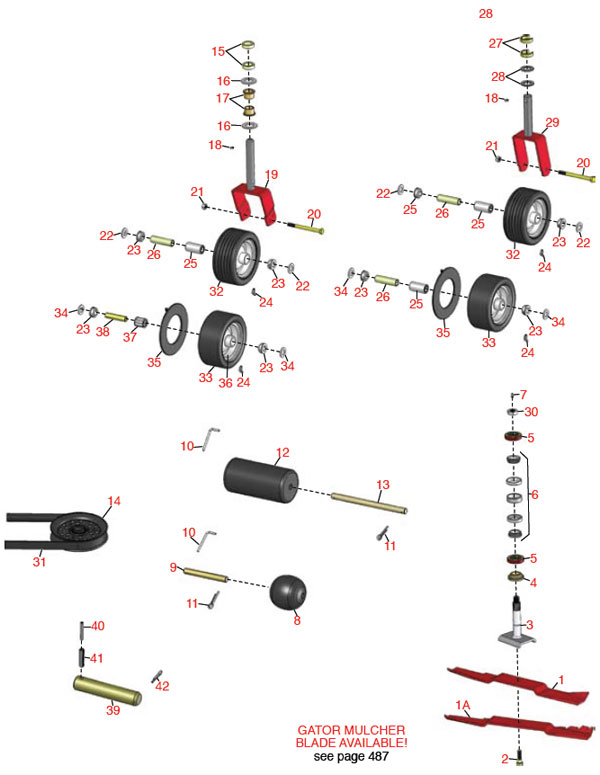

1 R92-5608 92-5608 Rotary Blade 3
1A R92-5608M 107-0214-03 Rotary Blade - Mulcher 3
1A R108-1450 108-1450 Blade Kit - Gator Mulching SET/7
1 R95-3073 95-3073 Kit - Blade And Belt 1
2 R92-5816 92-5816 Bolt - Hex Hd 1/2-20 x 2-1/4 3
3 R92-5604 92-5604 Shaft - Spindle 3
4 R92-5606 92-5606 Spacer - Spindle 3
5 R253-139 253-139 Seal - Spindle 6
6 R46-8530 46-8530 Bearing - Set With Rings/Spacer 3
6 R27-0960 27-0960 Use R46-8530
7 R471219 302-2 Zerk - Grease 3
8 R29-4820 29-4820 Roller 2
9 R57-0680 57-0680 Shaft - Roller - 4-1/4 2
10 R57-0690 57-0690 Pin - Roller Shaft 3
11 R3272-11 3272-11 Pin - Cotter 3
12 R36-1740 36-1740 Roller 1
13 R40-6400 40-6400 Shaft - Roller 1
14 R63-1540-03 63-1540-03 Pulley - Idler 3
15 R63-0070 26-1580 Spacer - 1/2 Hoc 12
16 R3-6781 3-6781 Washer - Thrust Castor Wheel 8
17 R94-1291 94-1291 Bushing - Castor 4
18 R302-5 302-5 Fitting - Grease
19 R98-7068-01 98-7068-01 Caster Fork - 2
20 R325-22 325-22 Capscrew 4
21 R32128-23 32128-23 Nut - Lock Hex Flanged 1/2-13 4
22 R3256-6 3256-6 Use R453017 8
22 R453017 3256-6 Washer - Flat 1/2 8
23 R62-5580 62-5580 Bearing - Flanged Caster 8
24 R302-40 302-40 Fitting - Grease 4
25 R83-4740 83-4740 Bearing 4
26 R62-4340 62-4340 Bushing - Spanner Front 4
27 R92-8866 92-8866 Spacer - Castor Fork 12
28 R92-1765 92-1765 Washer - Thrust 4
29 R92-5578-01 92-5578-01 Caster Fork - Rear 2
30 R444742 32146-20 Nut - 3/4-16 Gripco Cntrloc 3
31 R150565 92-5588 Belt - Deck 1
32 R85-5760 85-5760 Wheel Assy - 8 x 3.50 Solid 2
33 R99-1268 99-1268 Wheel - Pneu. Assy 8x3.5-4 Smooth 1
33 R93-9939 93-9939 Tire - 8 - 3.5 x 4 Smooth 4 Ply 4
34 R70-8040 70-8040 Washer 2
35 R68-8950 68-8950 Tube - Castor Wheel 8x3-4 1
36 R100-2348 100-2348 Rim 4
37 R62-5570 62-5570 Bearing - Castor Wheel 8
38 R68-8980 68-8980 Bushing - Spanner Wheel 4
39 R98-2330 98-2330 Pin - Pivot Assy 2
40 R32121-61 32121-61 Pin - Spring Roll 7/32 x 1-3/4 2
41 R32121-67 32121-67 Pin - Spring Roll 3/8 x 1-3/4 2
42 R3272-19 3272-19 Pin - Cotter 2
