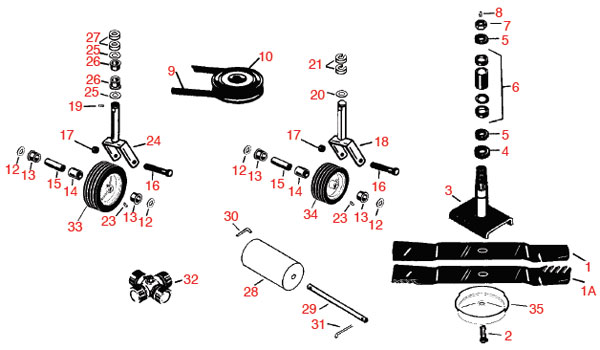

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R85-6040 85-6040 Rotary Blade 3
1A R85-6040M R&R Only Rotary Blade - Mulcher 25 Magnum 3
2 R92-5816 92-5816 Bolt - Hex Hd 1/2-20 x 2-1/4 3
3 R85-6010 85-6010 Shaft - Spindle 3
4 R92-9800 92-9800 Spacer - Spindle 3
5 R253-154 253-154 Seal - Spindle 6
6 R71-2530 71-2530 Bearing - Spindle 3
7 R3296-49 3296-49 Locknut - Spindle 3
8 R471219 302-2 Zerk - Grease 3
9 R93-8457 93-8457 Belt - Main Drive 1
10 R63-1540-03 63-1540-03 Pulley - Idler 2
12 R3256-6 3256-6 Use R453017 8
12 R453017 3256-6 Washer - Flat 1/2 8
13 R62-5580 62-5580 Bearing - Flanged Caster 8
14 R83-4740 83-4740 Bearing 4
15 R62-4340 62-4340 Bushing - Spanner Front 4
16 R325-22 325-22 Capscrew 4
17 R32128-23 328128-23 Nut - Lock Hex Flanged 1/2-13 4
18 R94-5383-01 94-5383-01 Caster Fork - 2
19 R302-5 302-5 Fitting - Grease 2
20 R92-1765 92-1765 Washer - Thrust 4
21 R92-8866 92-8866 Spacer - Castor Fork 12
23 R302-40 302-40 Fitting - Grease 4
24 R94-5381-01 94-5381-01 Caster Fork - 2
25 R3-6781 3-6781 Washer - Thrust Castor Wheel 4
26 R94-1291 94-1291 Bushing - Castor 4
27 R63-0070 63-0070 Spacer - 1/2 Hoc 12
28 R36-1740 36-1740 Roller 3
29 R40-6400 40-6400 Shaft - Roller 3
30 R57-0690 57-0690 Pin - Roller Shaft 3
31 R3272-11 3272-11 Pin - Cotter 3
32 R54-9180 54-9180 Kit - U-Joint 2
33 R92-1655 92-1655 Wheel - Hd Solid Assy 10 x 3.25 2
34 R85-5760 85-5760 Wheel Assy - 8 x 3.50 Solid 2
35 R72-9361 72-9361 Cup - Anti-Scalp 3
