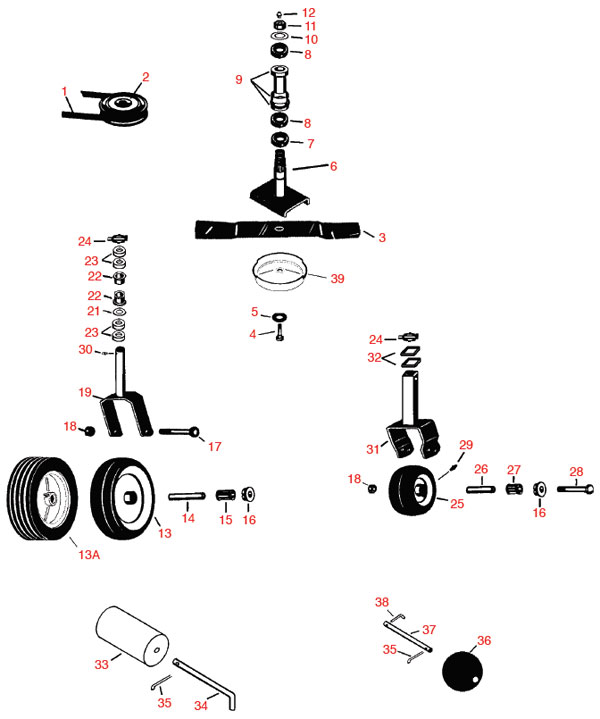

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R72-3760 72-3760 Belt - Wing 2
1 R63-1510 63-1510 Belt - Deck 1
2 R63-1540-03 63-1540-03 Pulley - Idler 2
3 R63-0080 63-0080 Rotary Blade 5
4 R44-2200 44-2200 Bolt - Blade 5
5 R67-5770 67-5770 Washer - Blade 5
6 R105-1686 105-1686 Shaft - Spindle 5
6 R51-3551 51-3551 Use R105-1686
7 R27-0950 27-0950 Spacer - Bearing 5
8 R253-139 253-139 Seal - Spindle 10
9 R13-5109 13-5109 Bearing - w/Spacer 5
10 R7-4150 7-4150 Washer 5
11 R444742 32145-20 Nut - 3/4-16 Gripco Cntrloc 5
12 R471219 302-2 Zerk - Grease 5
13 R62-4330 62-4330 Use R92-1655 2
13 R92-1655 62-4330 Wheel - Hd Solid Assy 10 x 3.25 2
13A R92-1655 92-1655 Wheel - Hd Solid Assy 10 x 3.25 2
14 R62-4340 62-4340 Bushing - Spanner Front 2
15 R83-4740 83-4740 Bearing 2
16 R62-5580 62-5580 Bearing - Flanged Caster 8
17 R325-22 325-22 Capscrew 2
18 R32128-23 32128-23 Nut - Lock Hex Flanged 1/2-13 4
19 R63-0730 63-0730 Caster Fork - 2
21 R3-6781 3-6781 Washer - Thrust Castor Wheel 2
22 R28-9290 28-9290 Bushing - Steel Castor
22 R94-1291 94-1291 Bushing - Castor 4
23 R63-0070 63-0070 Spacer - 1/2 Hoc 12
24 R3290-384 3290-384 Pin - Lynch Heavy Duty 4
25 R63-8400 70-1820 Wheel - Rear Caster Assy 2
25 R70-1820 70-1820 Use R63-8400
26 R63-1770 63-1770 Bushing - Spanner Rear 2
27 R63-8580 63-8580 Bearing - Roller Rear Wheel 2
28 R325-17 325-18 Bolt - Axle 2
29 R700414 302-11 Zerk - Grease 1/4-28 45 Deg 2
30 R302-5 302-5 Fitting - Grease 2
31 R63-1910 63-1910 Fork - Rear Caster 2
32 R63-0960 63-0960 Spacer - Sq. Rear Castor Fork 2
33 R36-1740 36-1740 Roller 1
34 R63-0850 63-0850 Shaft - Roller 1
35 R3272-11 3272-11 Pin - Cotter 3
36 R29-4820 29-4820 Roller 2
37 R57-0680 57-0680 Shaft - Roller - 4-1/4 2
38 R57-0690 57-0690 Pin - Roller Shaft 2
39 R72-9360 72-9360 Use R72-9361
39 R72-9361 72-9361 Cup - Anti-Scalp 3
