Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed

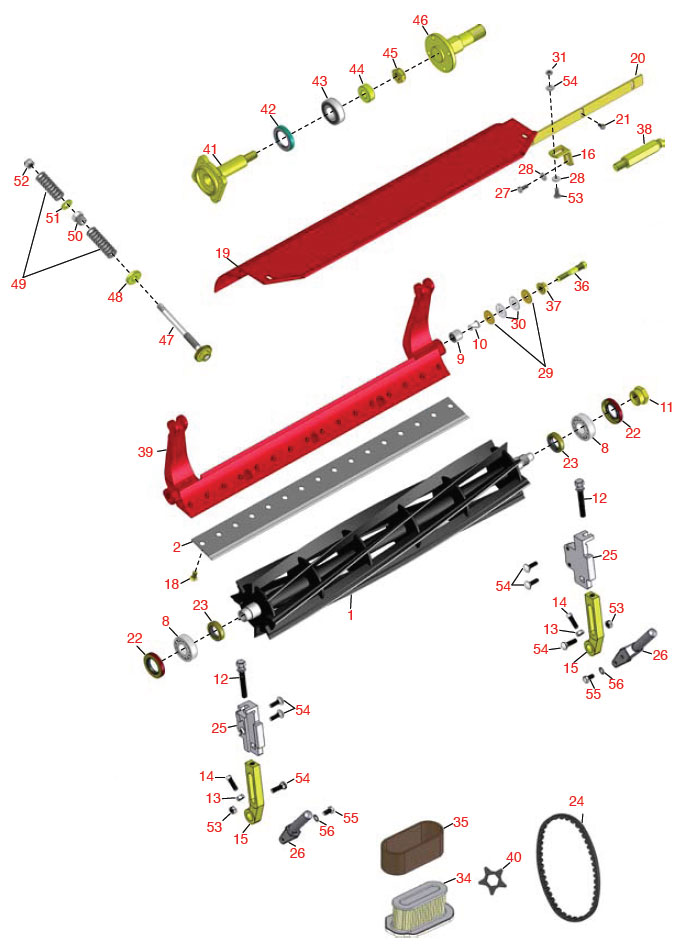

1 R95-0900 95-0900 Reel - 8 Blade
2 R150467 R&R Only Bedknife - Thick 1
2 R93-9015 93-9015 Bedknife - Thin 1

R&R Bedknives Available, Lifetime Guaranteed
2 R94-5885 94-5885 Bedknife - Tournament 1

Overhaul Kits Available
4 R30067 30067 Filter Kit - 400 Hr
34 RAK11013-2132 93-8636 Kawasaki Element-Air Filter 1

Filters
35 RAK11013-2133 93-8637 Kawasaki Element-Air Filter 1

Other Parts Available
8 R251-342 251-342 Bearing - Reel 2
9 R63-9510 63-9510 Bushing - Rubber For Bed Bar 2
10 R52-2890 52-2890 Bushing - Flanged 2
11 R92-7302 92-7302 Locknut - Reel 2
12 R93-6051 93-6051 Bolt - Hoc 2
13 R443106 3218-2 Nut - 5/16-18 Y/Zinc Plated 2
14 R3242-4 3242-4 Screw - Set Sq Hd 5/16-18 x 1 2
15 R93-6090 93-6090 Arm - Roller Hoc 2
16 R65-6450 65-6450 Bracket - LH 1
16 R65-6460 65-6460 Bracket - RH 1
17 R67-7960 62-5070 Decal - Warning 1
17 R93-8064 93-8064 Decal - Warning 1
18 R150477 57-4910 Screw - Regular 1/2 Long 16
19 R94-9009 94-9009 Shield - Grass 1
20 R94-5879 94-5879 Bar - Cut-Off 1
21 R32144-73 32144-73 Screw - Machine Hex Washer Head 5
22 R253-163 253-163 Seal - Reel 2
23 R253-96 253-96 Seal - Oil Single Lip Reel 2
24 R150525 65-6200 Belt - Reel Drive 1
24 R150527 65-6210 Belt - Drum Drive 1
25 R93-6048 93-6048 Bracket - Hoc RH 1
25 R93-6049 93-6049 Bracket - Hoc LH 1
26 R93-9017 93-9017 Rod - RH Basket 1
26 R93-9018 93-9018 Rod - Basket LH 1
27 R3256-22 3256-22 Washer - Flat 1/4 Yellow 6
28 R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8 4
29 R52-2860 52-2860 Washer - Bed Bar Pivot 4
30 R52-2900 52-2900 Washer - Nylon 4
31 R301504 3296-42 Locknut - ESNA 1/4-20 4
32 R65-9080 65-9080 Belt - Countershaft
36 R65-6270 65-6270 Bolt - Bed Bar 2
37 R32128-48 32128-48 Locknut - 7/16-20 Flanged 2
38 R88-7580 88-7580 Shaft - Transport Wheel LH 1
38 R88-7590 88-7590 Shaft - Transport Wheel RH 1
39 R93-9049-01 93-9049-01 Bed Bar 1
40 R110-2393 R&R Only Verti-Cut Blade - 2-3/8 w/7/8 Hex Carbide Tipped
40 R70-1170 70-1170 Verti-Cut Blade - 2-3/8 w/7/8 Hex
40 R70-1170C R&R Only Use R110-2393
41 R94-5850 94-5850 Spindle - Rear Roller Drum 1
42 R253-159 253-159 Seal - Drum 2
43 RA203605 251-82 Bearing 2
44 R65-6530 65-6530 Spacer - Seal 1
45 R3296-33 3296-33 Locknut - 5/8-18 ESNA Jam 1
46 R88-7510 88-7510 Shaft - Extension RH Drum 1
46 R88-7520 88-7520 Shaft - Extension LH Drum 1
47 R94-5873 94-5873 Handle - Adjusting Bed Bar 2
48 R94-5859 94-5859 Washer - Hardened 2
49 R93-9043 93-9043 Washer - Spring Belleville 32
50 R98-5913 98-5913 Nut - Spring 2
51 R94-5858 94-5858 Washer - Flat 7/16 SAE 2
52 R3296-48 3296-48 Locknut - 7/16-14 ESNA 2
53 R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 2
54 R3231-5 3231-5 Bolt - Carriage 3/8-16 x 1-3/4 2
54 R92-8914 3231-5 Bolt - Tapered Face 5/16-18 x 7/8 4
55 R322-2 322-2 Bolt - Hex Hd 5/16-18 x 5/8 4
56 R3255-8 3255-8 Washer - Lock 5/16 Ext 4
57 R3M41933 3290-378 Cable Ties - 6IN Bulk PACK/100
58 R52-3180 52-3180 Bearing - Front Roller
59 R65-6520 65-6520 Spacer
R38-7820 38-7820 Bearing
R95-0930 95-0930 Roller - Smooth Tubular Steel
R19H3130 322-9 Bolt - Hex Hd 5/16-18 x 1-3/4
R302-5 302-5 Fitting - Grease
R3219-1 3219-1 Nut - 1/4-28
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R3253-21 3253-21 Washer - Lock 3/8
R3253-3 3253-3 Washer - Lock 1/4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3254-8 3254-8 Washer - Lock 1/4 Int Star Z
R3296-28 3296-28 Nut - 1/2-20 ESNA Jam
R3296-29 3296-29 Locknut - 5/16-18 ESNA
R3296-47 3296-47 Locknut - 5/16-18 Jam Nyloc
R33094-00 33094-00 Washer - Flat - 8mm Hardened
R453009 3256-23 Washer - Flat 5/16 SAE
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc
R68-9400 33014-00 Nut - 8mm x 1.25 Flanged
RN7734 93-8584 Plug - Ngk BPR5ES
