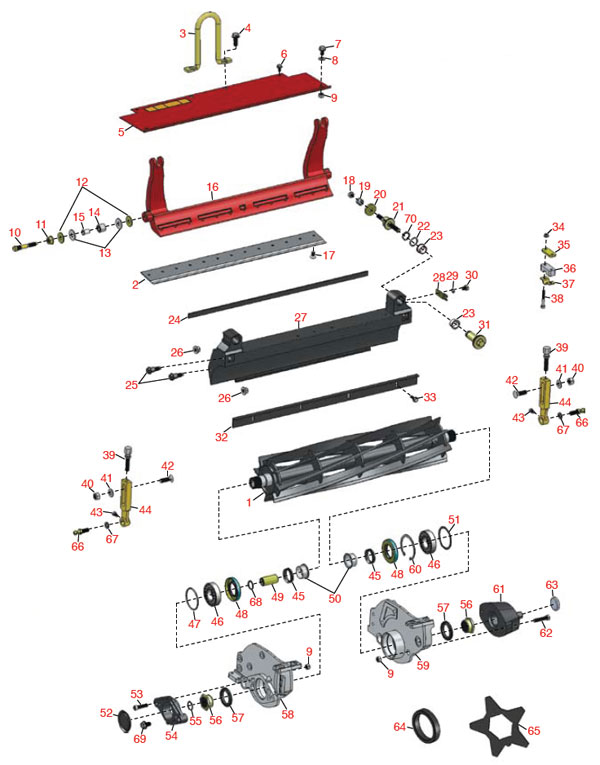

Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed
1 R105-5792 105-5792 Reel - 11 Blade 1
1 R105-5793 105-5793 Reel - 8 Blade 1

R&R Bedknives Available, Lifetime Guaranteed
2 R150466 63-8600 Bedknife - Super Thick 5/16 1
2 R62-2500 94-6392 Bedknife - Thick 3/16 1
2 R63-8470 93-4264 Bedknife - Thin 1/8 1
2 R65-8250 93-4263 Bedknife - Tournament 1/16 1
2 R93-4262 93-4262 Bedknife - Micro Cut 1

Service Tools
R51-0880 Tool - Bedknife Screw

Other Parts Available
3 R105-5740 105-5740 Hook - Lift 1
4 R33115-025 33115-025 Bolt - Hex Hd M10-1.5 x 25 2
5 R106-2600-01 106-2600-01 Grass Shield 1
6 R104-2628 104-2628 Bolt - Hex Washer M6-1.0 x 12 2
7 R33114-016 33114-016 Bolt - Hex Hd M8-1.25 x 15 2
8 R453009 3256-2 Washer - Flat 5/16 SAE 2
9 R33024-00 33024-00 Locknut - 8mm x 1.25 4
10 R65-6270 65-6270 Bolt - Bed Bar 2
11 R32128-48 32128-48 Locknut - 7/16-20 Flanged 2
12 R52-2860 52-2860 Washer - Bed Bar Pivot 4
13 R52-2900 52-2900 Washer - Nylon 4
14 R63-9510 63-9510 Bushing - Rubber For Bed Bar 2
15 R52-2890 52-2890 Bushing - Flanged 2
16 R106-2648-01 106-2648-01 Bed Bar 1
17 R150476 57-4910 Screw - Regular 13
18 R33025-00 33025-00 Locknut - 10mm x 1.5 Jam 2
19 R99-3755 99-3755 Spring - Bed Bar Adjusting 2
20 R99-2098 99-2098 Washer - Bed Bar Adjuster 2
21 R99-2096 99-2096 Screw - Bed Bar Adjustment 2
22 R106-5335 106-5335 Wave Washer - Reel Adjusting 2
23 R106-5344 106-5344 Bushing - Flanged And Keyed 4
24 R106-2619 106-2619 Seal - Strip 1
25 R105-5774 105-5774 Bolt - Shoulder 4
26 R98-0668 98-0668 Nut - Whiz Lock 4
27 R105-5799 105-5799 Frame 1
28 R99-2097 99-2097 Detent - Bed Bar Adjuster 2
29 R3255-8 3255-8 Washer - Lock 5/16 Ext 2
30 R33114-010 33114-010 Bolt - Hex Hd M8-1.25 x 10 2
31 R106-6921 106-6921 Shaft - Bed Bar Adjustment Assy 2
31 R106-5363 106-5363 Shaft - Adjusting - Bed Bar 2
32 R106-6924-03 106-6924-03 Cut-Off Bar 1
33 R110-3986 110-3986 Screw - M6 x 1.0 x 20mm 4
33 R56-6380 56-6380 Use R110-3986
34 R33003-00 33003-00 Hex Nut - Flanged 6-1.0mm 4
35 R105-5711 105-5711 Shim - Roller 2
36 R105-5710 105-5710 Spacer - Roller 2
37 R105-5712 105-5712 Retainer - Roller 2
38 R106-2603 106-2603 Bolt - Shoulder M6-1.0 x 45 4
39 R106-2635 106-2635 Screw - Hoc 2 7/16 2
39 R110-7352 110-7352 Screw - Hoc 2 5/8 2
40 R106-4668 106-4668 Locknut - 10mm x 1.5 Top Lock 2
41 R104-2603 104-2603 Washer - Hoc Bracket 2
42 R105-5342 105-5342 Use R150647 2
42 R150647 105-5342 Plow Bolt - Hoc - Front Roller 2
43 R33113-012 33113-012 Use R48-7610
43 R48-7610 33113-012 Bolt - Hex Hd Nyloc M6 x 12 2
44 R99-3781 99-3781 Bracket - Front Roller 5 Oal 2
44 R107-3502 107-3502 Bracket - Front Roller 5 1/4 Oal 2
44 R110-7351 110-7351 Arm - Hoc 5 1/4 Oal 2
45 R106-6929 106-6929 V-Ring - Reel 2
46 R93-2489 93-2489 Bearing - Reel 2
47 R106-2607 106-2607 O-Ring - Reel 1
48 R106-6926 106-6926 Inner Seal - Reel 2
49 R94-4507 94-4507 Coupling - Reel 1
50 R106-6927 106-6927 Speedi-Sleeve - Reel 2
51 R105-5700 105-5700 Wave Washer - Reel Bearing 1
52 R150485 2410-30 Cap - Protective Bearing Housing 1
53 R94-3559 94-3559 Screw - Hex Socket Head 2
54 R104-9447 104-9447 Adapter - Motor 1
55 R105-5775 105-5775 Retaining Ring - Reel Coupling 1
56 R105-5706 105-5706 Locknut - Reel 2
57 R253-134 253-134 Outer Seal - Reel 2
58 R105-5797 105-5797 Side Plate - RH 1
59 R105-5795 105-5795 Side Plate - LH 1
60 R106-6914 106-6914 Snap Ring - Internal 1
61 R105-5709 105-5709 Weight 1
62 R33114-040 33114-040 Screw - Hh M8-1.25 x 40 CL8.8 2
63 R105-5708 105-5708 Plug - Expansion 1
64 R70-1350 70-1350 Spacer - 1/4 Fits Groomer Shaft 84
65 R95-5719 95-5719 Blade - Groomer 41
66 R94-2958 94-2958 Stud - Alloy Ball Joint 2
67 R3254-6 3254-6 Washer - Lock 3/8 2
68 R105-5775 105-5775 Retaining Ring - Reel Coupling 1
69 R106-2633 106-2633 Bolt - Hex Washer M10-1.5 x 16 2
70 R32120-93 32120-93 Snap Ring - Hd Fits Reel Shaft 2
71 R104-0532 104-0532 Washer - Pulley
